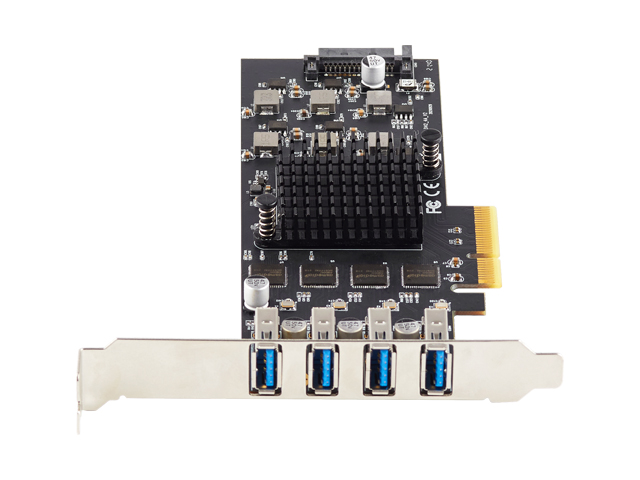

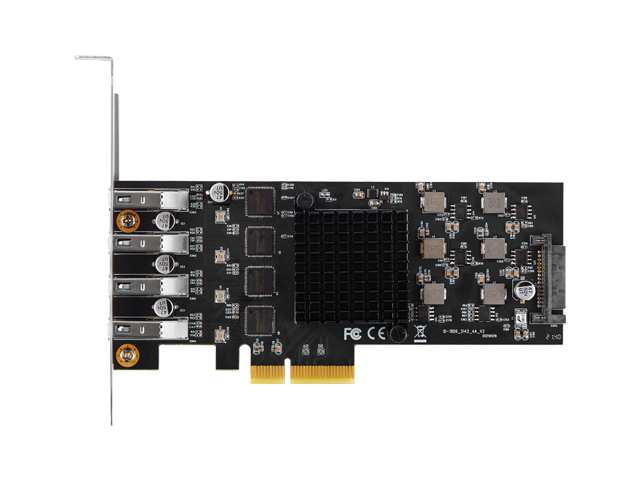

PCIe x4 to 4 USB3.2 Gen1 Type-A Host Controller Card,IO-PCE3042A-4I

PCI-Express 2.0x4,Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s，Support USB Battery Charging Specification Revision 1.2.

Model：

IO-PCE3042A-4I

Input Interface：

PCIe

Output Interface：

USB

Motherboard Slot：

PCIeX4，X8，X16

Transmission Rate:

5Gbps

Auxiliary Accessories:

Low Profile Bracket

Product Size:

149 x 67mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• PCI-Express 2.0x4
• Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s
• Support USB Battery Charging Specification Revision 1.2
• Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Supports the following speed data rates as follows:
• Low-speed (1.5Mbps) /Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Supports 4 downstream ports for all speeds
• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
• 5V/900mA power output for Type A port
System Requirements
• Windows 8.x / 10 (X86/X64) (Windows in-box driver)
• Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
• Mac OS
Package Contents
1 × PCIe to 4 USB3.2 Gen1 Type-A Host Controller Card
1 × User Manual

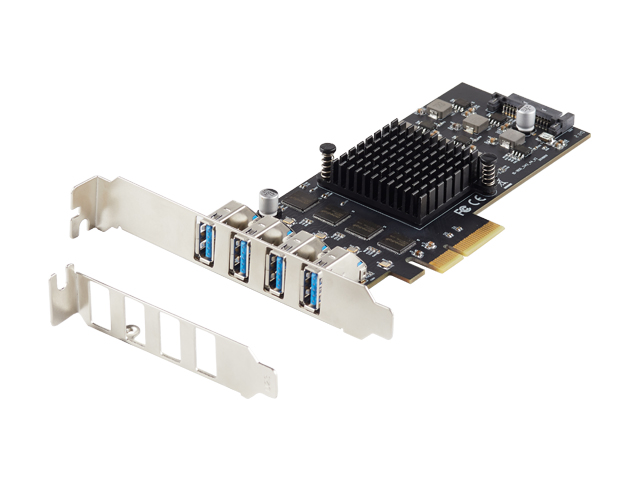

1 × Low Profile Bracket

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
