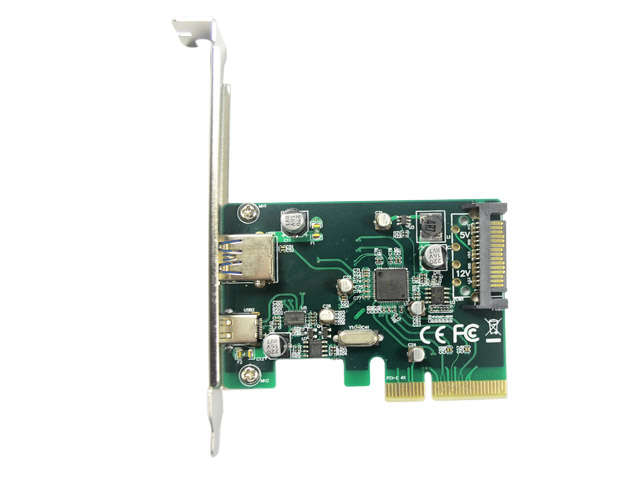

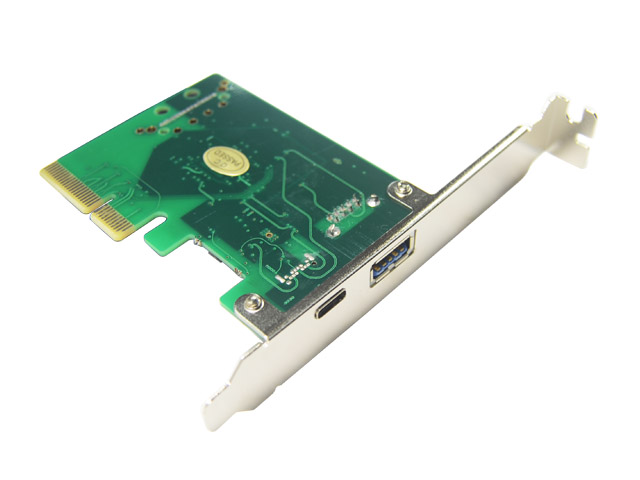

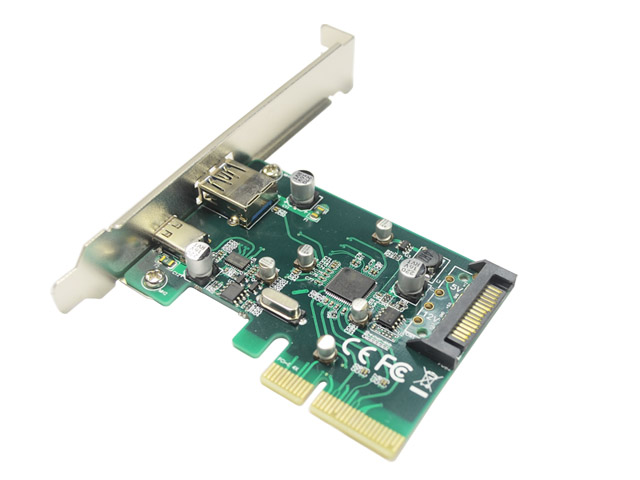

PCIe to USB3.1 Type-A + USB-C Host Controller,IO-PCE1142-1AC

Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices,Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps, 2 External USB 3.1 Receptacles.

Model：

IO-PCE1142-1AC

Input Interface：

PCIe

Output Interface：

USB

Motherboard Slot：

PCIe

Transmission Rate:

10G/5G/480/12/1.5 Mbps

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• PCI Express Base Specification Revision 2.0 dual-lane (x2)
• Compliant with Universal Serial Bus 3.1 specification Gen2
• Compliant with USB Attached SCSI Protocol Revision 1.0
• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
• 2 External USB 3.1 Receptacles
• Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
• Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps
• Expands single external USB3.1 Super-Speed+ Type-C port (DFP) on the system
• 5V/3000mA power output for Type C port
• 5V/900mA power output for Type A port
• A type c female, an external USB3.1 interface and internal SATA power
• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Built-in over current protection on each USB port
• Support device remote wakeup function from USB keyboard or mouse
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Operation Temperature ：0 to 60°C (32 to 140°F)
• Storage Temperature：-20 to 70°C (-4 to 158°F)
• Operation Humidity：5 to 95% RH

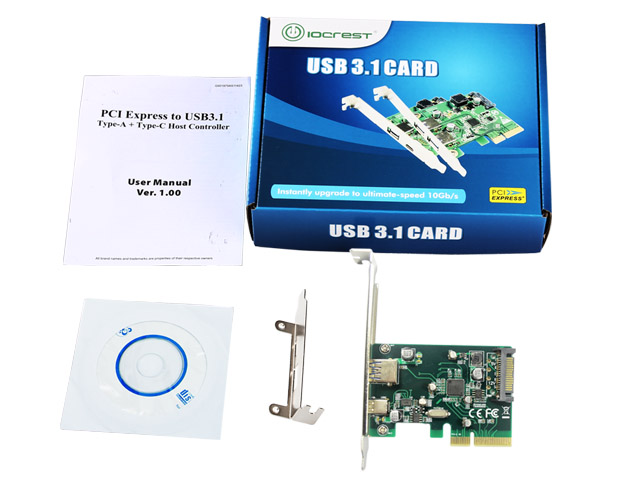

Package Contents
• 1 × PCI Express to USB3.1 Type-A + USB-C Host Controller Card
• 1 × User Manual
• 1 × Driver CD
• 1 x Low Profile Bracket
System Requirements:
• Windows 7 (X86/X64)
• Windows 8.x / 10 (X86/X64) (Windows in-box driver)
• Support Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
