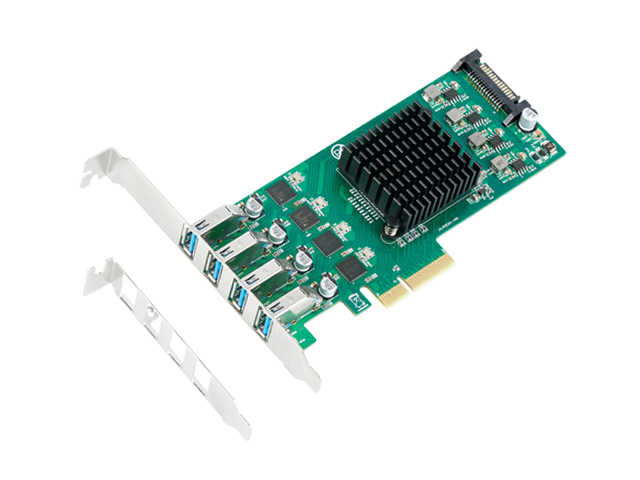

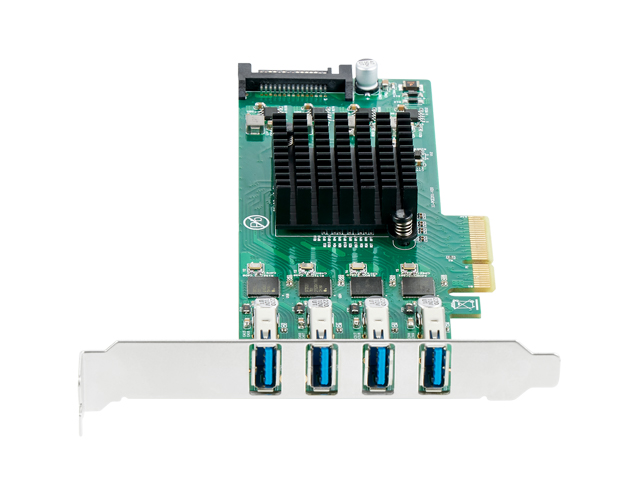

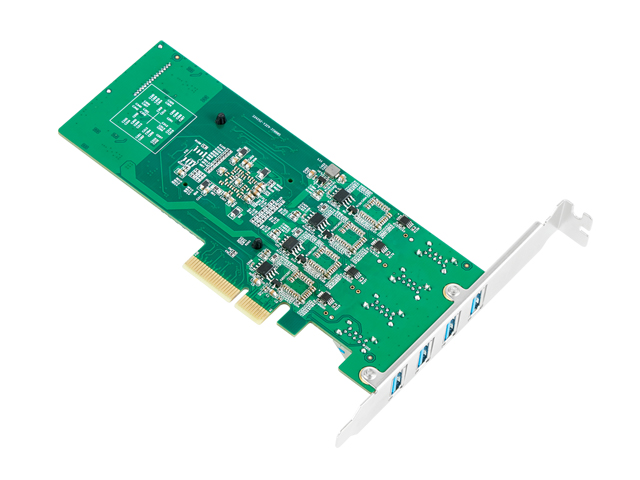

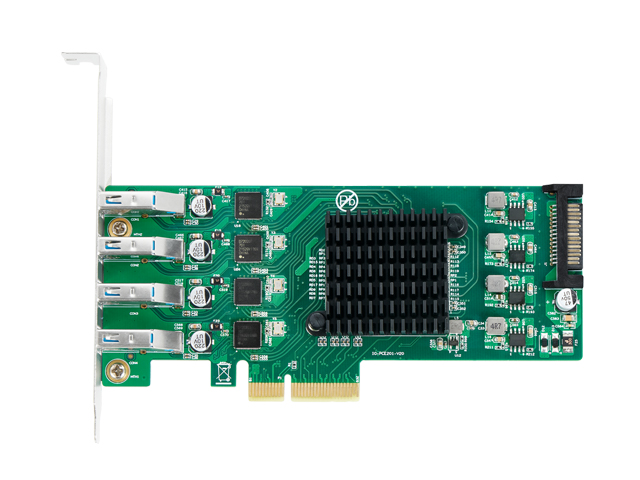

PCIe2.0 x4 to 4 port USB3.0 Host Controller Card,IO-PCE7201-4I

PCIe2.0 x4 to 4 port USB3.0 Host Controller Card,Supports the following speed data rates as follows:Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps).

Model：

IO-PCE7201-4I

Input Interface：

PCIe

Output Interface：

USB

Motherboard Slot：

PCIeX4，X8，X16

Transmission Rate:

5Gbps

Auxiliary Accessories:

Low Profile Bracket

Product Size:

149.1x67mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Supports PCI Express Card Electromechanical Specification Revision 2.0
• Supports PCI Bus Power Management Interface Specification Revision 1.2
• Supports USB Battery Charging Specification Revision 1.2
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0, which is released by USB
• Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
• Supports all USB compliant data transfer types as follows; Control / Bulk / Interrupt / Isochronous transfer
• Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports USB debugging capability on all super-speed ports
• Supports USB legacy function.
• Supports ExpressCardTM Standard Release1.0
• Supports 4 downstream ports for all speeds
• Built-in 15-pin power connector for receiving extra power supply from system
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
• 4 sets of power modules can shield electromagnetic interference to ensure the integrity and stability of data transmission
System Requirement
• Windows ,Linux, MAC OS 10.8 or above

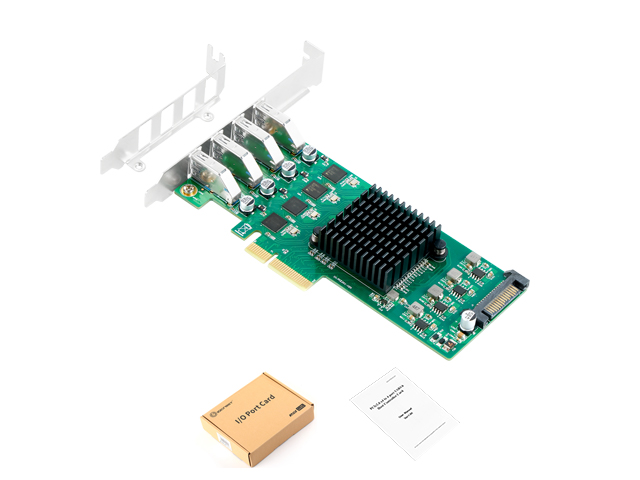

Package Content
• 1 x PCIex4 to 4 Port USB 3.0 Host Controller Card
• 1 x User Manual
• 1 x Low Profile Bracket
Note: Contents may vary depending on country/market

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
