M.2 to USB 3.2 Gen2 Host Controller Card,IO-M2F3142-1C

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0,Compliant with Universal Serial Bus Specification Revision 2.0,Support USB3.1 and USB2.0 Link Power Management,Up to USB3.1 Gen-II 10Gbps.

Model：

IO-M2F3142-1C

Input Interface：

M.2

Output Interface：

USB

Motherboard Slot：

M.2

Transmission Rate:

10Gbps

Auxiliary Accessories:

2-pin Power cable

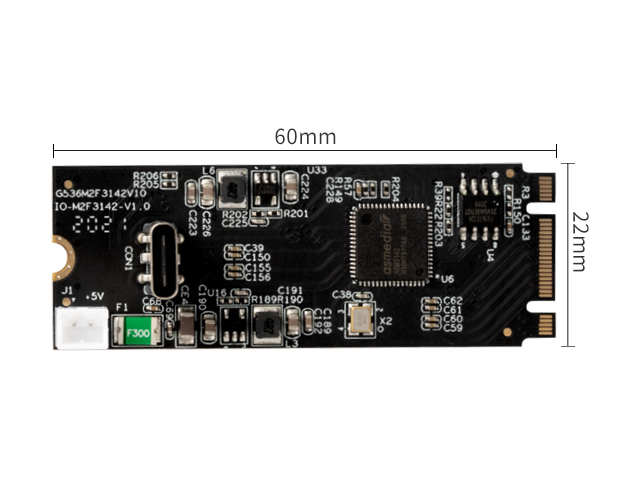

Product Size:

22*60mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
• Compliant with Universal Serial Bus Specification Revision 2.0
• Compliant with USB Attached SCSI Protocol Revision 1.0
• Support Muliple INs function
• Support USB3.1 and USB2.0 Link Power Management

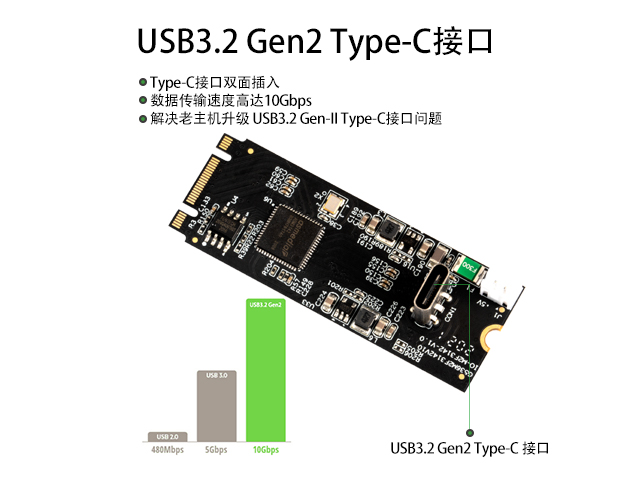

• Up to USB3.1 Gen-II 10Gbps
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Support independent port power control
• Support overcurrent detection
• Support Remote/Wakeup event
• Integrate Spread Spectrum Controller for USB3.1 interface
• Backward compatible with Legacy USB function and device
• Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps

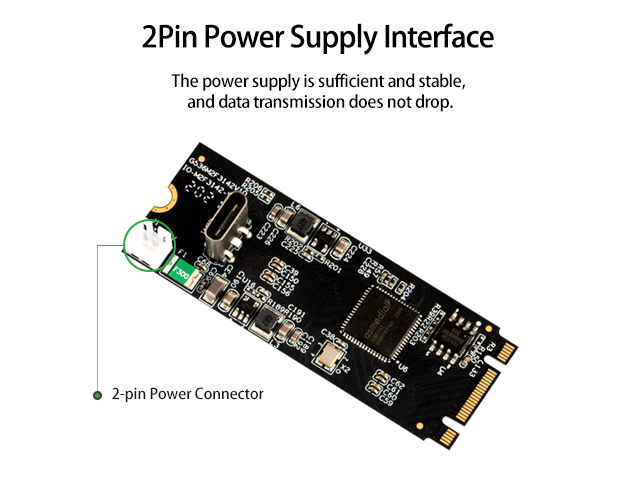

• Power Input: 2-pin Power Connector

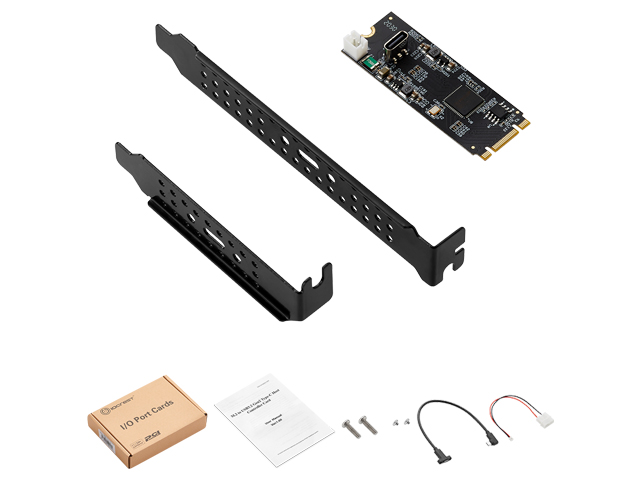

Package Contents

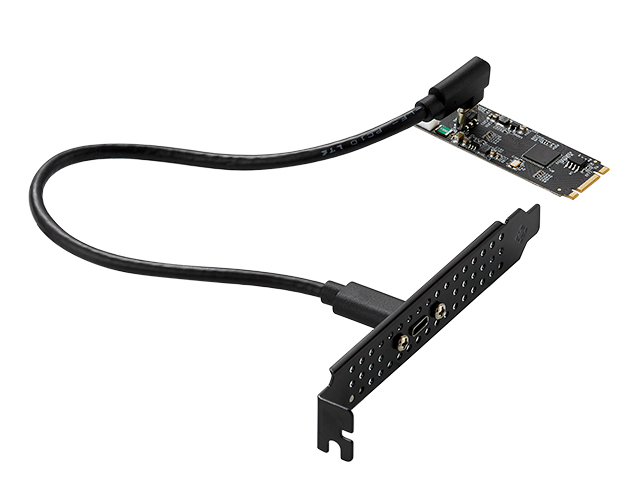

• 1 × M.2 to USB3.2 Gen2 Type-C Host Controller Card
• 1 × User Manual
• 1 × Screws(M.2)

• 1 × 2-pin Power cable

• 2 ×Profile Bracket
System Requirements
• Windows 8 and above (Windows in-box driver)
• Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
