PCIe3.0x4 to 4 Ports USB3.0 Host Controller Card,IO-PCEUSB3.0-4U

Provides four independent USB 3.0 ports with a total bandwidth of 20Gbps,Up to 5Gbps transfer rate per USB 3.0 interface,4 external USB3.0 ports, 10x faster than USB2.0,Supports x4, x8, x16 (lane) PCI Express Bus connector keys.

Model：

IO-PCEUSB3.0-4U

Input Interface：

PCIe3.0 x 4

Output Interface：

USB

Motherboard Slot：

PCIe

Transmission Rate:

5Gbps

Auxiliary Accessories:

Low Profile Bracket

Product Size:

166.5x68.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

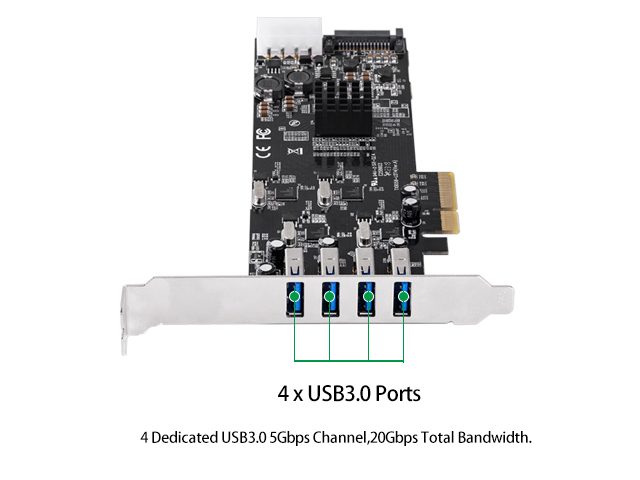

• Provides four independent USB 3.0 ports with a total bandwidth of 20Gbps
• Up to 5Gbps transfer rate per USB 3.0 interface
• 4 external USB3.0 ports, 10x faster than USB2.0

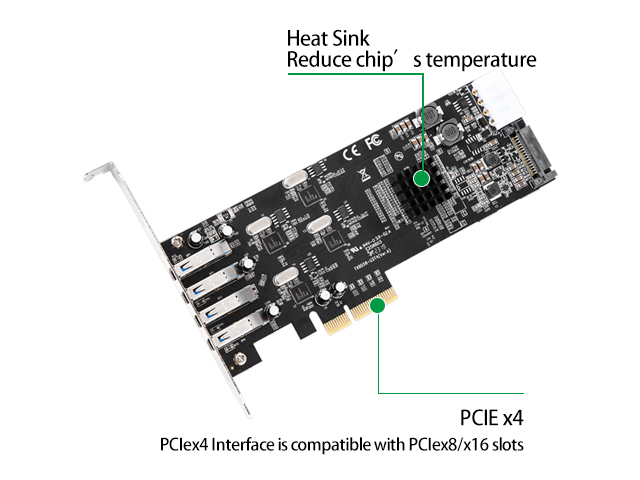

• Supports x4, x8, x16 (lane) PCI Express Bus connector keys.
• It is a industrial level high performance USB card
• Supports USB debugging capability on all super-speed ports.
• USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1
• Compliant with PCI Express Base Specification Revision 2.0
• Supports PCI Bus Power Management Interface Specification Revision 1.2
• Supports USB data transfer rate of 5G/480/12/1.5 Mbps
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type

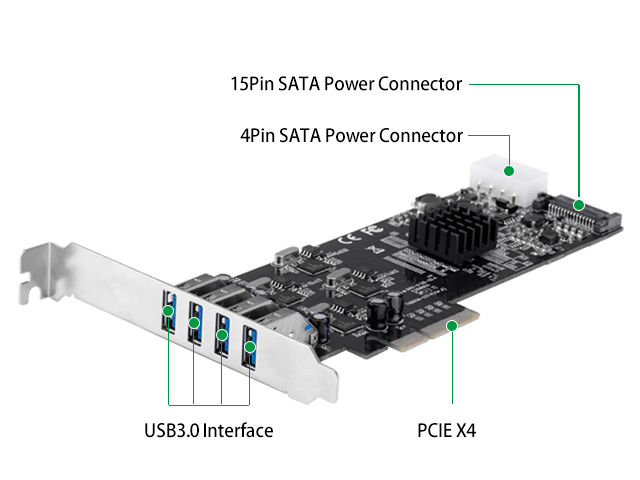

• Power Input: 15-pin SATA CD-ROM Type Power Connector
• Plug and play installation
• Operating Temperature: 0 ℃-60 ℃
• Relative Humidity: 10%-90%(non-condensing)
• Storage Temperature: -20℃-80℃
• Relative Humidity: 5%-90%(non-condensing)

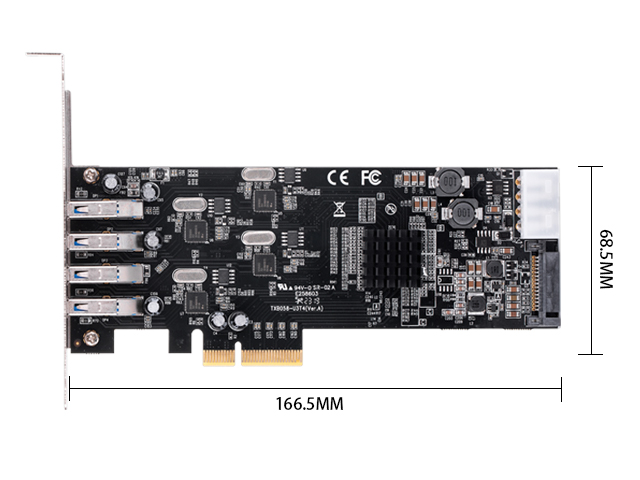

• Dimension：166.5*68.5mm

System Requirements
• Windows10、8 /、8.1、7、Vista、XP、2000
• WindowsServer2012、2008 R2、2003
• MacOS10.x
• Linux 2.6.31 or later

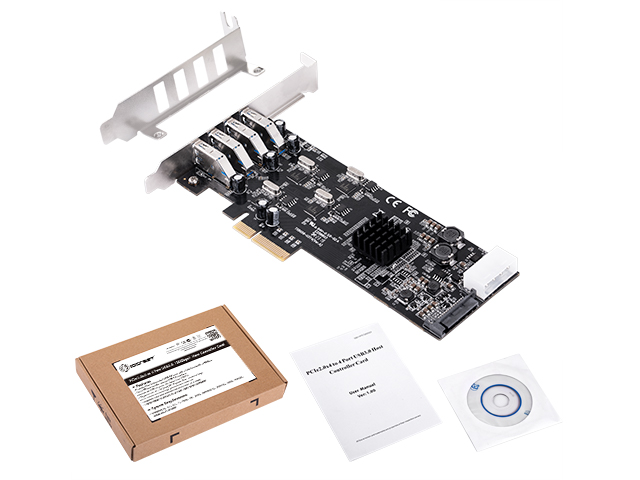

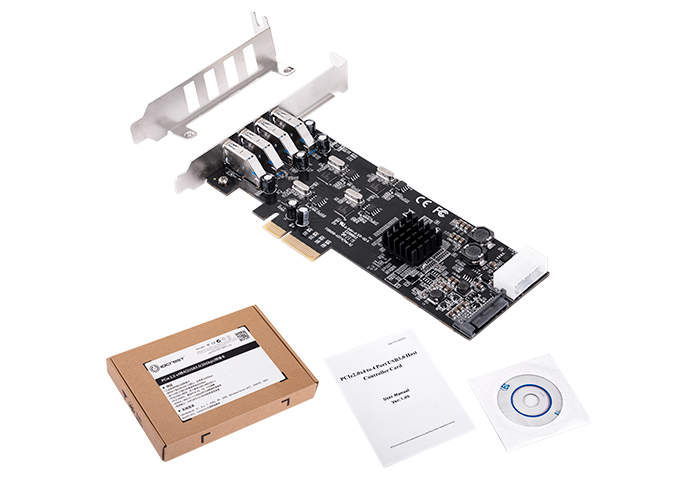

Package Contents
• 1 × PCIe to 4 Ports USB3.0 Card
• 1 × User Manual
• 1 × Low Profile Bracket

• 1 × Driver CD

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
