PCIe2.0x1 to 4 Ports USB3.0 Host Controller Card,IO-PCEU3G-4U_Shenzhen MMUI CO.,Ltd

微信二维码

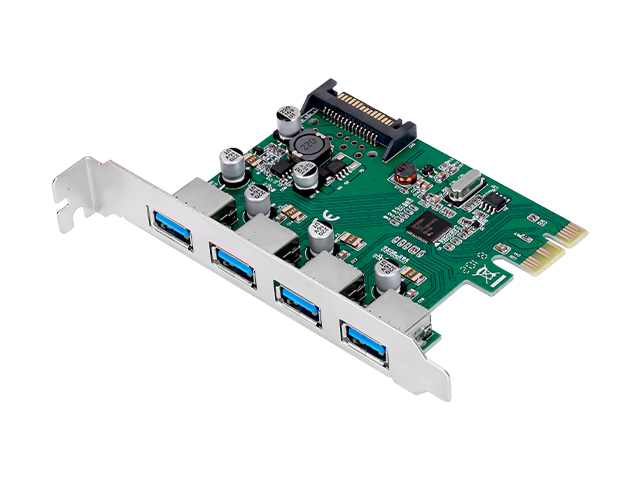

PCIe2.0x1 to 4 Ports USB3.0 Host Controller Card,IO-PCEU3G-4U

Supports the following data transfer rate:USB 2.0 mode up to 480 Mbps,USB 3.0 mode up to 5 Gbps,Power Input: 15-pin SATA CD-ROM Type Power Connector ,Max. 5V/900mA power output to each USB 3.0 Port(with PSU connected).

Model：

IO-PCEU3G-4U

Input Interface：

PCIe

Output Interface：

USB

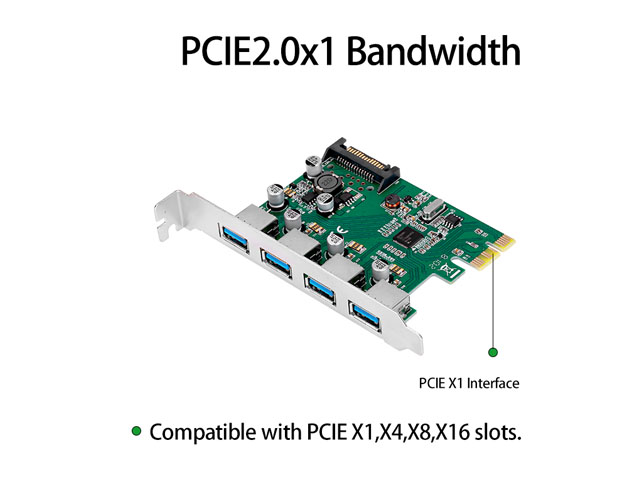

Motherboard Slot：

PCIeX1,X4,X8,X16

Transmission Rate:

5Gbps

Auxiliary Accessories:

User Manual

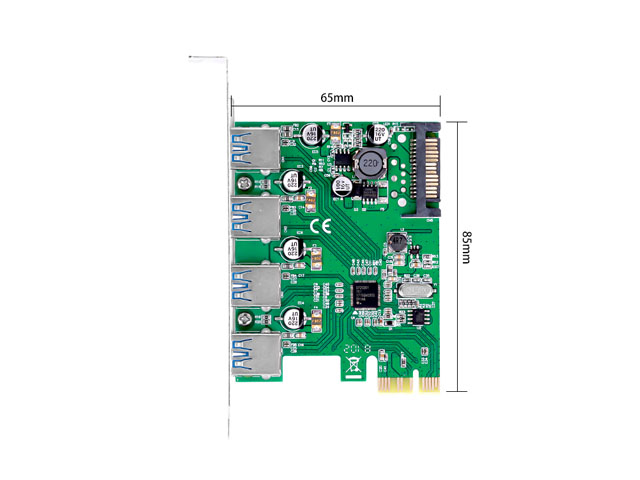

Product Size:

65x85mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

•Complies with PCI Express Base Specification Revision 2.0

•Complies with Universal Serial Bus 3.0 specification Revision 1.0

•Backward compatible to USB 2.0 and PCI-Express 1.0

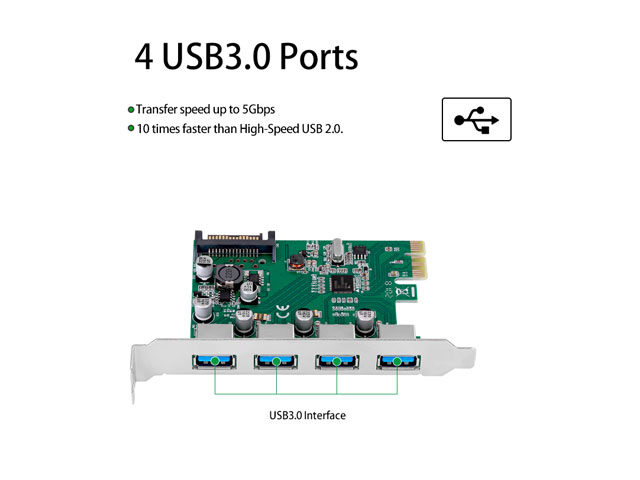

•Supports the following data transfer rate:

- USB 2.0 mode up to 480 Mbps

- USB 3.0 mode up to 5 Gbps

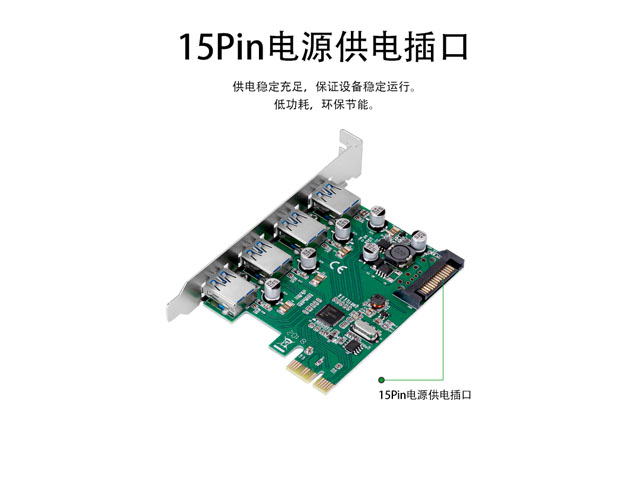

•Power Input: 15-pin SATA CD-ROM Type Power Connector

•Max. 5V/900mA power output to each USB 3.0 Port(with PSU connected)

•Working temperature: 0-70°C

System Requirements

•Windows OS

•Linux OS

•MAC

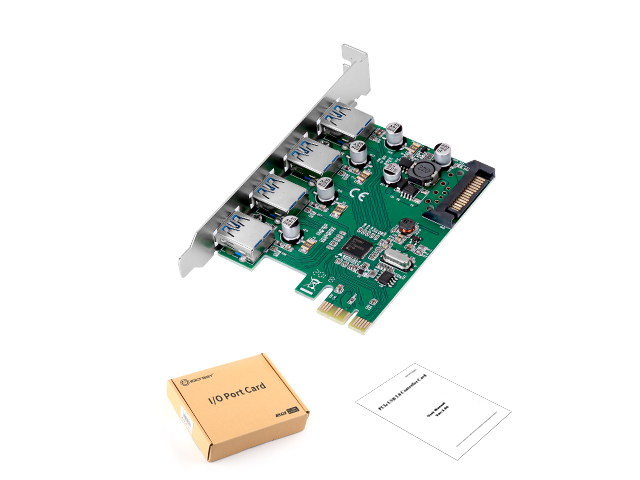

Package Contents

•1 x USB 3.0 PCI-Express Card

•1 x User Manual

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
