USB-C Thunderbolt 3 to 10 Gigabit Network Adapter,IO-TBT3-T1

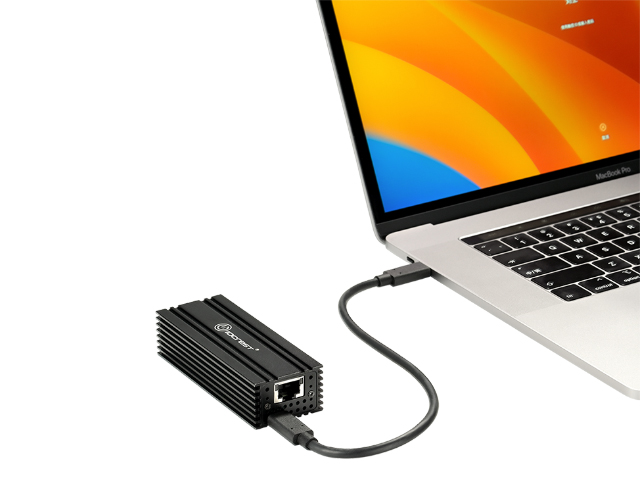

Adds an RJ45 10 Gigabit Ethernet port to your computer with Thunderbolt 3 ports. Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain.

Model：

IO-TBT3-T1

Input Interface：

USB-C Thunderbolt 3

Output Interface：

RJ45

Motherboard Slot：

USB

Transmission Rate:

10G

Auxiliary Accessories:

Thunderbolt™ 3 Cable

Product Size:

102.7x40.4x25.6mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
•USB Type-C and Thunderbolt™3 technology: One port to connect them all
•NBASE-T Alliance draft specification compliant
•10G/5G/2.5G/1000M/100M auto negotiation support
•Supports Jumbo frame (9K)
•Supports IEEE 802.3ad Link Aggregation.
•Full IEEE Std P802.3bz specification compliant
•Full IEEE Std 802.3ae Compliant
•Supports IEEE 802.3az (EEE)
•Supports IEEE 802.1q VLAN
•RFC2819 RMON MIB statistics
•Support Virtual NIC
•Operating Temperature:0ºC to 70ºC
•Storage Temperature:-40ºC to 85ºC

System Requirement
•Windows Server 2008R2,2012R2,2016
•Windows 7,8,8.1,10 32 and 64-bit systems
•Linux Linux 4.x (with Thunderbolt™ 3 supported kernel)
•Apple mac OS 10.12

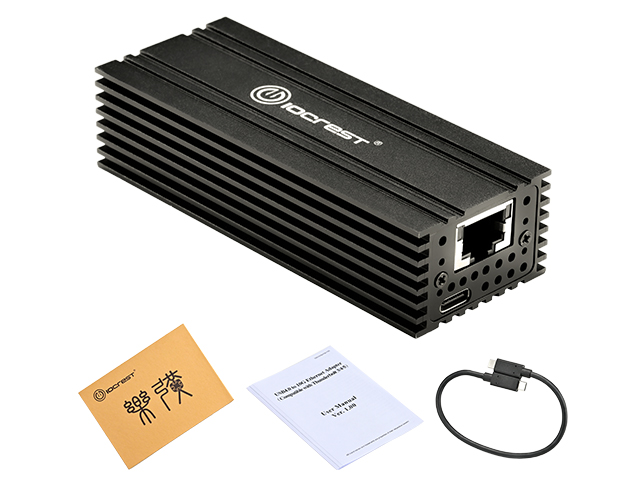

Package Content
•1 x Multi-speed 10GBase-T / NBASE-T (™) to Thunderbolt™ 3 Adapter
•1 x User Manual
•1 x Software Driver CD
•1 x Thunderbolt™ 3Cable

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
