Features
•Integrated 10/100/1000M transceiver
•Supports USB 3.0, 2.0, and 1.1
•Supports CDC-ECM
•Supports LPM (Link Power Management)
•Supports pair swap/polarity/skew correction
•Crossover Detection & Auto-Correction
•Supports Wake-On-LAN and ‘RealWoW!’
•Supports power down/link down power saving
•Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compliant with IEEE 802.3 and IEEE 802.3u
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
Microsoft AOAC (Always On Always Connected)
• Supports 16-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up
• Supports Microsoft WPD (Wake Packet Detection)
• Supports Protocol Offload (ARP & NS)
Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0)
• Dynamic LTM messaging (USB 3.0)
• Supports U1/U2 (USB 3.0)
• Supports selective suspend
System Requirements
•Windows Server 2003,2012, XP , Vista ,7,8,10, 32 and 64 bit
•Windows Server 2008 32_bit
•Linux, and Mac
One available USB port
Applications
•USB 10/100/1000M Ethernet on Motherboard, Dongle, Notebook, Docking station, or Embedded sy

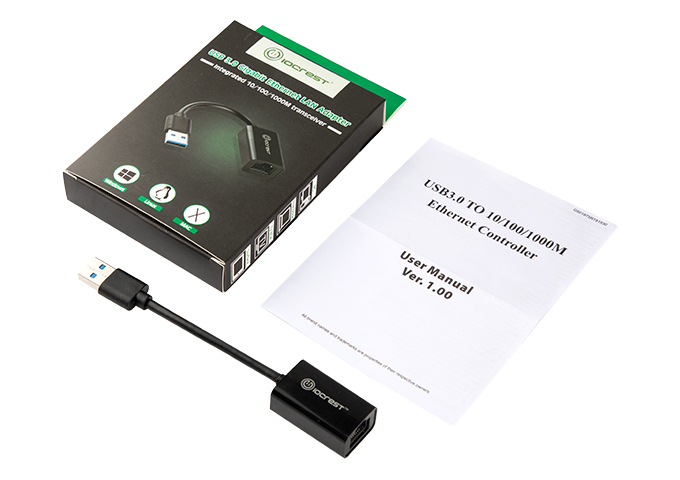

Package Contents

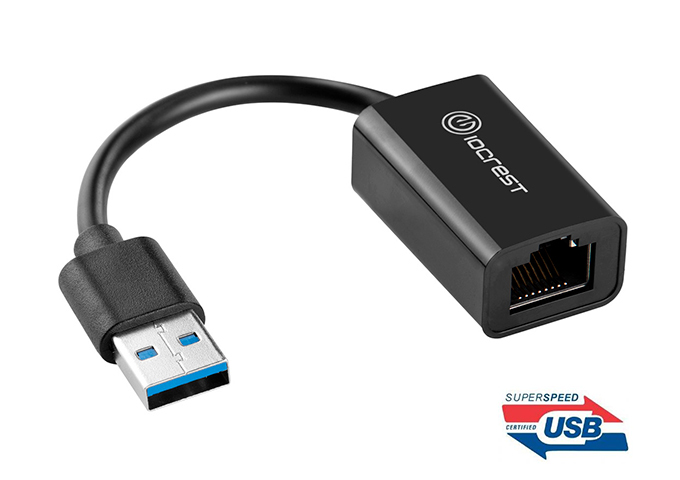

1x USB 3.0 Ethernet Adapter
1x Quick Installation Guide
