USB3.0 to Single Port Gigabit Ethernet Network Adapter,IO-USB8153D-GLAN

Use a RTL8153 chipset controller combines an IEEE 802.3u compliant Media Access Controller (MAC). The RTL8153 offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable.

Model：

IO-USB8153D-GLAN

Input Interface：

USB 3.0

Output Interface：

RJ45

Motherboard Slot：

USB

Transmission Rate:

10/100/1000Mbps

Auxiliary Accessories:

Product Size:

37x22.4x15.6mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Integrated 10/100/1000M transceiver
• Supports USB 3.0, 2.0, and 1.1
• Supports CDC-ECM
• Supports LPM (Link Power Management)
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports Wake-On-LAN and ‘RealWoW!’
• Supports power down/link down power saving
• Supports hardware CRC (Cyclic Redundancy Check) function
IEEE
• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compliant with IEEE 802.3 and IEEE 802.3u
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
Microsoft AOAC (Always On Always Connected)
• Supports 16-set 128-byte Wake-Up Frame pattern exact matching
• Supports link change wake up
• Supports Microsoft WPD (Wake Packet Detection)
• Supports Protocol Offload (ARP & NS)
• Intel CPPM (Converged Platform Power Management)
• Supports L1 with 3ms BESL (USB 2.0)
• Dynamic LTM messaging (USB 3.0)
• Supports U1/U2 (USB 3.0)
• Supports selective suspend

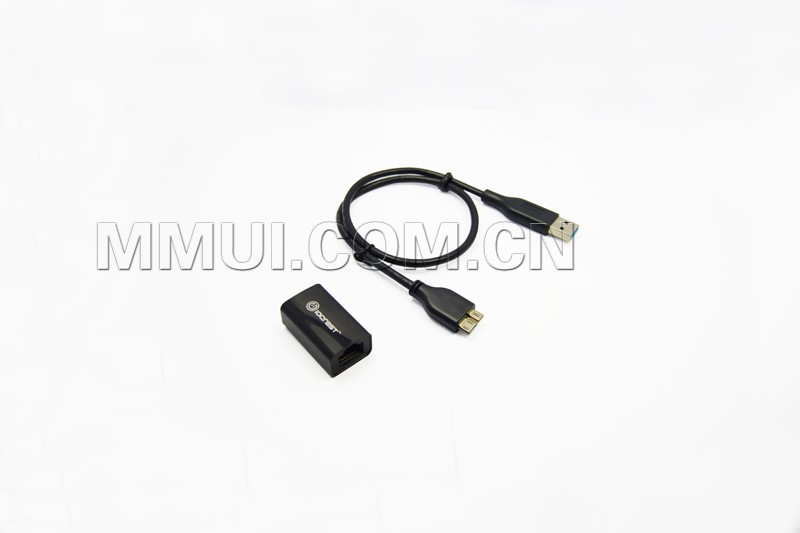

Package Contents
• 1x USB 3.0 Ethernet Adapter
• 1x Quick Installation Guide

• 1x USB3.0 cable

System Requirements
• Windows Server 2003,2012, XP , Vista ,7,8,10, 32 and 64 bit
• Windows Server 2008 32_bit
• Linux, and Mac
• One available USB port

Applications
• USB 10/100/1000M Ethernet on Motherboard, Dongle, Notebook, Docking station, or Embedded system

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
