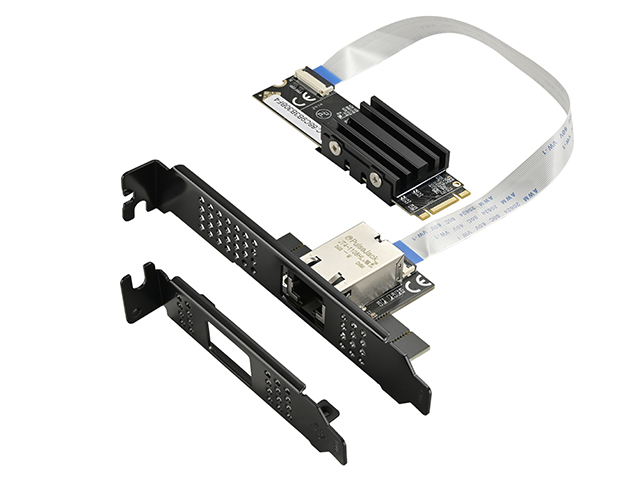

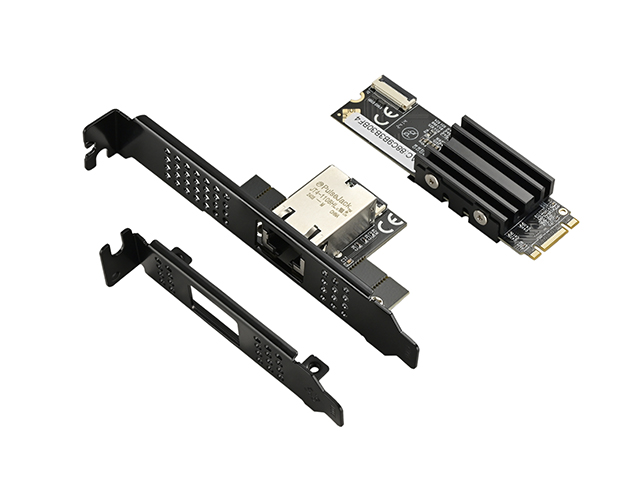

M.2 to Single 10G Ethernet Network Adapter,IO-M2F1131-GLAN

Supports bus widths: Gen4 x1, Gen3 x4, x2, x1,Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane,Tiny daughter board with high speed shielding cable,Jumbo frame support up to 16 KB,Support 10G/5G/2.5G/1000M/100M LAN speed.

Model：

IO-M2F1131-GLAN

Input Interface：

M.2(B+M)Key

Output Interface：

RJ45

Motherboard Slot：

M.2(B+M)Key

Transmission Rate:

10Gbps

Auxiliary Accessories:

connecting cable

Product Size:

61x38mm,22x80mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Supports bus widths: Gen4 x1, Gen3 x4, x2, x1
• Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane

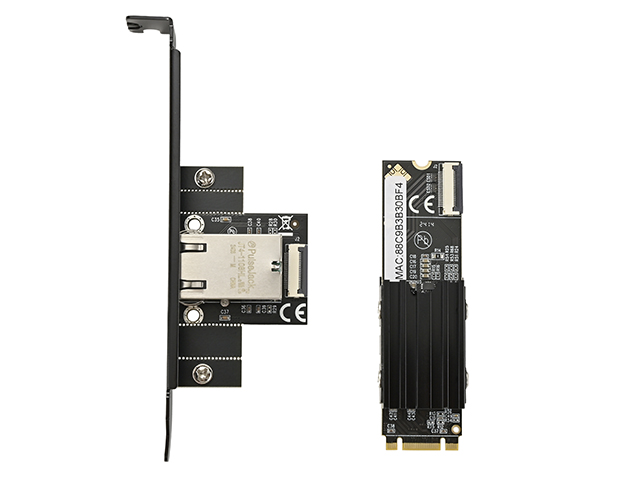

• Tiny daughter board with high speed shielding cable
• Jumbo frame support up to 16 KB
• Support 10G/5G/2.5G/1000M/100M LAN speed
• 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A
• 1.5W typical 5GBASE-T operating power per port
• 1W typical 1GBASE-T operating power per port
• Audio Video Bridging (AVB) and PTP/1588v2
• Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE
• Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts
• Support for the Network Controller Sideband Interface (NC-SI)
• Management Component Transport Protocol(MCTP)
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Support Preboot Execution Environment (PXE)
• FCoE No

• Operation Temperature :0℃ to 85℃ (-32 ℉ to 185 ℉)

• Storage Temperature：-55℃ to 105 ℃ (-67 ℉ to 221 ℉)

• Storage humidity: 90% non condensing relative humidity at 35 ℃

System Requirements
• Windows 10/11

• Windows Server 2022

• RHEL/Centos7.3/7.6/

• RHEL/Centos7.9/8.2/8.3

• Deepin 15.11 /20 /20.6

• Ubuntu 16.04.3 /18.04.5/20.04/22.10/23.10

• Mac OS

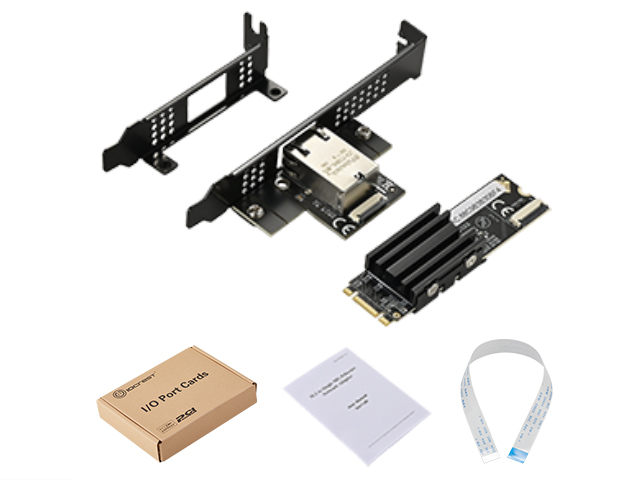

Package Contents
• 1 × M.2 2280 to single 10G Ethernet network adapter
• 1 × User Manual
• 1 × 13pin to 13pin Cable
• 1 x Low Profile Bracket
