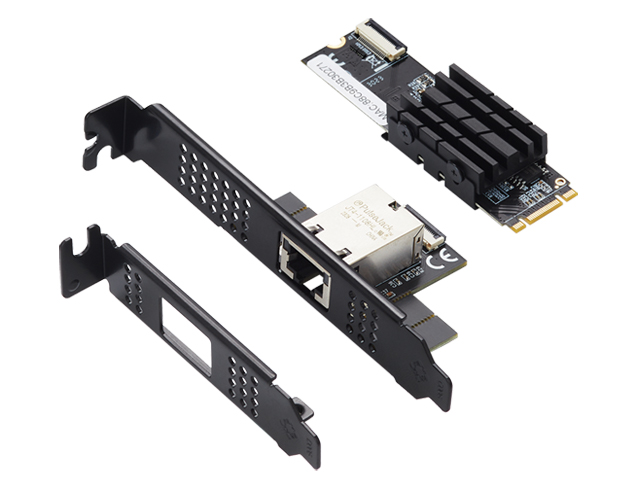

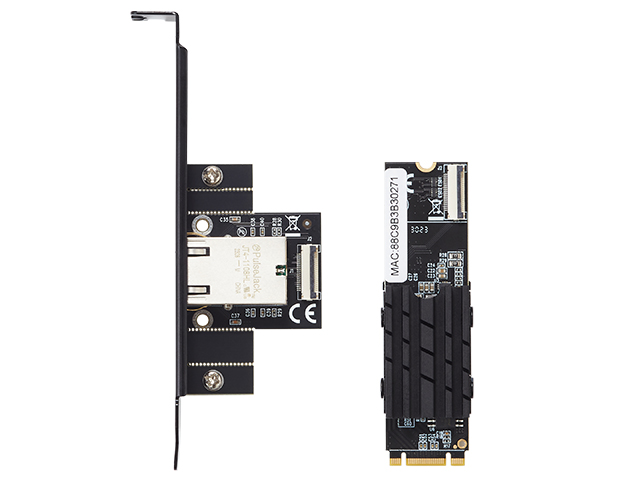

M.2 to Single 10G Ethernet Network Adapter,IO-M2F1071-GLAN

Support x4 PCI Express with Gen3/Gen2 Tiny daughter board with high speed shielding cable，Jumbo frame support up to 16 KB，Power Consumption 4.7W，Support 10G/5G/2.5G/1000M/100M LAN speed.

Model：

IO-M2F1071-GLAN

Input Interface：

M.2(B+M Key)

Output Interface：

RJ45

Motherboard Slot：

M.2(B+M Key)

Transmission Rate:

10Gbps

Auxiliary Accessories:

Low profile bracket

Product Size:

61X38mm,22x80mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Support x4 PCI Express with Gen3/Gen2

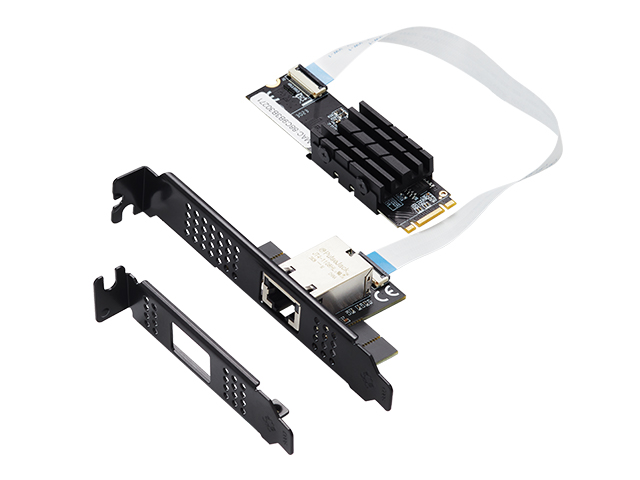

• Tiny daughter board with high speed shielding cable
• Jumbo frame support up to 16 KB
• Power Consumption 4.7W
• Support 10G/5G/2.5G/1000M/100M LAN speed
• Complies with EN61000-4-2 (ESD) Air-15kV, Contact-10kV
• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
• IEEE 802.3bz 2.5/5GBASE-T
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.3x Full Duplex and flow contro
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• iSCSI No
• WoL No
• Jumbo Frames Yes
• DPDK Yes
• PXE Yes
• FCoE No
• Operation Temperature :0°C to +55°C；
• Storage Temperature：-40°C to +85°C
System Requirements
• Windows 7/8/8.1/10
• Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2/2022
• Linux Stable Kernel version 2.6.32/3.x/4.x or later
• Linux CentOS/RHEL 6.5 / 7.x or later
• Ubuntu 14.x/15.x/16.x or later
• VMware ESX/ESXi 4.x/5.x/6.x or later

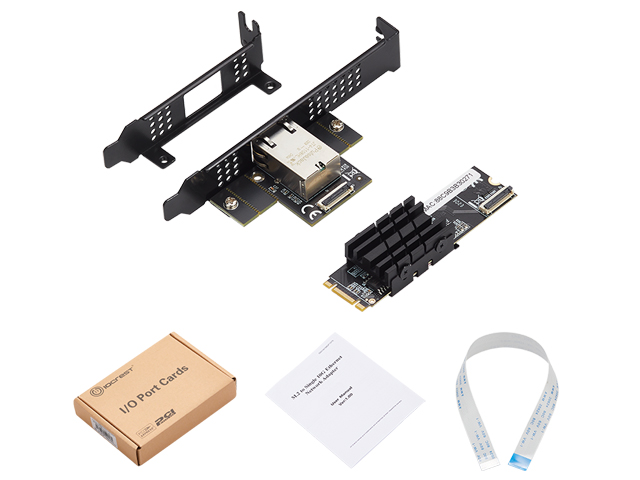

Package Contents
• 1 × M.2 2280 to single 10G Ethernet network adapter
• 1 × User Manual
• 1 × Cable

Note: Contents may vary depending on country/market
