M.2 to 10/100/1000M/2.5G/5G Ethernet Card,IO-M2F8126-GLAN

Compliant with M.2 Key B+M NGFF card Electromechanical Specification，Compatible with M.2 key B/M (2280) Card Electromechanical specification，Supports 1-Lane 2.5/5/8Gbps PCI Express Bus.

Model：

IO-M2F8126-GLAN

Input Interface：

M.2(B+M)Key

Output Interface：

RJ45

Motherboard Slot：

M.2(B+M)Key

Transmission Rate:

5G

Auxiliary Accessories:

12-Pin Network cable，Low-profile bracket

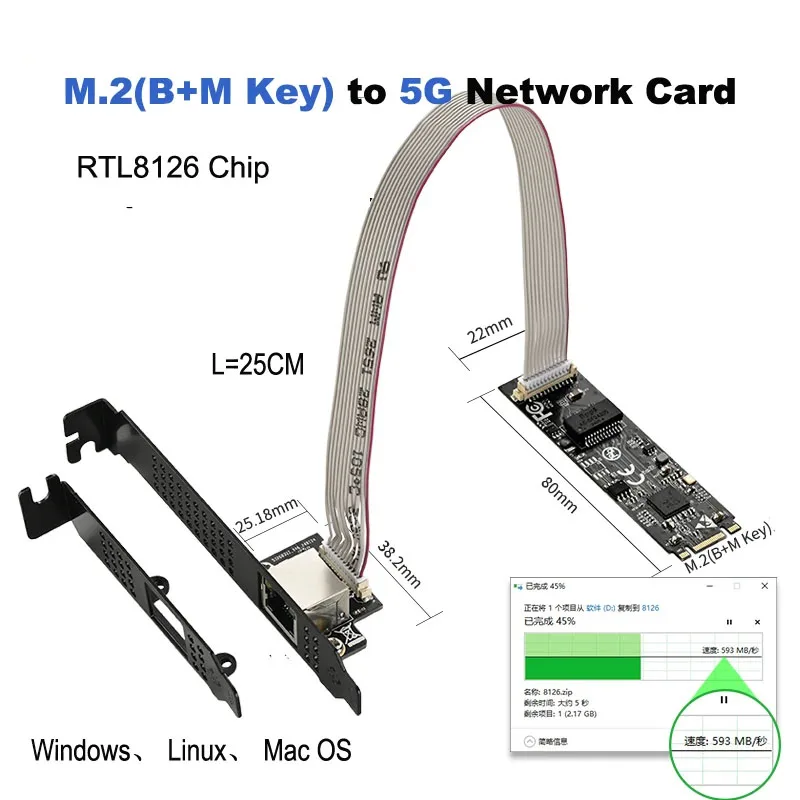

Product Size:

38.2x25.18mm,22x80mm

Alibaba Aliexpress

Product Description

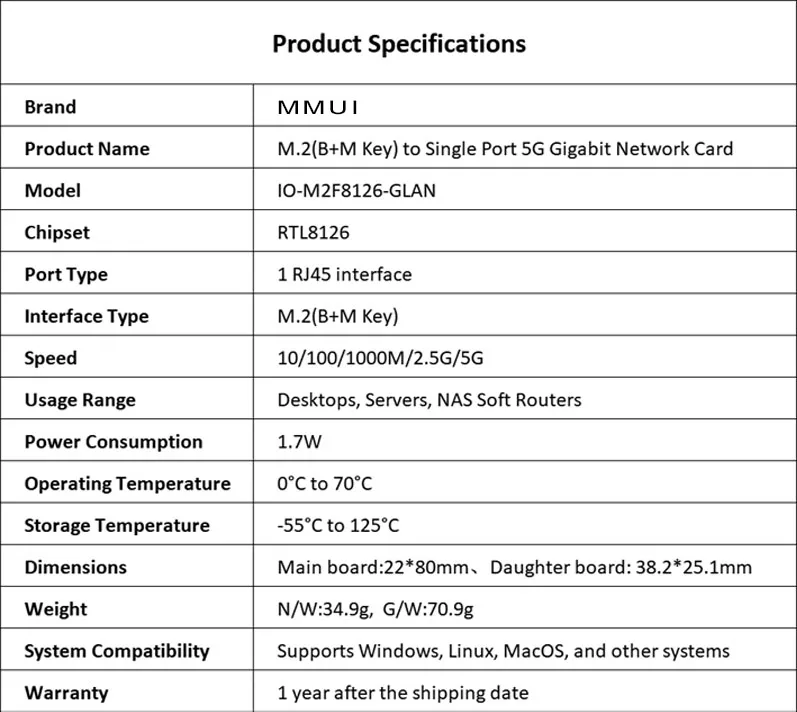

Product specifications

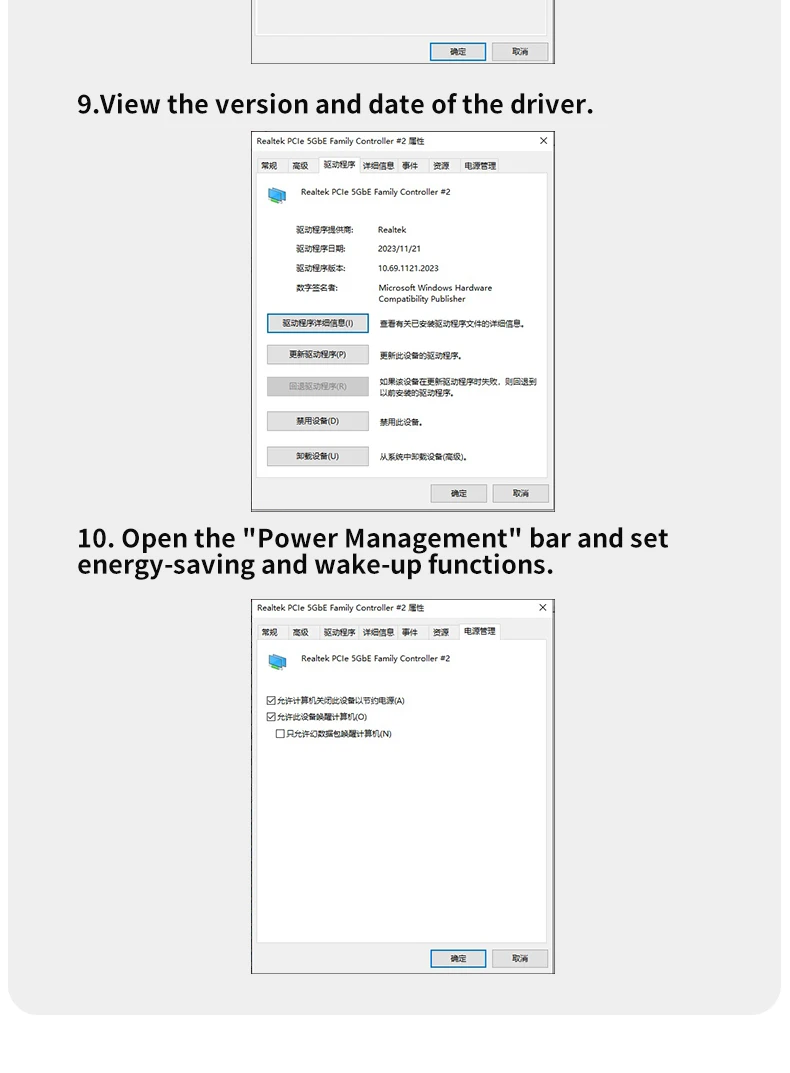

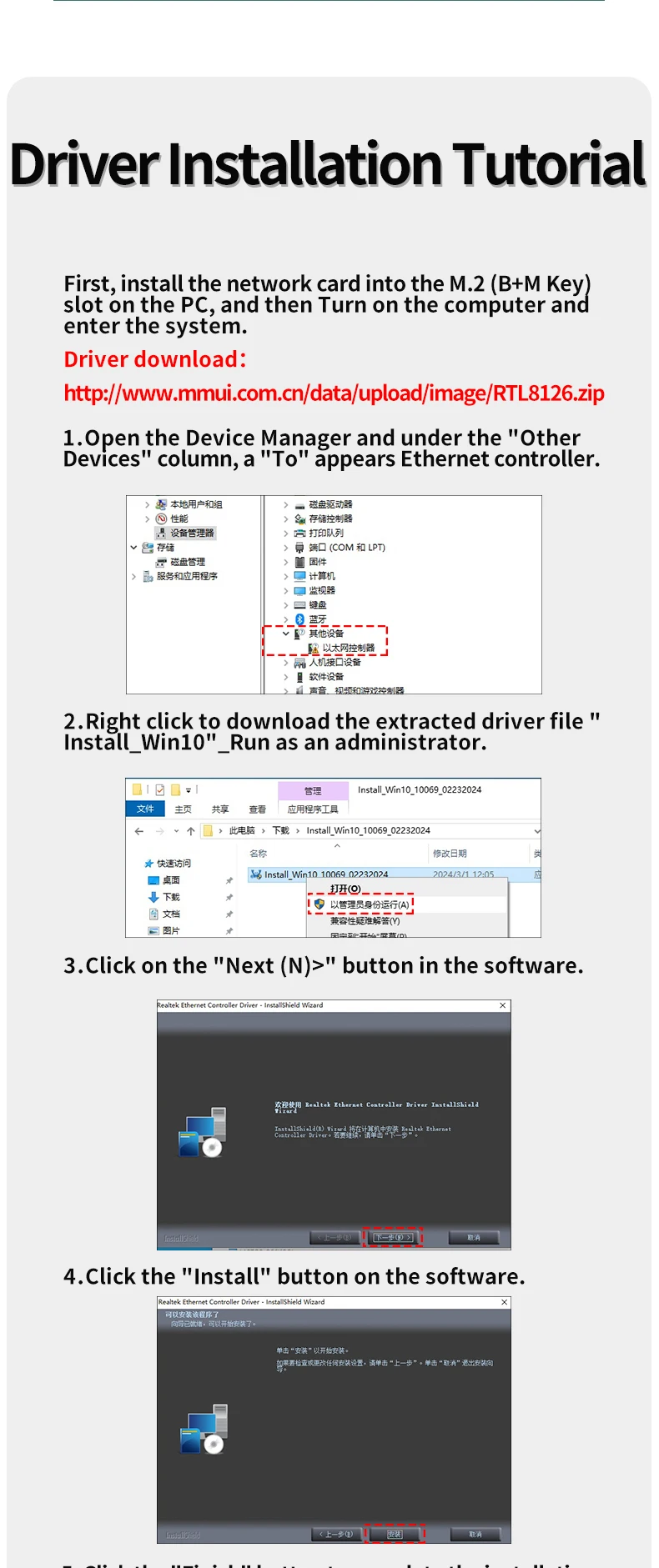

Driver Download

Document Download

Q&A

Features
• Supports PCI Express revision 3.1
• Compliant with M.2 Key B+M NGFF card Electromechanical Specification
• Compatible with M.2 key B/M (2280) Card Electromechanical specification
• Supports 1-Lane 2.5/5/8Gbps PCI Express Bus
• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T TM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports PXE
IEEE
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)•
• Supports IEEE 802.3bz
• Supports IEEE 802.3bz
• Supports jumbo frame to 16K bytes
• Ambient Operating Temperature TA：0~70°C
• Storage Temperature:-55~+125°C
System Requirements
• Windows
• Linux
• MacOS 10.7 or Later

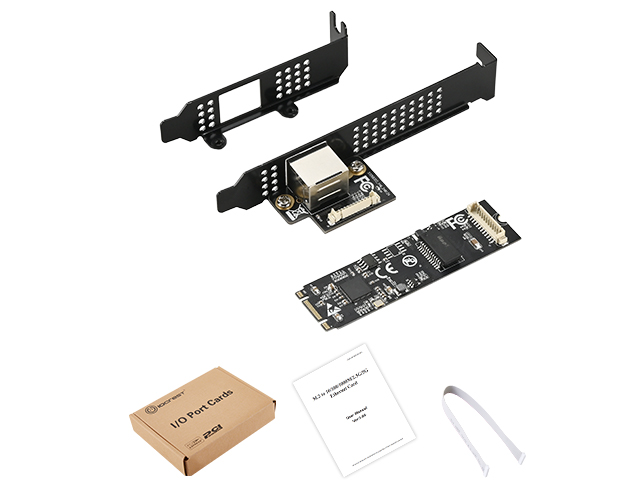

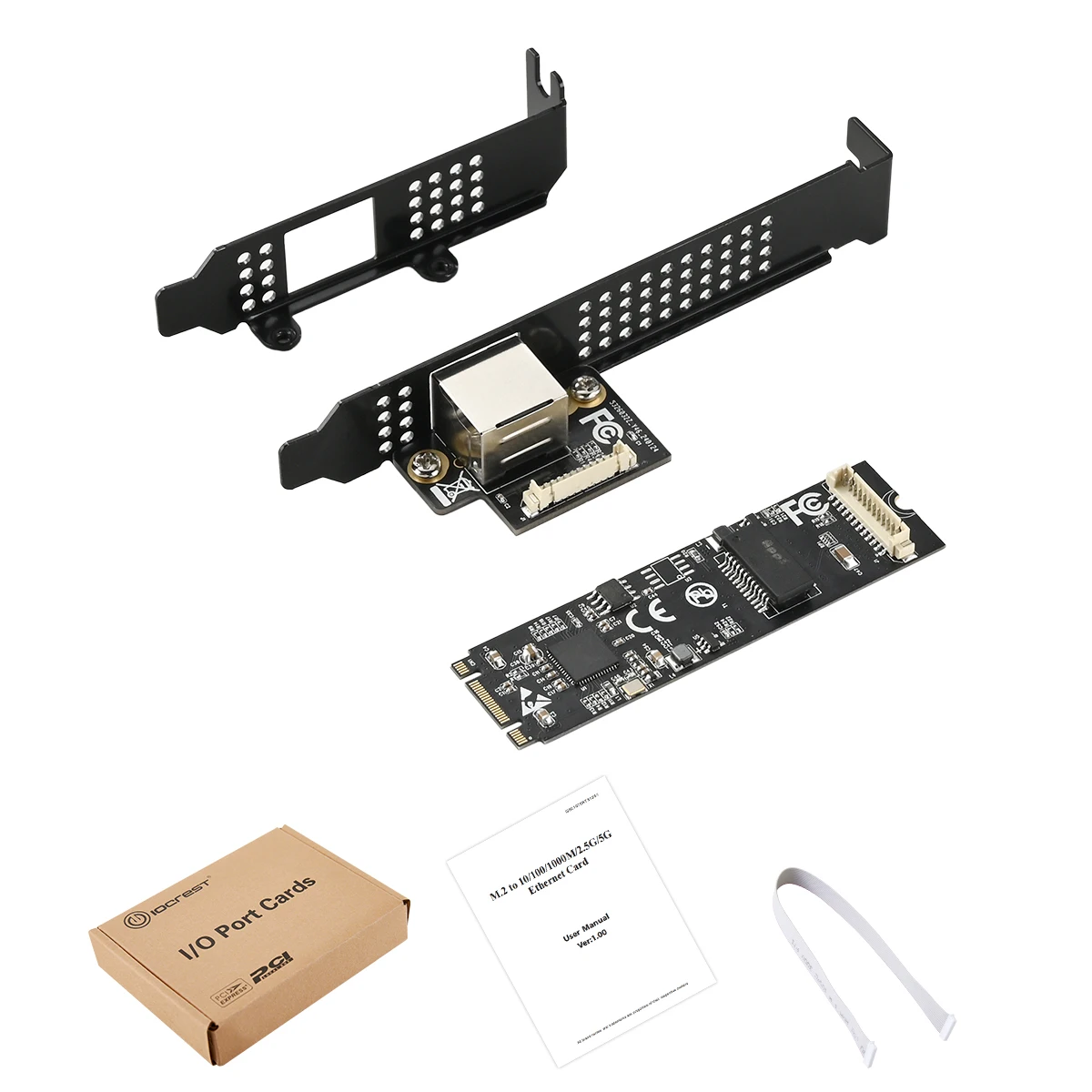

Package Contents

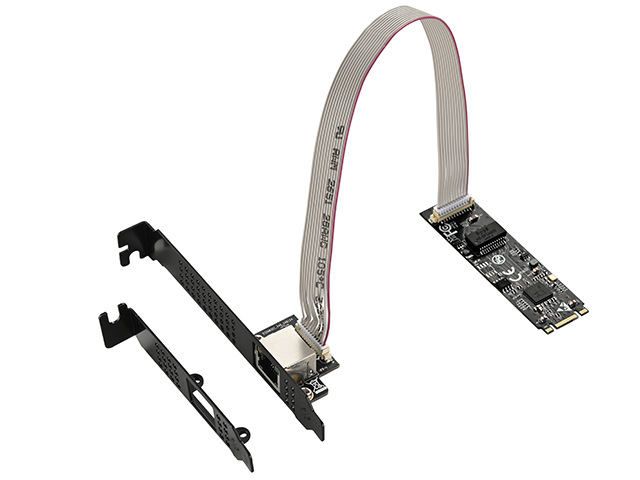

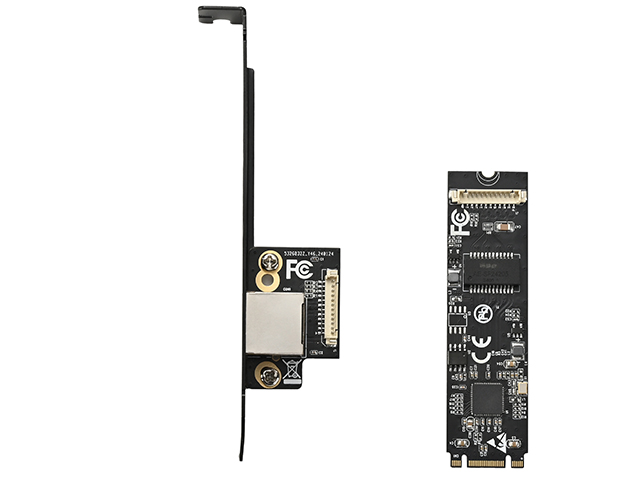

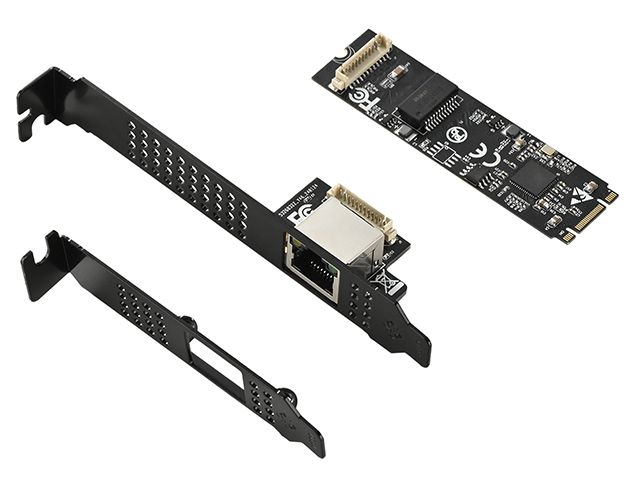

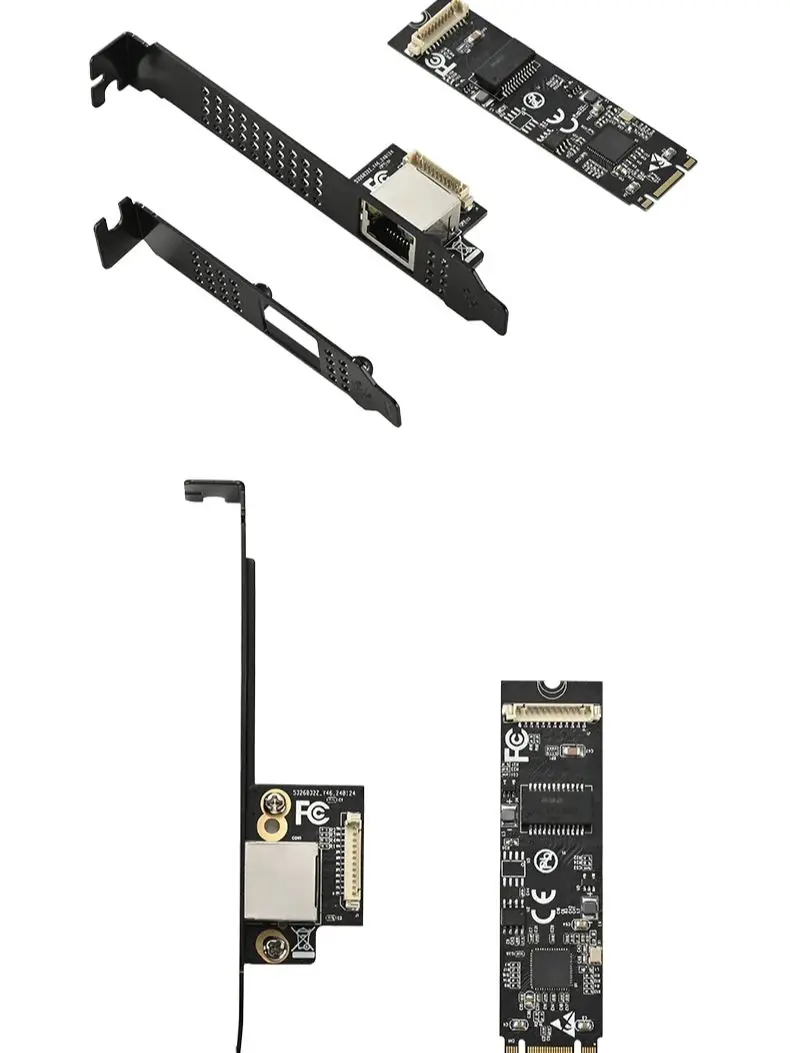

• 1 x M.2 B+M Key RTL8126 Gigabit network adapter-main card

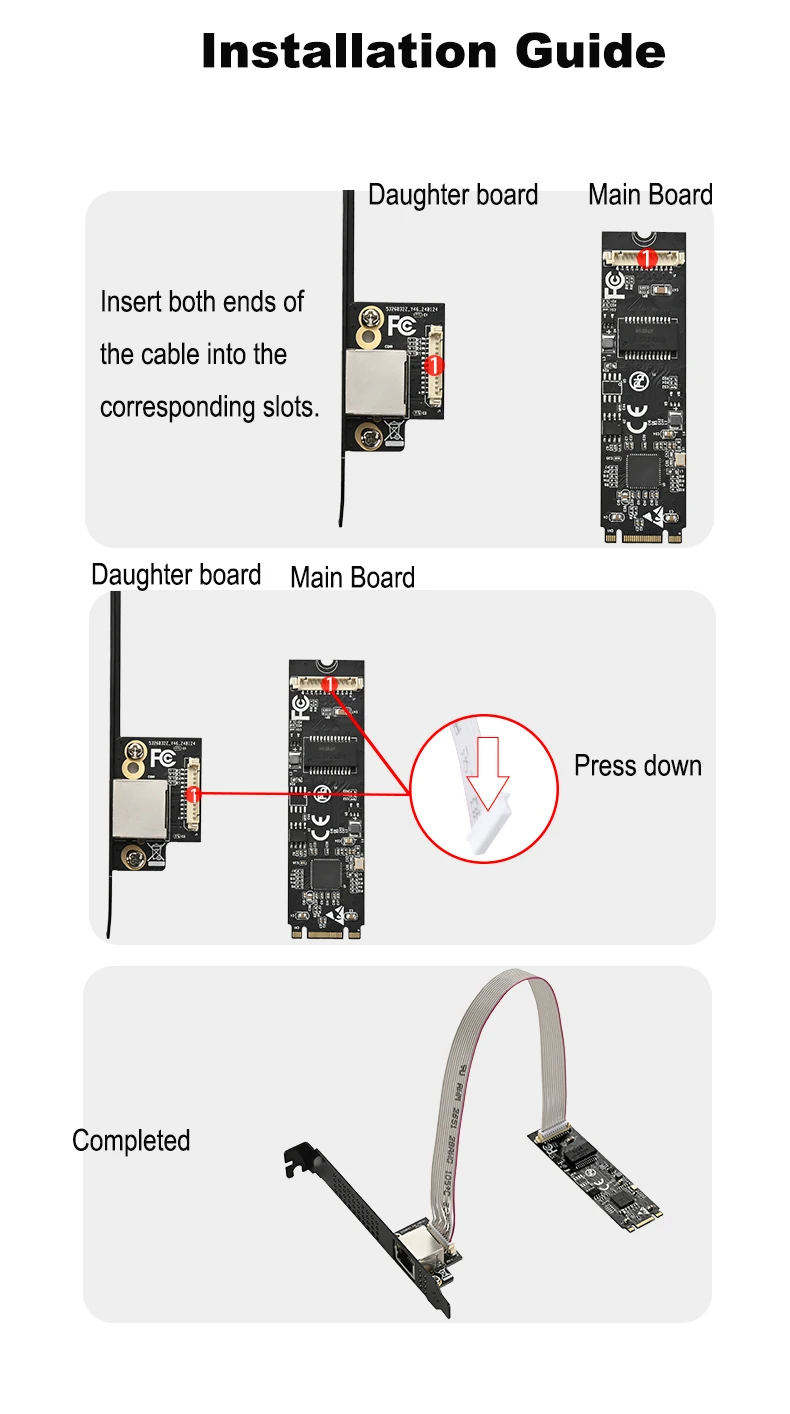

• 1 x RJ45 Network Connector card-daughter board
• 1 x 12-Pin Network cable
• 1 x User Manual
• 1 x Low-profile bracket
Note: Contents may vary depending on country/market

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
