Lekuo 1-Port Mini PCIe 1G Network Card,RTL8111H chip

Model

IO-MPE811H-GLAN

Chipset

RTL8111H

Input

Mini PCIe

Output

1 x RJ45

Transmission Rate

1000Mbps

Bus Type

Mini PCIe

Product Size

30x26.8mm 38.2x25.18mm

Weight

Usage Range

Desktop, servers and other network equipment

Operating Temperature

0°C to 55 °C

Storage Temperature

-20°C to 65 °C

System Compatibility

Windows,Linux,Mac OS and other systems

Package Included

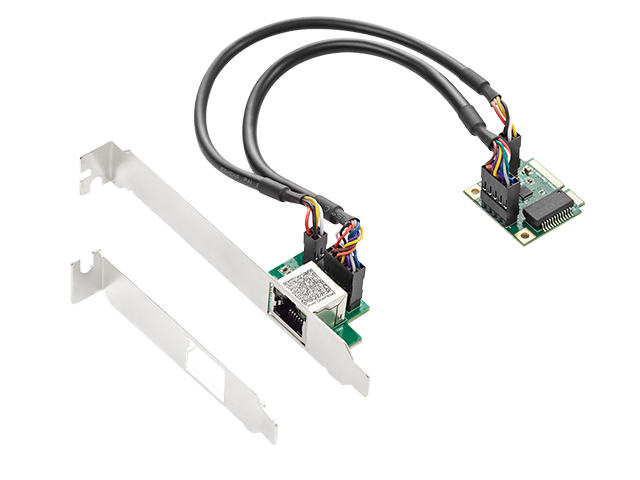

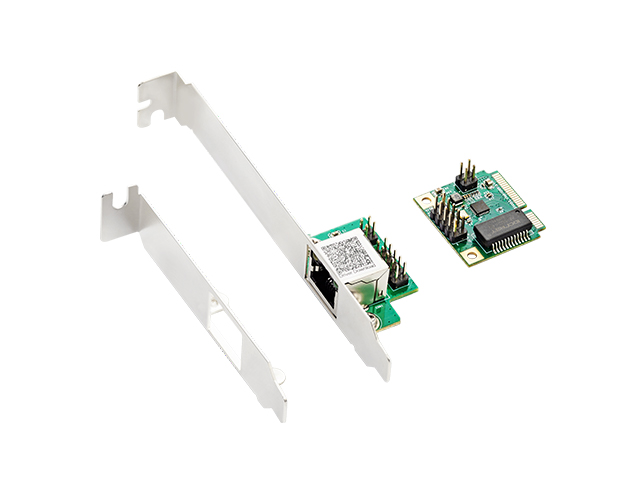

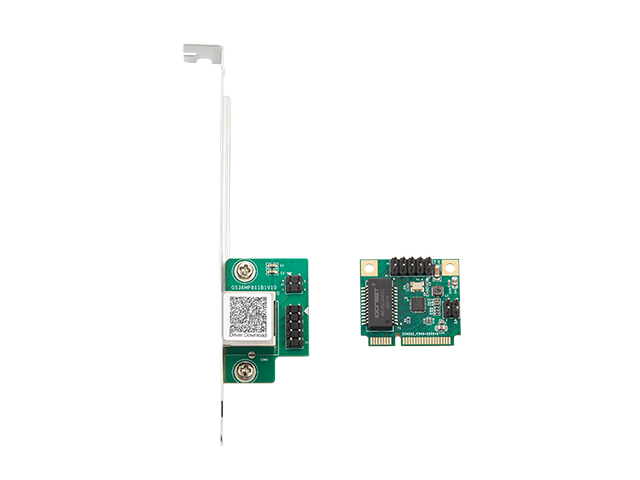

1 x Mini PCIe 1G Ethernet Controller - Main Card 1 x RJ45 Network Connector Card - Daughter Board 2 x Connection Cables 1 x Low Profile Bracket

Features
• Supports PCI Express 1.1
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Integrated 10/100/1000M transceiver
• Backward compatible to 10/100BASE-T networking
• Supports Giga Lite (500M) mode
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirements
• Windows ME,98SE, 2000, XP, Vista, 7, 8,10 and 11 32-/64-bit
• Windows Server 2003, 2008, 2012,and 2016 32 -/64-bit
• Linux, MAC OS and DOS
Package Contents
• 1 x MiniPCIe to Gigabit Ethernet Controller Card
• 2 x Connecting Cable
• 1 x Low Profile Bracket
• 1 x User Manual
Note: Contents may vary depending on country/market
