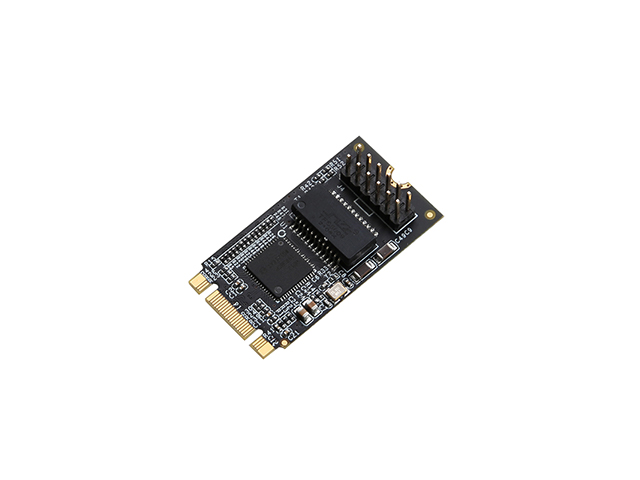

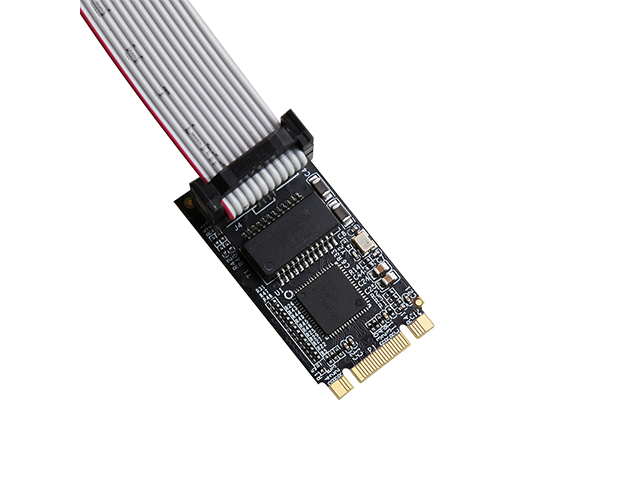

M.2 (B-Key/M-Key) to Gigabit Ethernet Adapter,IO-M2F210-GLAN

The M.2 Gigabit Ethernet Adapter is a high performance 10/100/1000 Base-T Ethernet LAN
controller. Supports compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet.
Model：
IO-M2F210-GLAN
Input Interface：
M.2
Output Interface：
RJ45
Motherboard Slot：
M.2
Transmission Rate:
1000M
Auxiliary Accessories:
Gigabit Ethernet cable
Product Size:
42x22mm
Shopify Alibaba Aliexpress
深圳乐扩多
深圳乐扩多
深圳乐扩多
深圳乐扩多
深圳乐扩多
Product Description
Product specifications
Driver Download
Document Download
Q&A

Features
• M.2 2242 B-M Form Factor
• Fully compliant with PCI-Express Base Specification Revision 1.1
• M.2 B-Key/M-Key interface with transfer rate 2.5Gb/s
• A single 10/100/1000Mbps compatible RJ45 Ethernet port
• 2 status LEDs for gigabit speed and activity
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
• Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
• 9KB Jumbo Frame support
• Microsoft NDIS5 Checksum Offload (IPV4, TCP, UDP) and Large Send Offload support
• Full and half duplex support
• Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
• Humidity ：20~80% RH
• Operating Temperature ：5°C to 50°C (41°F to 122°F)
• Storage Temperature ：-25°C to 70°C (-13°F to 158°F)
Specifications
• Bus Type : M.2
• Chipset ID: Intel – I210AT
• Industry Standards :

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
• Interface : RJ45 (Gigabit Ethernet)
• Compatible Networks : 10/100/1000 Mbps
• Flow Control : Full duplex flow control
• Jumbo Frame Support : 9K max.
• Maximum Data Transfer Rate : 2 Gbps (Ethernet; Full-Duplex)
• Connector(s) Connector Type(s) : 1 – M.2 B-Key/M-Key
• External Ports :1 - RJ-45 Female
• System Requirements :M.2 Slot
• LED Indicators: 1 – 1G Speed (Amber)，1 – Activity (Green)
System Requirements
• Windows® 7, 8.x, 10
• Windows Server® 2008 R2, 2012, 2016, 2019
• Linux 2.6.31 to 4.11.x LTS Versions only

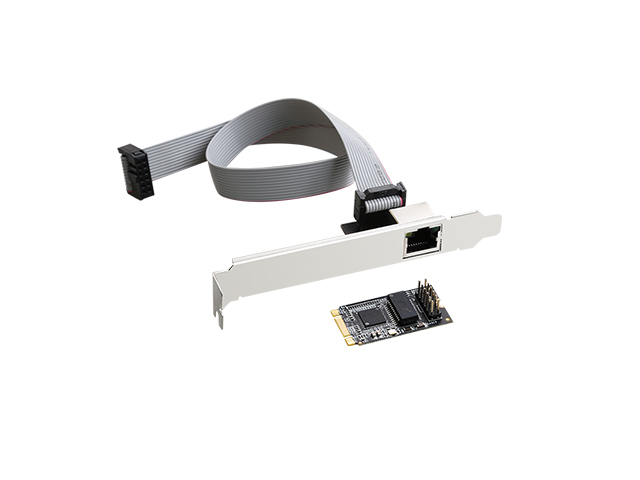

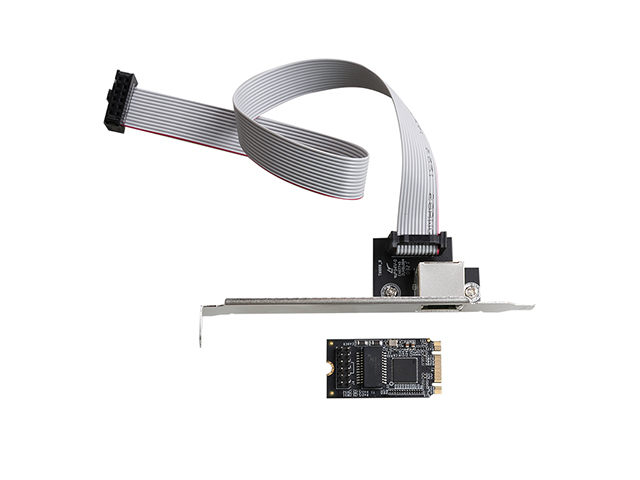

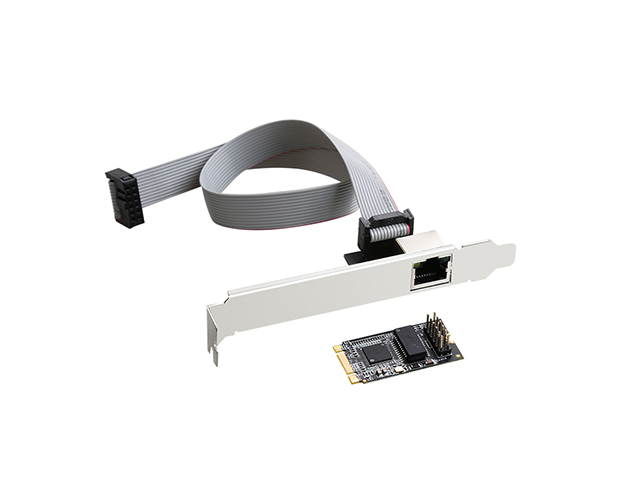

Package Contents
• 1 x M.2 to Gigabit Ethernet Adapter Card
• 1 x RJ45 Daughter card
• 1 x Gigabit Ethernet cable
• 1 x User Manual

Related Downloads
1. IO-M2F8111H-GLAN frequently asked questions
Download
2. 352.354.358 Q&A on Chip Serial Series Products
Download
3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS
Download
4. IO-M2F8111H-GLAN frequently asked questions
Download
5. 352.354.358 Q&A on Chip Serial Series Products
Download
6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS
Download
7. IO-M2F8111H-GLAN frequently asked questions
Download
8. 352.354.358 Q&A on Chip Serial Series Products
Download
9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS
Download
10. IO-M2F8111H-GLAN frequently asked questions
Download
11. 352.354.358 Q&A on Chip Serial Series Products
Download
12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS
Download
