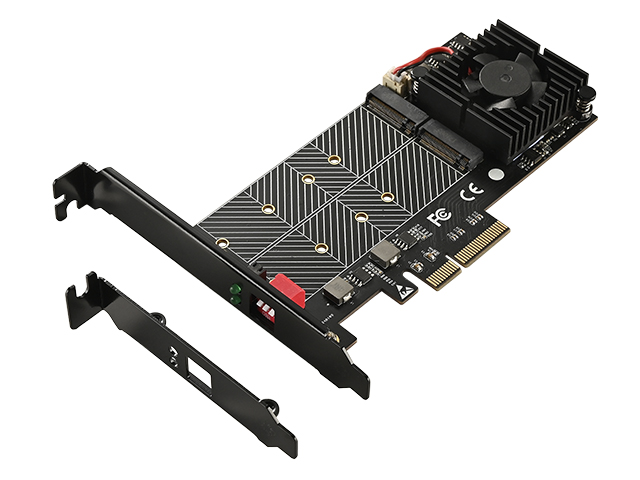

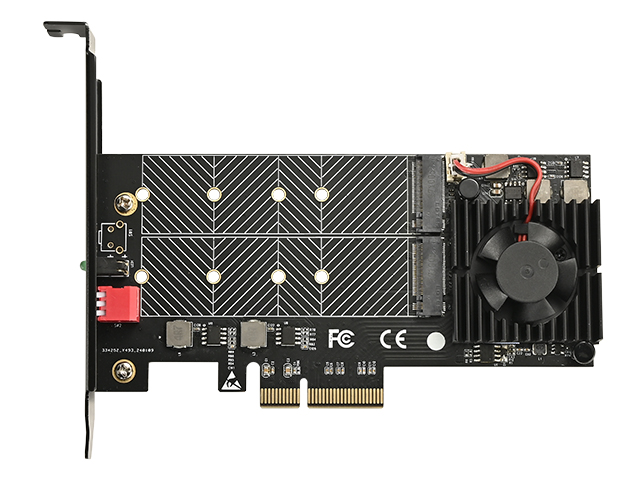

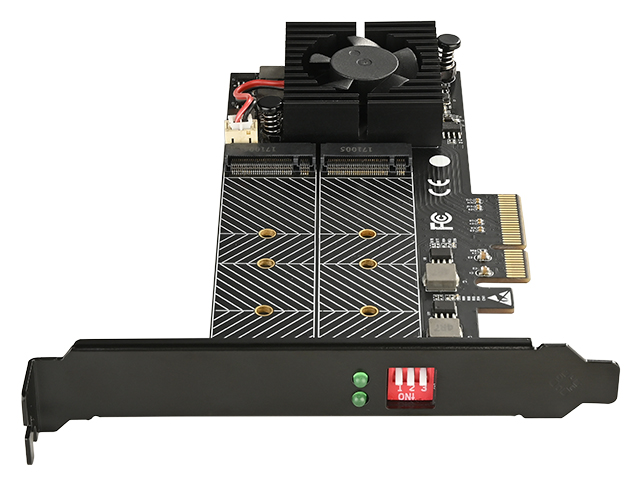

PCIe x4 to 2 Ports PCIe Gen 3x2 NVME RAID Card，IO-PCE586R-2IR

Support PCI Express Gen-III x4,Support PCI Express Base 3.1a Specification,Compliant with PCI Express Card Electromechanical 2.0 specification.

Model：

IO-PCE586R-2IR

Input Interface：

PCIe

Output Interface：

M.2（M-Key）

Motherboard Slot：

PCIe

Transmission Rate:

20Gbps

Auxiliary Accessories:

Low-profile bracket

Product Size:

71x138mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Support PCI Express Gen-III x4
• Support PCI Express Base 3.1a Specification
• Compliant with PCI Express Card Electromechanical 2.0 specification
• Compliant with PCI Express Mini Card Electromechanical 1.2 specification
• Compliant with PCI Bus power Management interface specification Revision 1.2
• Compliant with PCI Local Bus specification Revision 3.0
• Integrate Spread Spectrum Controller for PCI Express interface
• Not Support lane reversal
• Comply with NVM Express 1.4
• Support PCIe Gen3 x2, up to 16Gb/s
• Support TRIM to the SSD
• Support NVM express standard command set
• Support SCSI to NVMe Pass-through command
• Support RAID0,1,Large,PM mode
RAID0/1/JBOD DAS
• 2-bay PCIe Gen 3x2 NVMe SSD with RAID0
• 2-bay PCIe Gen 3x2 NVMe SSD with RAID1
• 2-bay PCIe Gen 3x2 NVMe SSD with JBOD
• Support RAID1 rebuild function
• Support PCIe SSD hot plug/unplug in RAID1
• Operation Temperature ：0 to 70°C
• Storage Temperature：-40 to 150°C
System Requirements:
• Microsoft® Windows and various Linux kernels and MAC 10.10.5 or later version

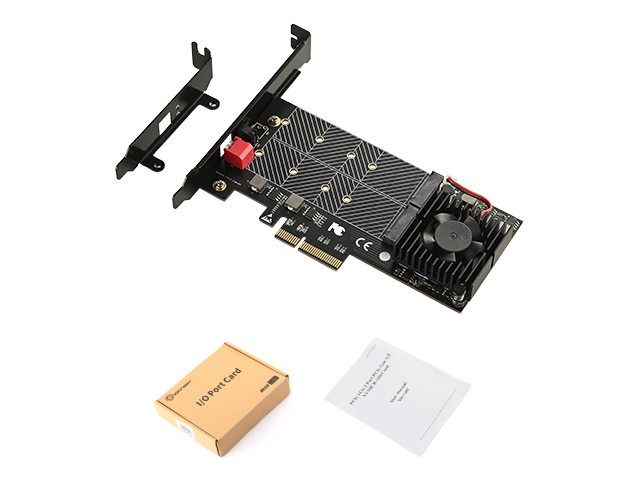

Package Contents
• 1 × PCIe x4 to 2x PCIe Gen 3x2 RAID Card
• 1 × User Manual
• 1 x Low Profile Bracket

Note: Contents may vary depending on country/market
