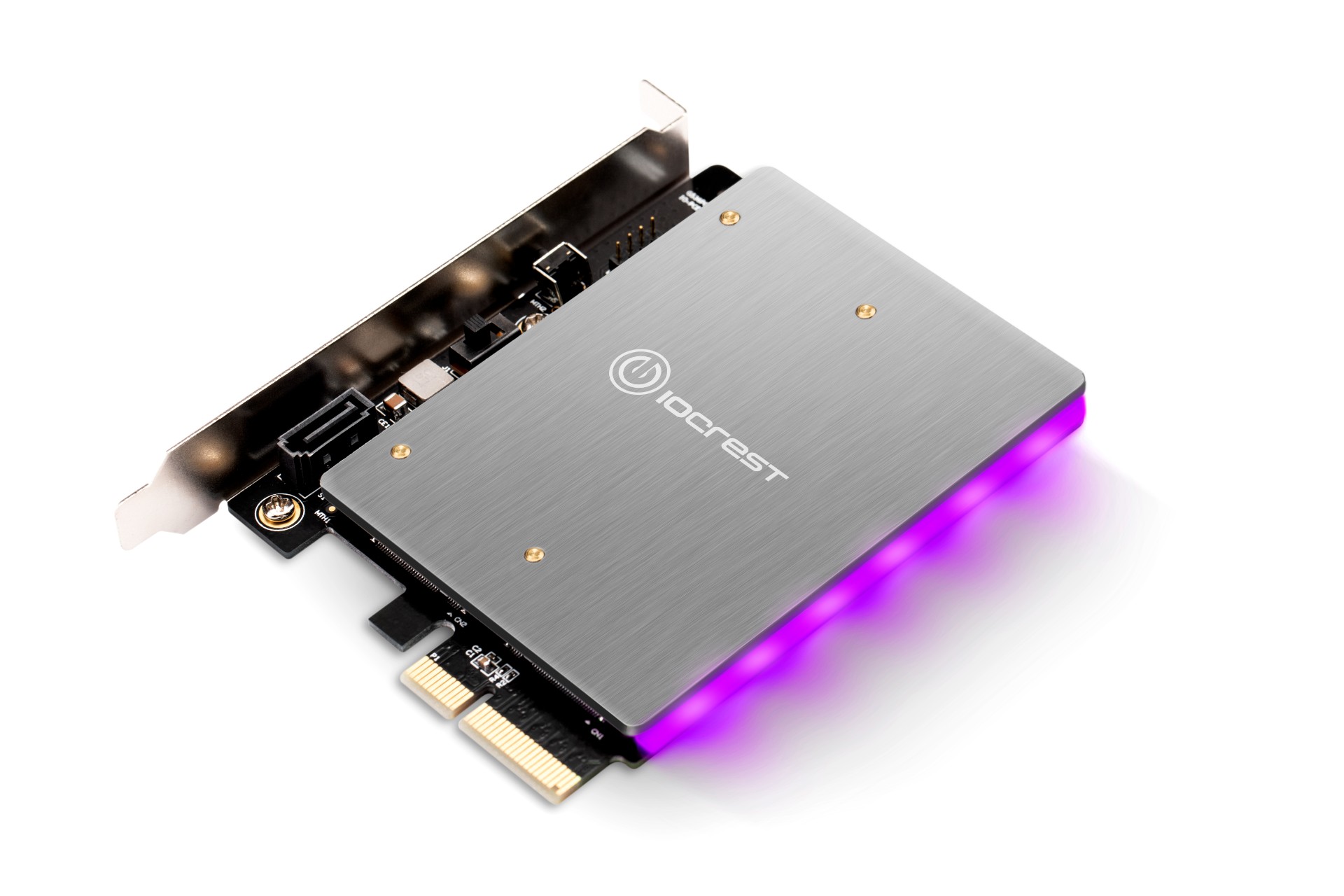

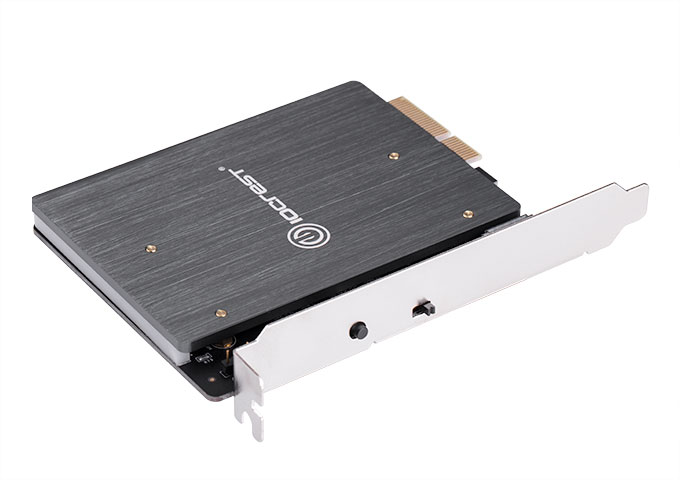

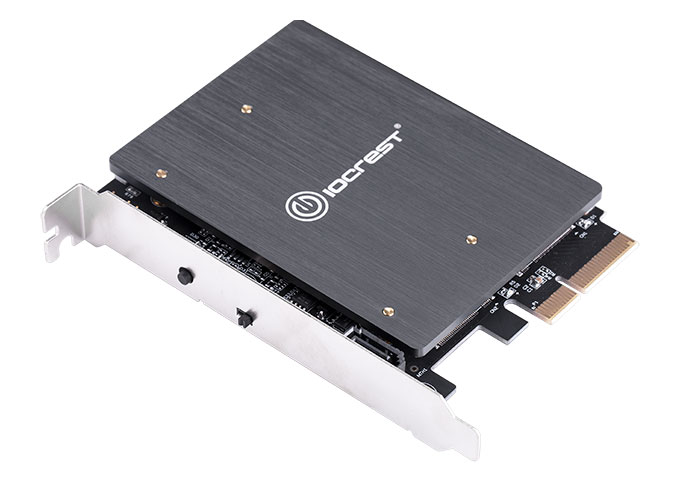

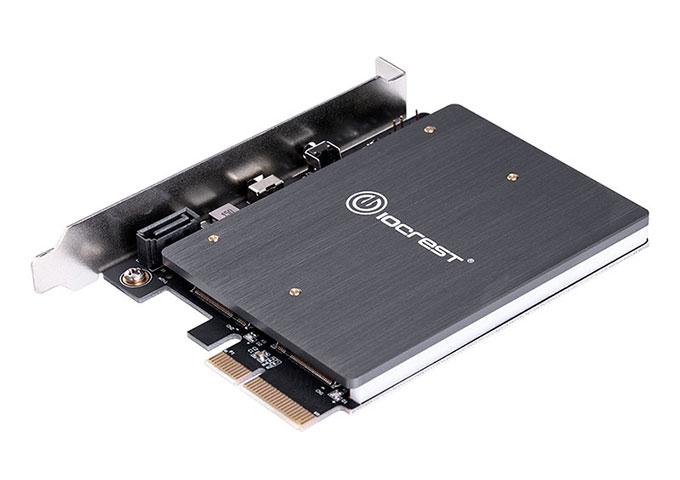

RGB PCIe to M.2 NVMe + SATA Extension card ,IO-PCENSR5

Converts M.2 SSD to work in a main board PCIe x4 slot.Easily fits in PCIe Gen3 x4,x8,x16 slots.Supports 2230, 2242, 2260 and 2280 size SSD.Designed for M.2 One PCIe “M Key”SSD and One SATA “B Key”SSD.support motherboard lamp effect synchronization.

Model：

IO-PCENSR5

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

5V RGB Cable,Screws,Screwdriver,SATA Cable

Product Size:

82.7x110.2mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature

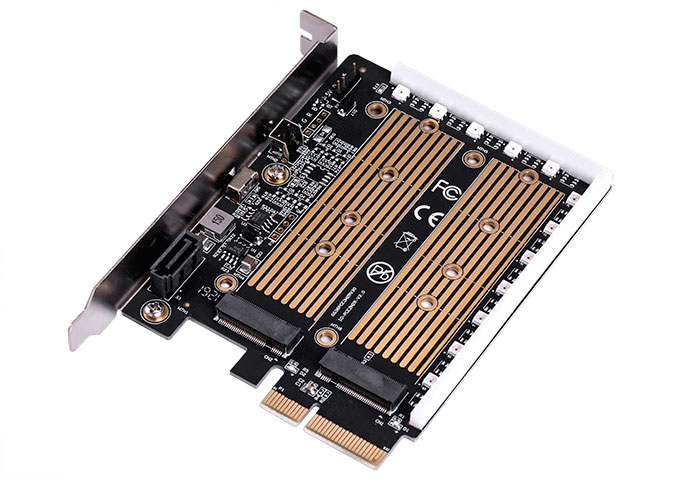

• Converts M.2 SSD to work in a main board PCIe x4 slot.

• Easily fits in PCIe Gen3 x4,x8,x16 slots.

• Supports 2230, 2242, 2260 and 2280 size SSD.

• Designed for M.2 One PCIe “M Key”SSD and One SATA “B Key”SSD.

• Supports digital addressable LED pin headers(5V).

• Supports AURA SYNCRGB,MSI Mystic Light,Gigabyte RGB Fusion

Specifications

• PCI Express Base Specification Rev 3.0

• PCI Express Card Electro-Mechanical (CEM) Specification Rev 2.0

• NVM Express 1.3

Operating System Support

• Windows 7/8/8.1/10 64bit

• UEFI 2.3.1 or later

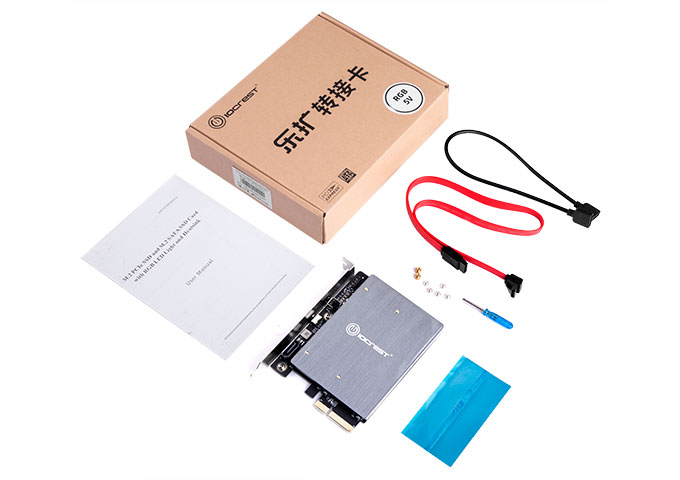

Package Contents

•1×PCIex4 to M.2 NVMe+M.2 SATA SSD Adapter

•1×SATA Cable

•1×5V RGB Cable

•4×Screws

•1×Screwdriver

•1×User Manual
