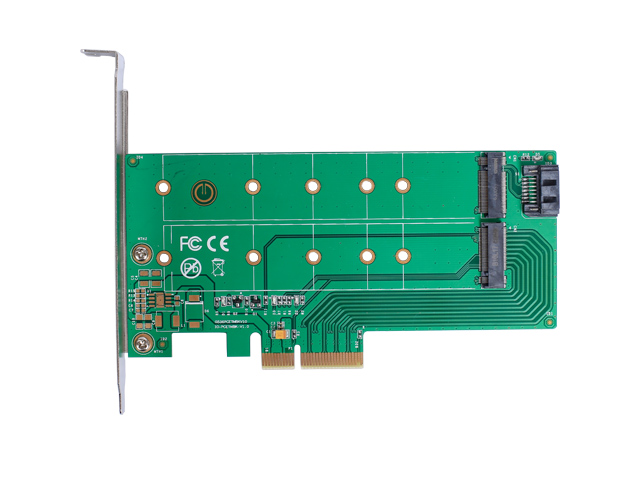

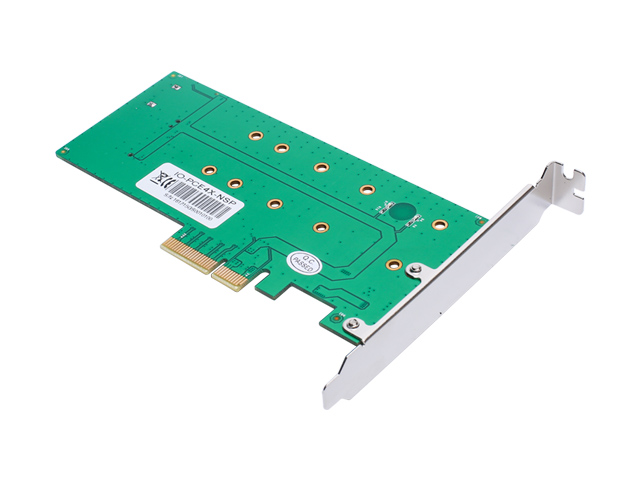

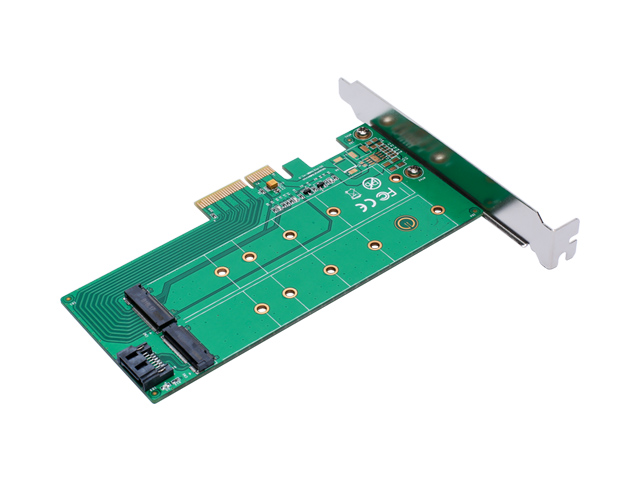

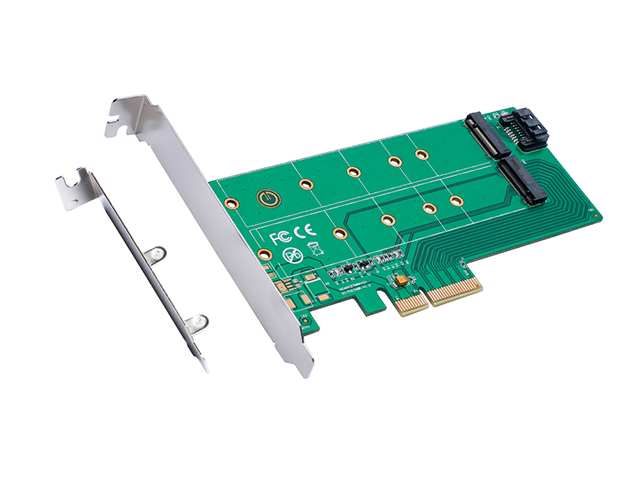

PCIe x 4 to NGFF(PCIe) SSD+SATA to NGFF(SATA)adapter card ,IO-PCE4X-NSP

Supports PCIe x4 or x8 or x16 slot
Compliant with PCI Express M.2 specification 1.0,Compliant with SATA III specification,Serial ATA Spec. Reversion 3.2,Supports data transfer up to 6.0Gb/s.

Model：

IO-PCE4X-NSP

Input Interface：

PCIe

Output Interface：

SATA+M.2(NGFF)

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Screw Drive , mounting screws

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Supports PCIe x4 or x8 or x16 slot
• Compliant with PCI Express M.2 specification 1.0
• Compliant with SATA III specification
• Serial ATA Spec. Reversion 3.2
• Supports data transfer up to 6.0Gb/s
• Connects SATA motherboard to NGFF B Key SSD
• Connects PCIE motherboard to NGFF M Key SSD
• Supports SATA-based NGFF SSD
• Supports 2230, 2242, 2260, 2280 and 22110 size NGFF SSD
• One NGFF M.2 B Key socket and one NGFF M.2 M Key socket available
• 5 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD card
• 5 screw holes available to fix PCB board
• Easy installation & no driver required

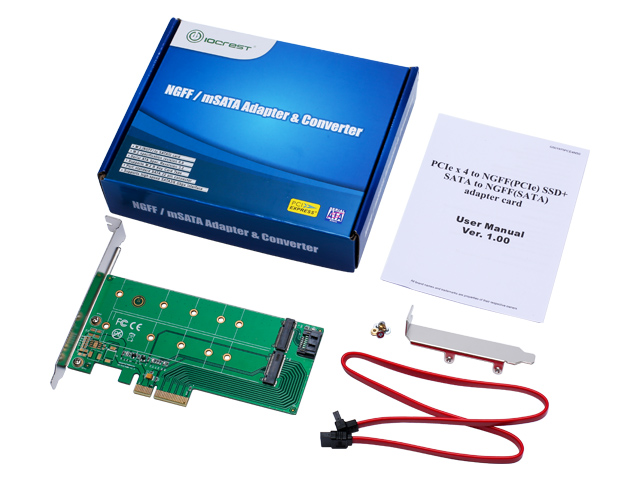

Package Contents
1 x PCIE X4 to NGFF(PCIe) SSD+SATA to NGFF(SATA)adapter card
1 x User Manual
1 x SATA Cable
2 x Screw Drive
4 x NGFF M.2 SSD mounting screws
Note: Contents may vary depending on country and market.
System Requirements
• Supports any OS, like Windows, Win CE and Linux etc
