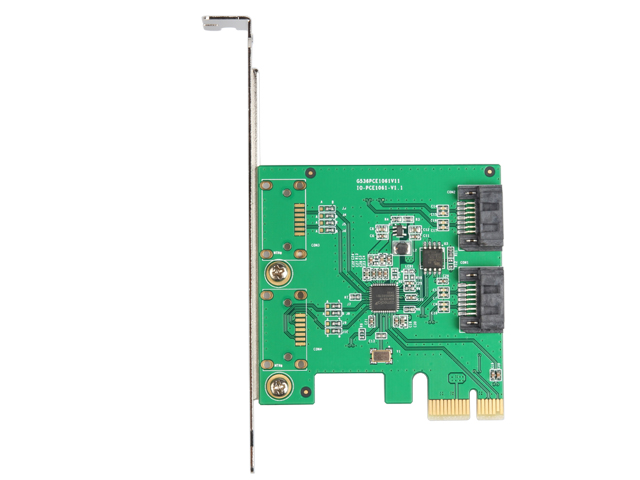

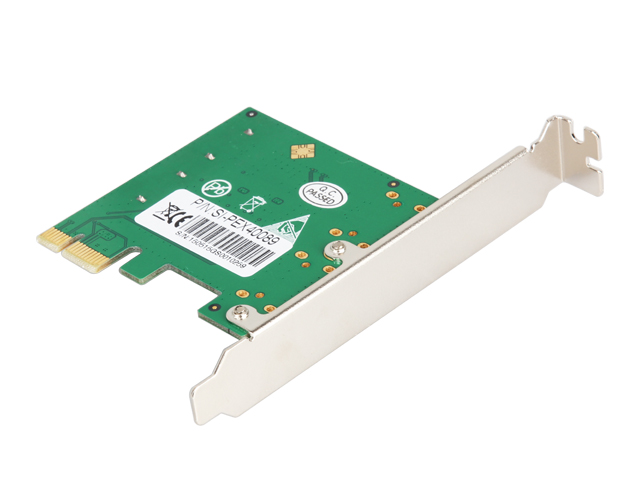

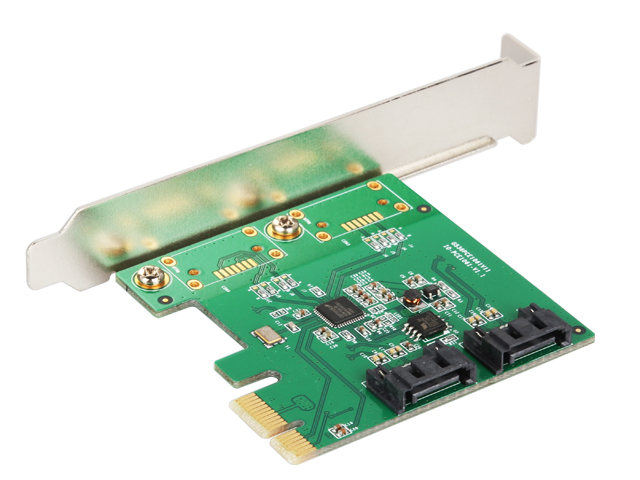

Lekuo 2-Port PCIe SATA 6G RAID Card

Model

IO-PCE1061R-2IR

Interface

PCI Express 2.0

SATA Ports

2 x SATA III Ports

Data Transfer Rate

1.5Gbps / 3Gbps / 6Gbps (Auto-Negotiation)

RAID Support

RAID 0, RAID 1, SPAN (via GPIO or GUI Utility)

Programming Interface

Supports AHCI and IDE modes

Command Queue

Native Command Queue (NCQ) Supported

Port Multiplier

Supports Command-based Switching

S.M.A.R.T

Supported

Rebuild Function

Background / Offline / Auto-Rebuild

System Compatibility

Windows (Vista/7/8.1/Server 2008/2012), Linux

Package Included

1 x User Manual,1 x SATA III (6Gbps) 2-port PCI-Express Controller RAID Card,1 x SATA Cable

Features
• Industry Specifications Compliance:
• PCI Express Base Specification Rev. 2.0
• PCI Express Card Electromechanical Rev. 2.0
• Serial ATA AHCI Spec. Rev.1.3
• Serial ATA Revision 3.2
• Serial ATA Features
• Supports 2 ports Serial ATA PHY
• 1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation
• SATA PHY 1i/1m/2i/2m/3i
• Supports AHCI and IDE programming interface
• Supports Native Command Queue (NCQ)
• Supports Port Multiplier command based switching
• Embedded hardware RAID engine
• Supports RAID0, RAID1, SPAN
• RAID mode changeable, controlled via the setting GUI utility

• RAID0 high performance for the data transmission
• Supports S.M.A.R.T feature
• Supports automatic rebuild
• Supports high performance off-line rebuild
• Supports background rebuild

System Requirements
• Windows® 8.1,7 (32 / 64 bit) / Vista / Server 2012 / 2008，Linux

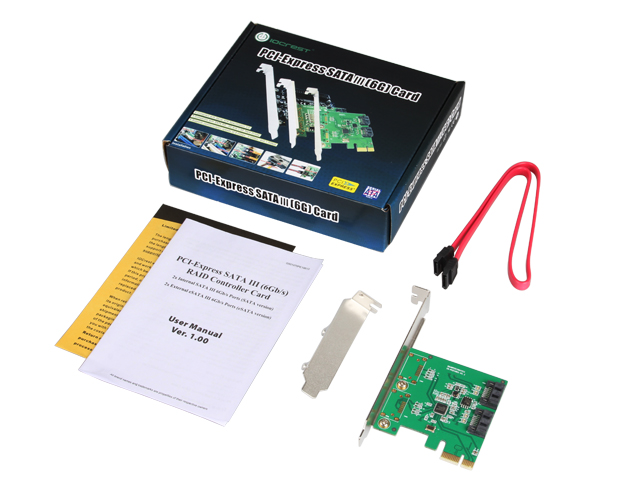

Package Contents
• 1 x User Manual
• 1 x SATA III (6Gbps) 2-port PCI-Express Controller RAID Card
• 1 x SATA Cable
PS: eSATA Card Without SATA Cable

Related Downloads

Driver Download

1. IO-PCE1061R-2IR

Download

❓ Does this array card support UEFI mode?

✅ It supports both UEFI and legacy modes.

❓ What are the prerequisites for creating a RAID with the 1061R?

✅ The hard drives need to support the SATA interface, and at least two hard drives are required to create a RAID. Different RAID levels have different requirements for the number of hard drives. For example, RAID 1 requires at least two hard drives.

❓ Tutorial for creating RAID 1

✅ For the creation of RAID and the installation of the system, please open the following link: http://www.mmui.com.cn/index.php?id=1119. You need to enable CSM in the motherboard BIOS and select all legacy options. Save and restart. After the card's self-check screen appears, press Ctrl+R.

Is it necessary to format the hard drives before creating RAID 1?

✅ No, the hard drives will be automatically initialized when creating the array.

❓ Can I create RAID 1 with data already on the hard drives?

✅ Yes, but if the hard drives have data, you need to back up the data in advance.

❓ How to recover data if one of the drives fails?

✅ Replace the failed drive with a new, data-free hard drive of the same or larger capacity. If the replacement drive has been used before, it needs to be deleted of partitions and initialized.

❓ How to recover data if the array card fails?

✅ It is recommended to back up data before replacing the array card. Choose an array card of the same model and brand as the original to ensure that the RAID configuration data can be correctly recognized and read. After installing the new array card, it will automatically detect and read the existing RAID configuration data.

❓ How to recover data if one of the drives and the card fail simultaneously?

✅ Before replacing the card and the hard drive, back up the data from the good hard drive. Then, replace the damaged array card and hard drive. When replacing, choose an array card of the same model and brand as the original to ensure that the RAID configuration data can be correctly recognized and read. For the hard drive, the new hard drive must be in good condition.
