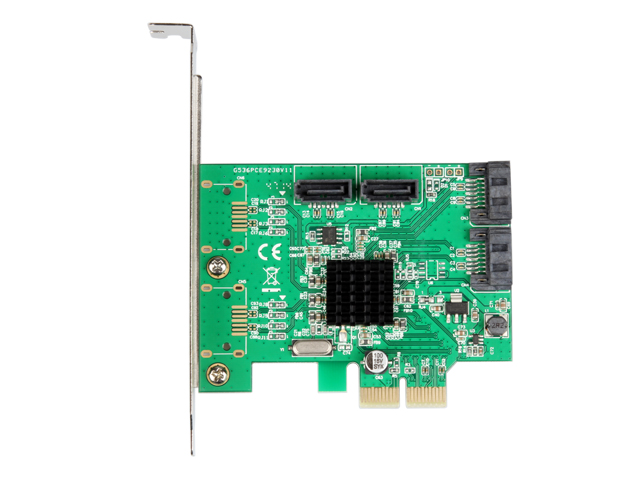

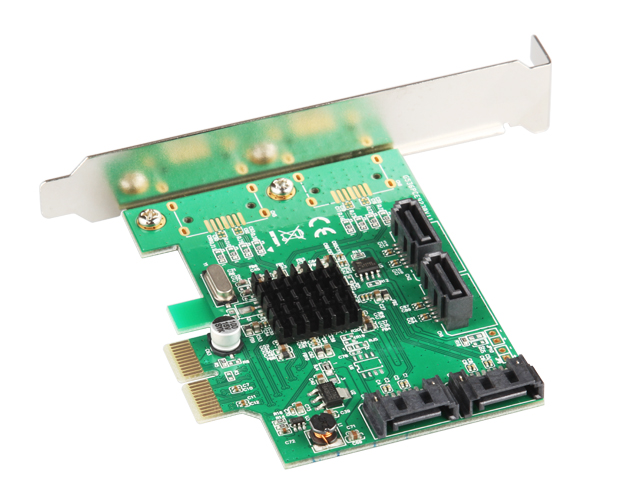

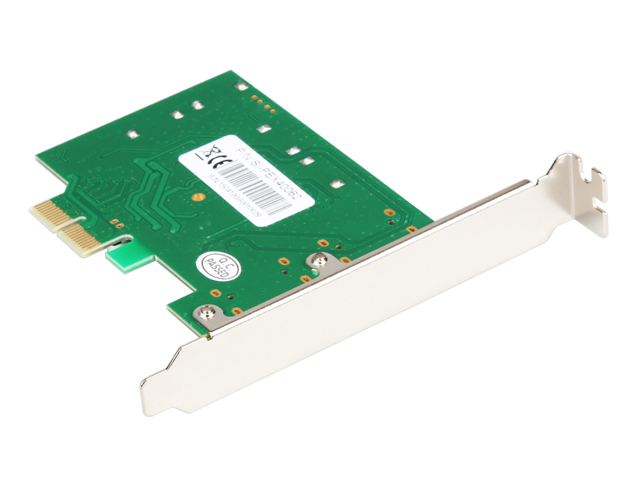

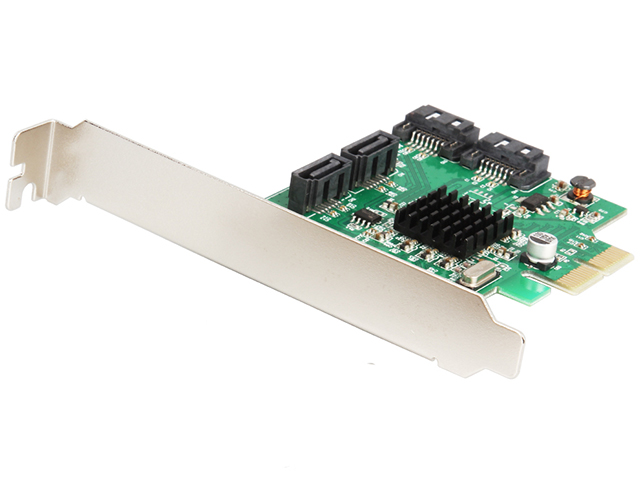

PCIe to 4-port SATA III Controller Card ,IO-PCE9235-4I

Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x ,Compliant with Serial ATA Specification 3.0 ,PCI-Express x2 Interface is Compatible with PCI-Express x4, x8, and x16 slots ,Supports Communication Speeds of 6.0 Gbp

Model：

IO-PCE9235-4I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low Profile Brackets ,

Product Size:

88x69mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation
Chipset: Marvell 88SE9235
Ports:
4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x
Compliant with Serial ATA Specification 3.0
PCI-Express x2 Interface is Compatible with PCI-Express x4, x8, and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives

Package detail
Package Info
Dimension: L 7 x W 5.5 x H 1.5 inch
Weight: 0.38 lb
UPC: 810154016853

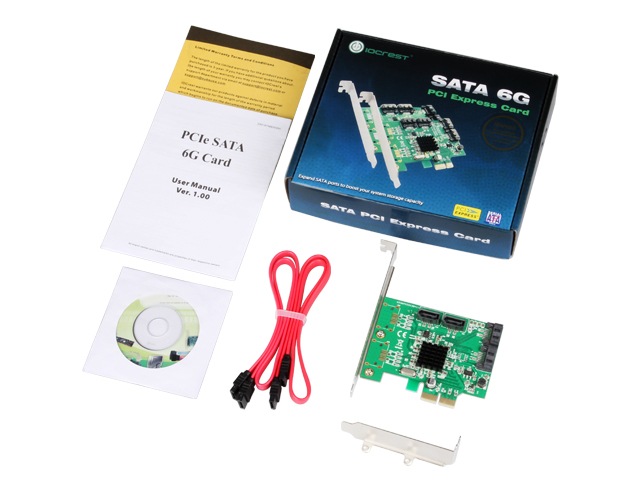

Package Includes
SATA III 4-port PCI-e Version 2, x2 Slot Controller Card
Driver CD
19" SATA Cables (x2)
Low Profile Bracket
User Manual

Software requirement
Windows 8
Windows 7
Vista
Windows XP
Server 2008
Server 2008 R2
Server 2003
Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
