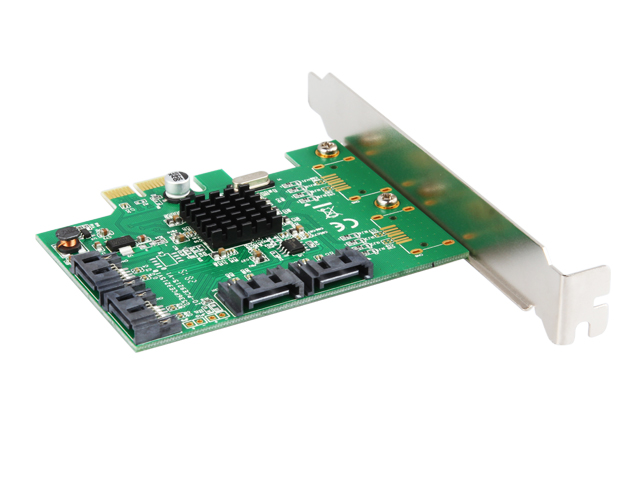

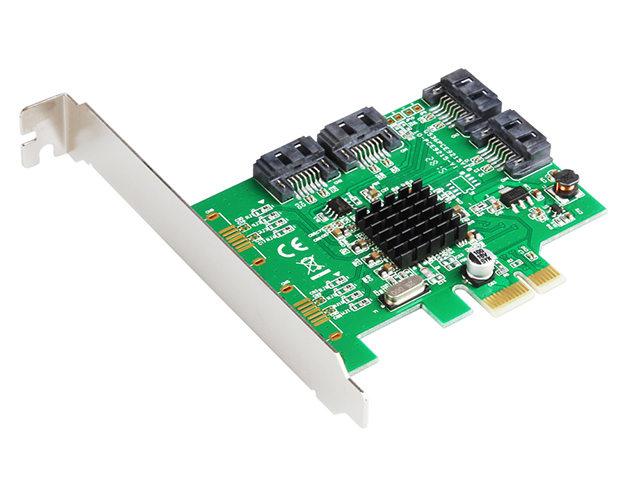

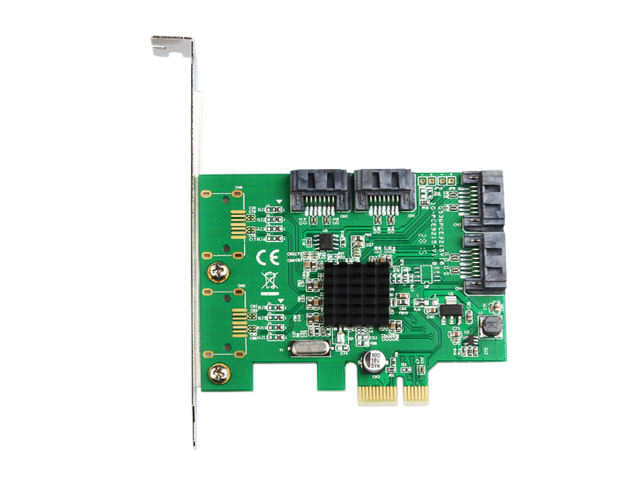

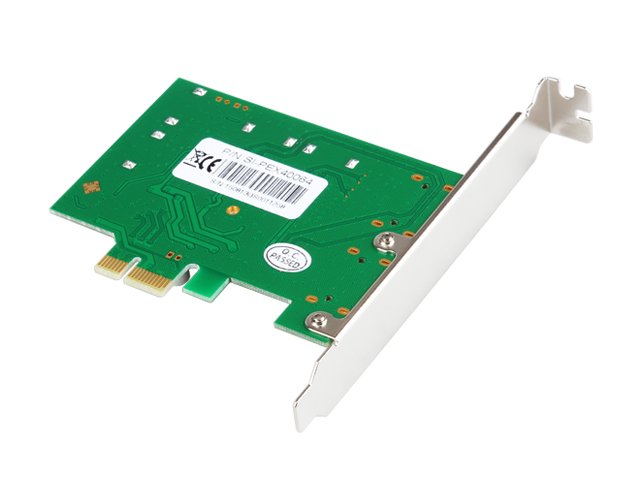

PCIe to 4-port SATA6g Controller Card,IO-PCE9215-4I

Compliant with PCI-Express Specification v1.0,Compliant with Serial ATA Specification 3.0,Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps,Hot Plug and Hot Swap.

Model：

IO-PCE9215-4I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Product Size:

88x69mm

Shopify Alibaba Aliexpress

Product Specifications

Product Description

Driver Download

Document Download

Q&A

Specification
Chipset: Marvell 88SE9215
Ports:
4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v1.0
Compliant with Serial ATA Specification 3.0
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives
Dimension: L 7 x W 5.5 x H 1.5 inch
Weight: 0.38 lb
UPC: 810154016877

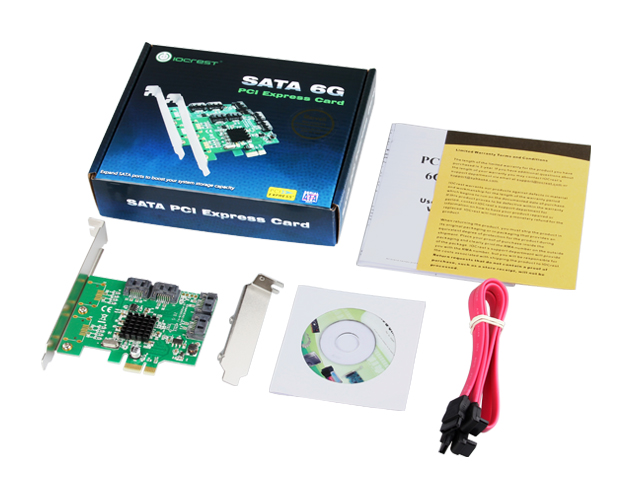

Package Includes
SATA III 4-port PCI-e Controller Card
User Manual
Low Profile Bracket
19" SATA Cables (x2)
Driver CD
Software requirement
Windows 10/8/7/XP，Vista，Server 2008，Server 2008 R2，Server 2003
Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
