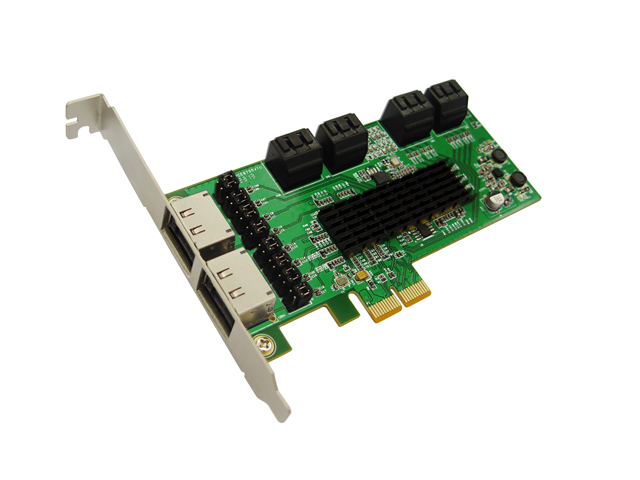

PCIe to 4 external port and 4 internal port SATA 6G Card,IO-PCE9705-4E4I

Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express v1.x .Compliant with Serial ATA Specification 3.0,PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots. Supports communication speeds of 6.0

Model：

IO-PCE9705-4E4I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

SATA Cable,Low Profile Bracket,Driver CD

Product Size:

139.8x68.8mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express v1.x
Compliant with Serial ATA Specification 3.0
PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS based switching or command based switching.
Compatible with SATA 6G, 3G and 1.5G Hard Drives.

System Requirements
Supports Windows® XP/Vista/7/8/Server 2003/2008 R2, Linux 2.6.x and above，Mac OS 10.X

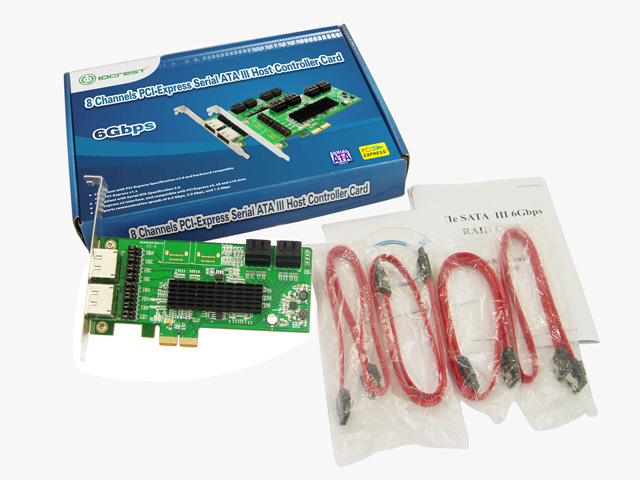

Package Contents
1 x SATA III (6Gbps) 8-port PCI-Express Controller Card
1 x User Manual
2 x SATA Cable
1 x Driver CD
1 x Low Profile Bracket

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
