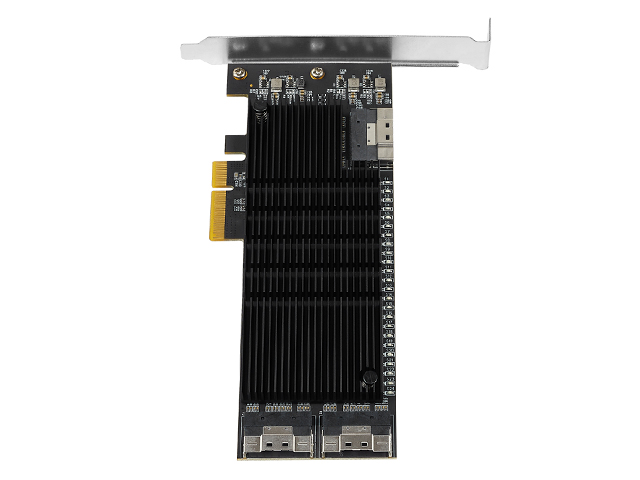

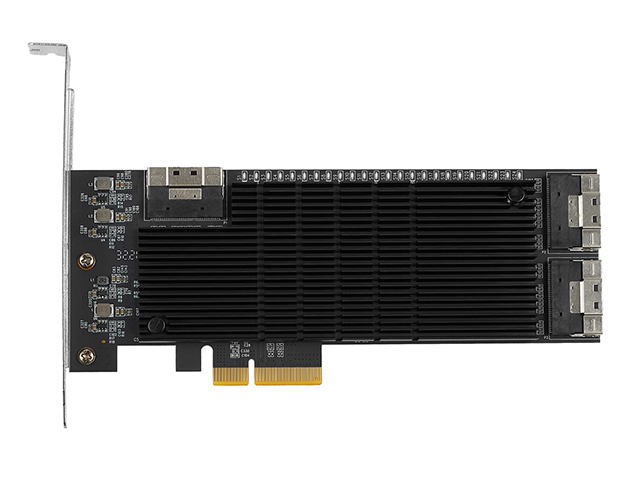

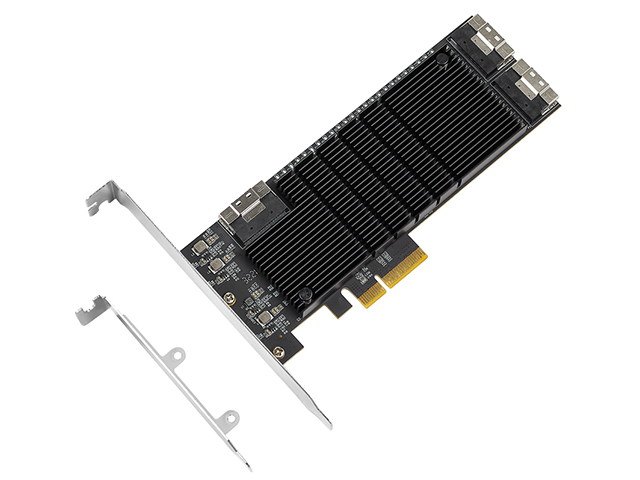

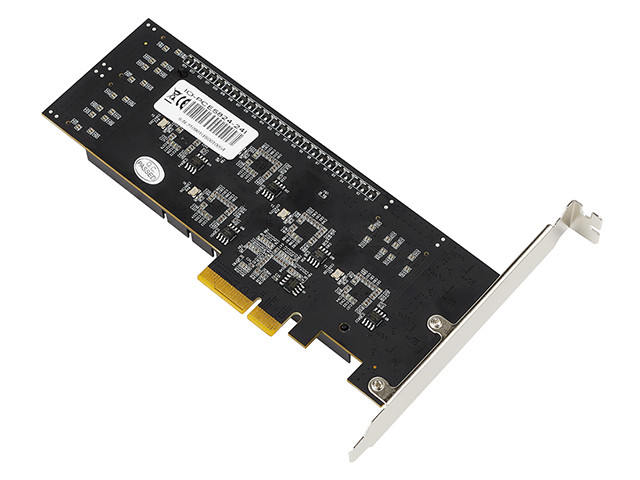

PCIe Gen3x4 to 24 Port SATA 6G Card,IO-PCE5824-24I

Features

• Supports up to two lane of PCI Express.

• Complies with PCI Express Base Specification Revision 3.1a.

• Compliant with Serial ATA Port Multiplier Spec. Revision 1.2

• Compliant with Serial ATA Port Selector Spec. Revision 1.0

• Compliant with Serial ATA PHY Electrical Spec. Revision 1.0

• Complies with SATA Specification Revision 3.2

• Supports PCIe link layer power saving mode.

• Supports 24-port 6Gb/s SATA III interface.

• Supports Port Multiplier

• Supports command-based and FIS-based for Port Multiplier.

• Supports AHCI mode and IDE programming interface.

• Supports Native Command Queue (NCQ).

• Supports SATA link power saving mode (partial and slumber)

• Supports SATA plug-in detection capable.

• Supports drive power control and staggered spin-up.

• Supports SATA Partial / Slumber power management state.

Note:Don’t support system boot disk

System Requirements

• Windows OS

• Linux-base OS

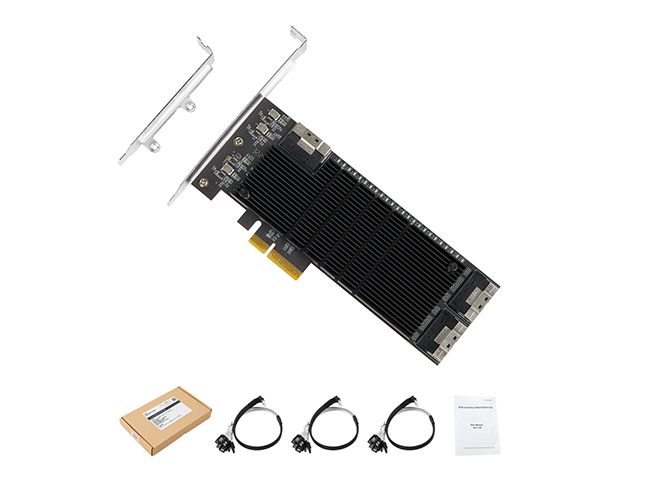

Package Contents

• 1 × PCIe Gen3x4 to 24 SATA 6Gb/s Card

• 1 × User Manual

• 3 × Slim SAS SFF-8654 8i 74P to 8*SATA Cable

• 1 x Low Profile Bracket

Note: Contents may vary depending on country/market
