深圳市乐扩多媒体有限公司

Feature

• Supports one lane of PCI Express.

• Complies with PCI Express Base Specification Revision 3.1a.

• Compliant with Serial ATA Port Multiplier Spec. Revision 1.2

• Compliant with Serial ATA Port Selector Spec. Revision 1.0

• Compliant with Serial ATA PHY Electrical Spec. Revision 1.0

• Complies with SATA Specification Revision 3.2.

• Supports 10-port 6Gb/s SATA III interface

• Supports asynchronous signal recovery

• Automatic speed negotiation

• Supports BIST and loopback mode

• Supports Port Multiplier

• Supports Hot-Plug

• Supports cascade mode

• Supports AHCI mode and IDE programming interface.

• Supports Native Command Queue (NCQ).

• Supports SATA link power saving mode (partial and slumber)

• Supports SATA plug-in detection capable.

• Supports drive power control and staggered spin-up.

• Supports SATA Partial / Slumber power management state.

System Requirements

• Windows 7 (X86/X64)

• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)

• Linux-base OS

Package Contents

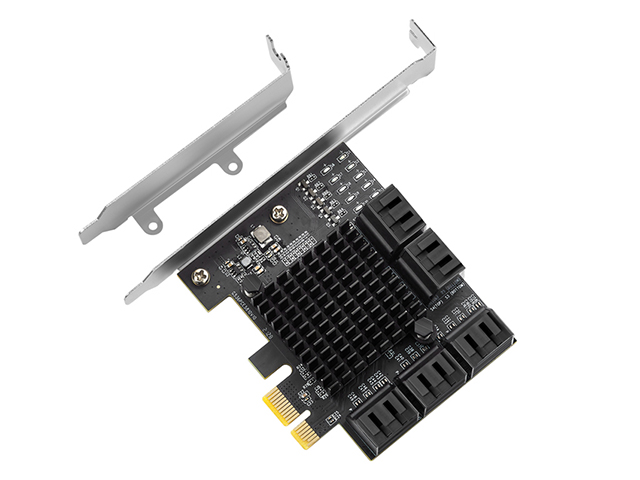

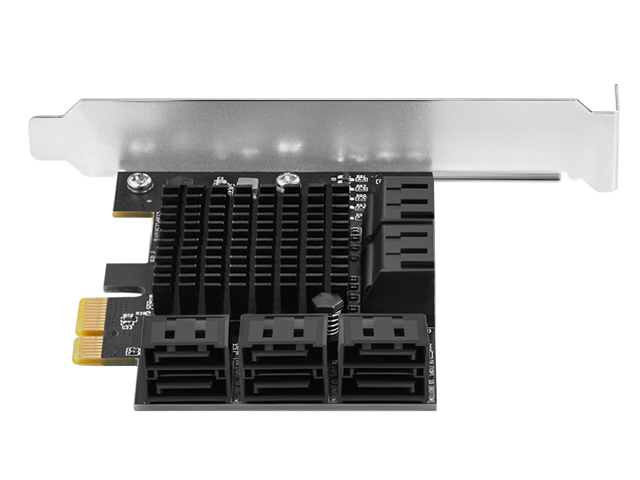

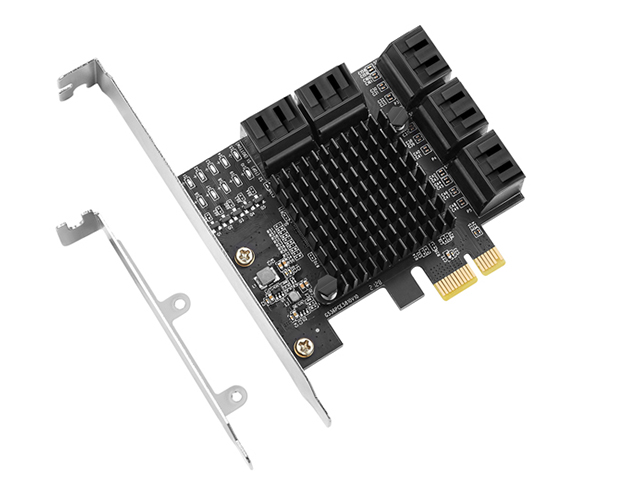

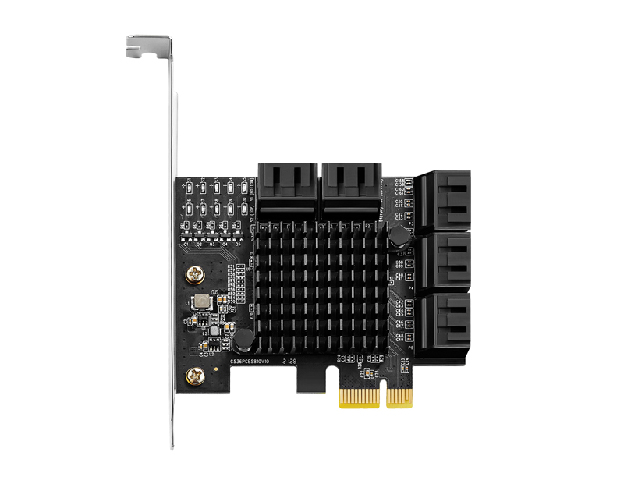

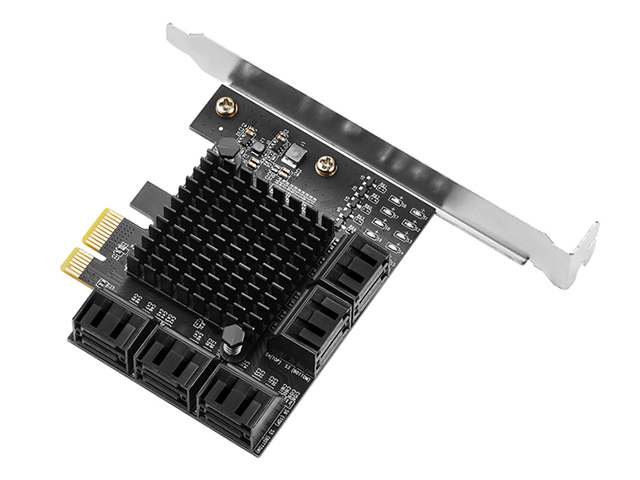

• 1 x PCIe Gen3x1 to 10 x SATA Card

• 1 x User Manual

• 5 x SATA Cable

• 1 x Low Profile Bracket

Note: Contents may vary depending on country/market
