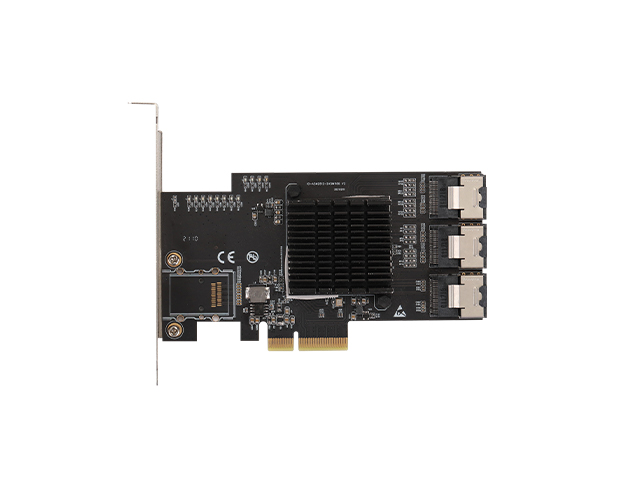

PCIe3.0 x4 to 12 Port SATA 6G Card,IO-PCE1166-12I

Support PCI Express Gen-III x4,x8,x16,Complies with PCI Express Base Specification Revision 3.1a,Automatic detection of lane configuration on boot-up,Hot plug and Hot Swap.

Model：

IO-PCE1166-12I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIex4,x8,x16

Transmission Rate:

6Gb/s

Auxiliary Accessories:

Mini SAS to SATA Cable,Low Profile Bracket

Product Size:

137x76.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Support PCI Express Gen-III x4,x8,x16

• Complies with PCI Express Base Specification Revision 3.1a

• Automatic detection of lane configuration on boot-up

• Hot plug and Hot Swap

• Supporting transfer rate of 2. 5Gb(250MB/s), 5Gb(500MB/s) or 8Gb(1GB/s) per lane

• Complies with SATA Specification Revision 3.2.

• AHCI SPEC Rev.1.4.

• Supports 12 ports Serial ATA

• Supports Native Command Queue (NCQ)

• Supports SATA LED

• Supported port multiplier command based switching

• Support Partial/Slumber power management

• Support Device Sleep power management

• Supports SATA plug-in detection capable

• Supports UEFI(Unified Extensible Firmware Interface)

• Supports SATA Partial / Slumber power management state

System Requirements

• PCI Express-enabled system with one available PCI Express slot

• Windows

• Ubuntu

• Synology

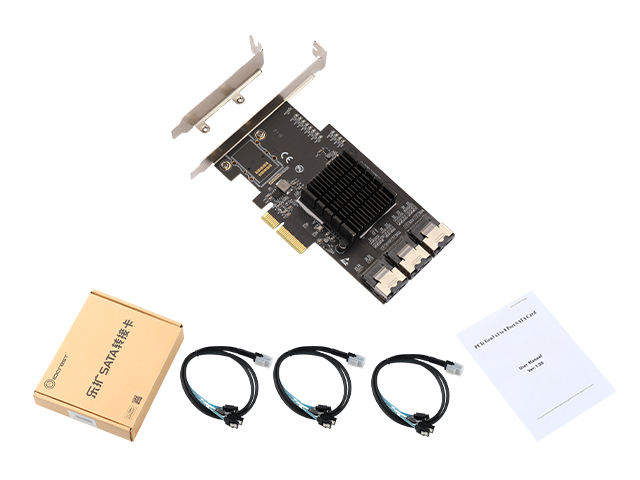

Package Contents

• 1 x PCIe Gen3 x4 to 12 SATA Gen3 Card

• 1 x User Manual

• 3 x Mini SAS to SATA Cable

• 1 x Low Profile Bracket

Note: Contents may vary depending on country/market
