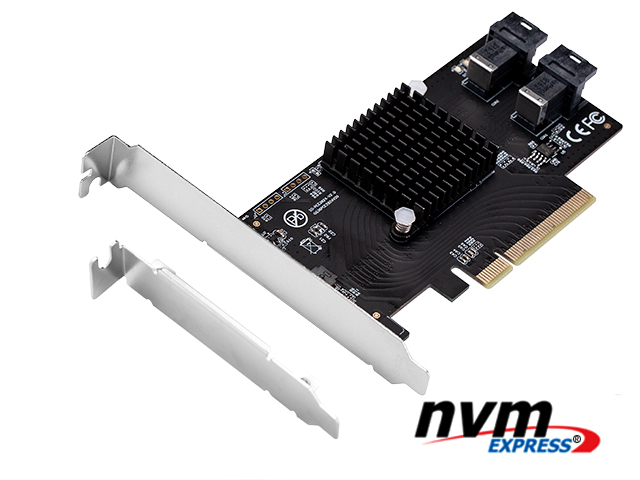

PCIe3.1X8 to 2XU.2(SFF-8643) card ,IO-PEX40151

Supports PCIe x8/16 slot,Support PCIe 3.1,3.0, PCIe 2.0 motherboard,Automatic detection of lane configuration on boot-up,

Model：

IO-PEX40151

Input Interface：

PCIe

Output Interface：

U.2 SFF-8639

Motherboard Slot：

PCIe

Transmission Rate:

Auxiliary Accessories:

SFF-8643 to U.2 SFF-8639 with 15-pin SATA Power cable（Optional）

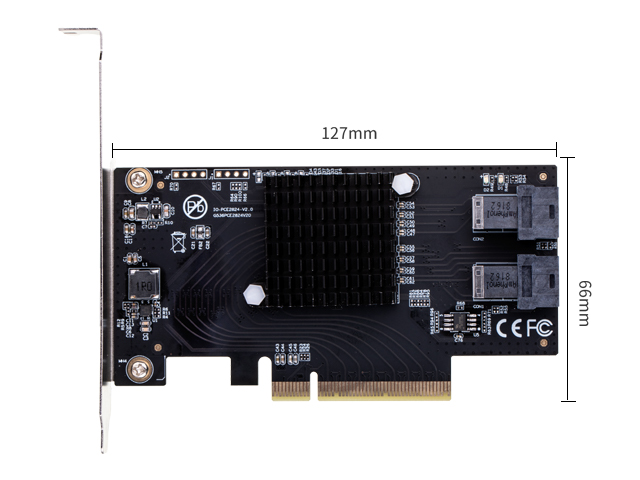

Product Size:

127x66mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

▪Supports PCIe x8/16 slot

▪Support PCIe 3.1,3.0, PCIe 2.0 motherboard

▪Automatic detection of lane configuration on boot-up

▪Support L0s/L1/L23/L3 power saving states

▪Support L1 substate deep power saving mode

▪Support wake up function in S3/S4

▪Support port disable by individual control

▪Support LTR

▪Support AER

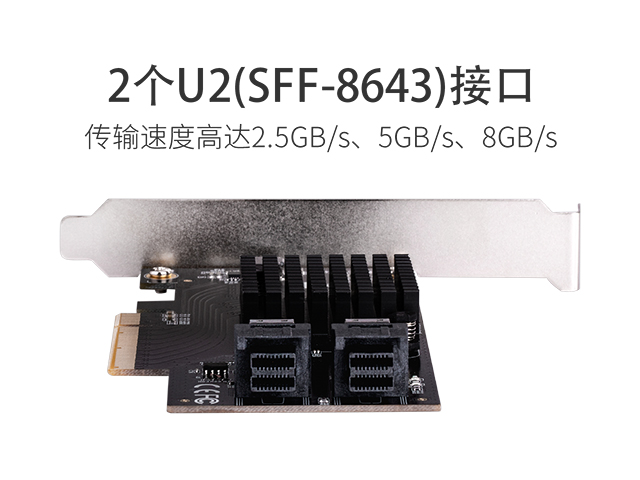

▪SFF -8643 Min SAS HD Version 3.5

▪Supports data transfer up to 2.5Gb/s,5Gb/s,8Gb/s

▪PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0

▪NVM Express 1.3

▪Easy installation & no driver required

System Requirements

▪Supports Windows 7,8,8.1 and 10

▪Windows server 2K8,2K12,2K16

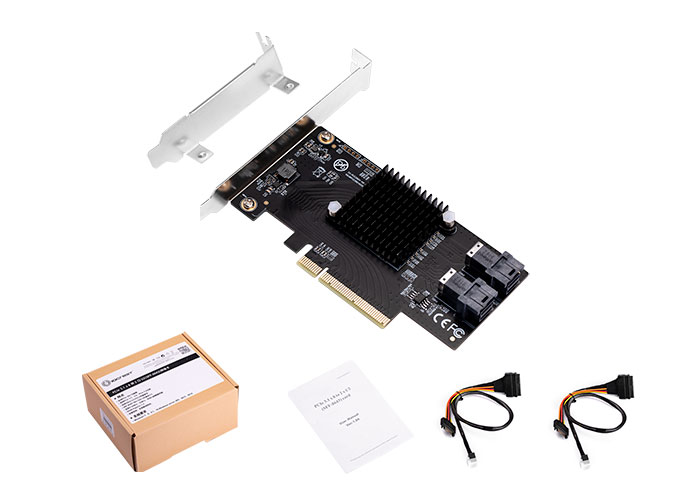

Package Contents

▪1 x PCIe x 8 to 2 x U2(SFF-8643) card

▪1 x User Manual

▪2 x SFF-8643 to U.2 SFF-8639 with 15-pin SATA Power cable（Optional）
