PCIe3.0 to 2 ports SATA6Gb/s Card,IO-PEX40148

Supports one lane of PCI Express.Complies with PCI Express Base Specification Revision 3.1a.Supports PCIe link layer power saving mode.Supports 2 SATA port.

Model：

IO-PEX40148

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low profile bracket,SATA Cable

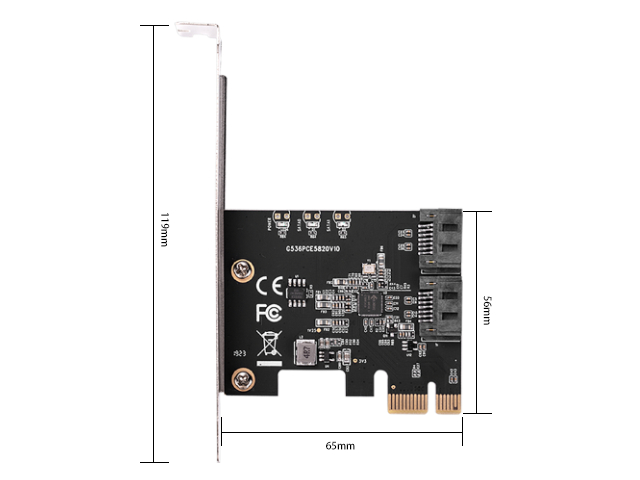

Product Size:

65x56mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
•Supports one lane of PCI Express.
•Complies with PCI Express Base Specification Revision 3.1a.
•Supports PCIe link layer power saving mode.

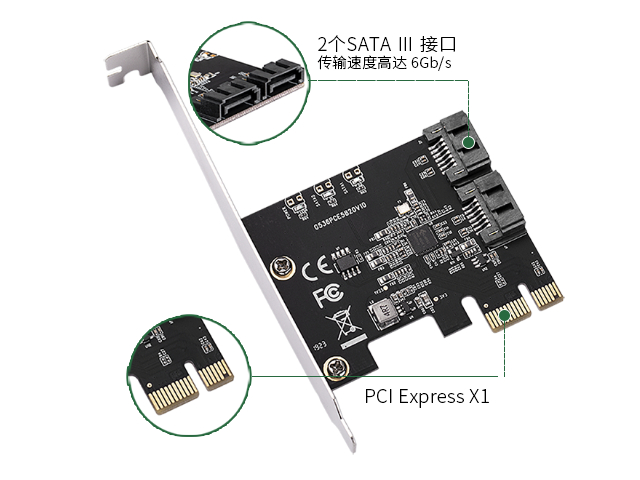

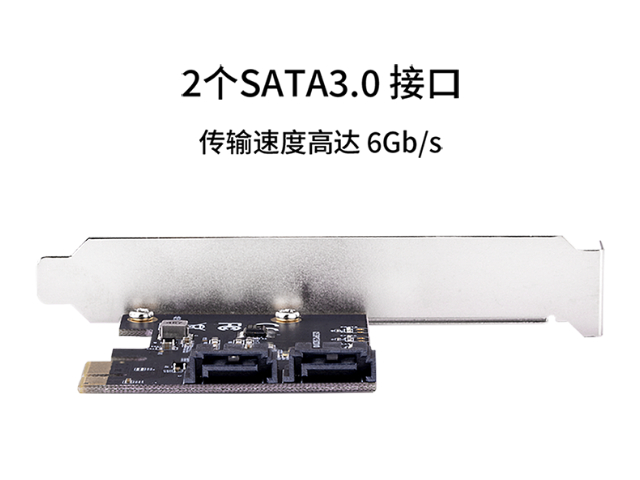

•Supports 2 SATA port.
•Complies with SATA Specification Revision 3.2.
•Supports AHCI mode and IDE programming interface.
•Supports Native Command Queue (NCQ).
•Supports SATA link power saving mode (partial and slumber)
•Supports SATA plug-in detection capable.
•Supports drive power control and staggered spin-up.
•Supports SATA Partial / Slumber power management state.
System Requirements
•Windows 7 (X86/X64)
•Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
•Linux-base OS

•UEFI

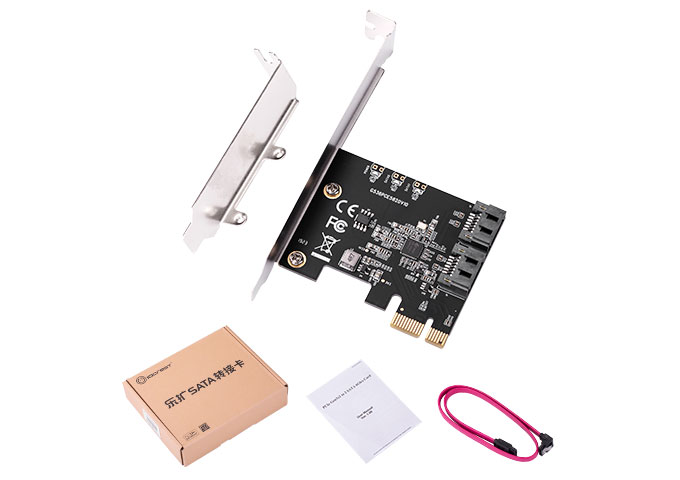

Package Contents
•1 × PCIe Gen3x1 to 2 x SATA 6Gb/s Card
•1 × SATA Cable
•1 × User Manua
•1 x Low Profile bracket

Note: Contents may vary depending on country/market
