PCIe3.0 x 4 to Oculink SFF-8612 Adapter Card,IO-PEX86120_Shenzhen MMUI CO.,Ltd

微信二维码

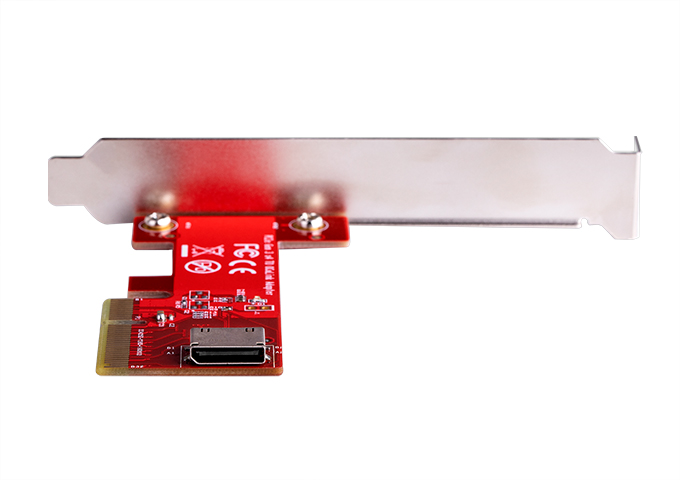

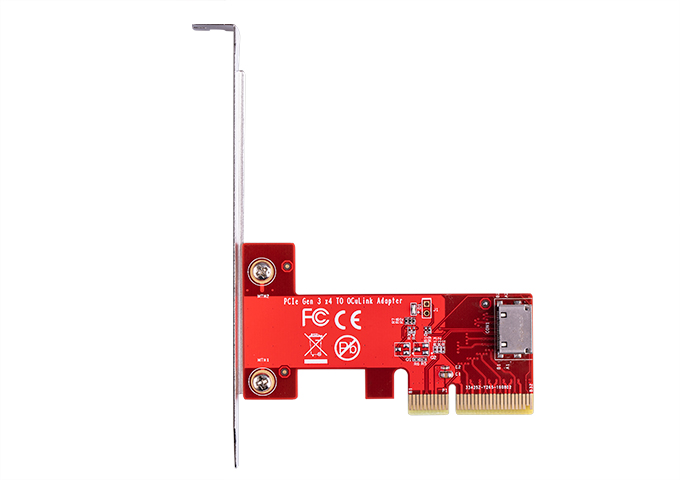

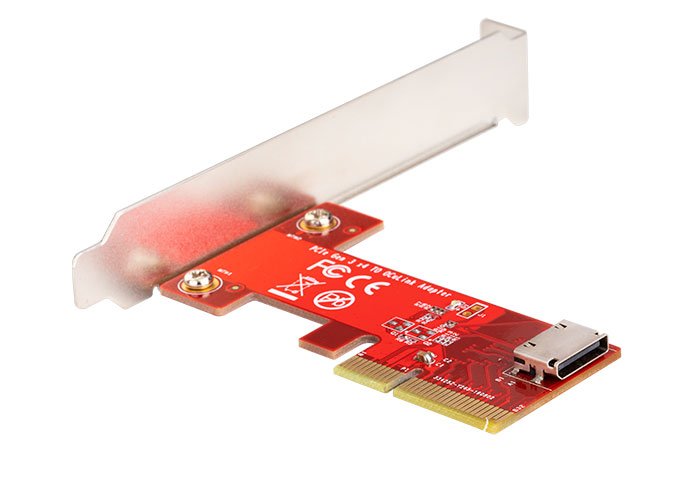

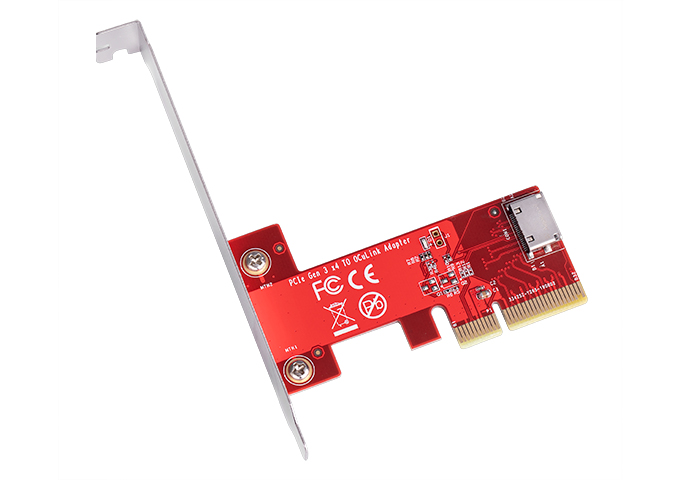

PCIe3.0 x 4 to Oculink SFF-8612 Adapter Card,IO-PEX86120

Oculink(SFF-8612) to PCIe convert,Build in SFF-8612 connector, pin-out defined by PCIe.Compliant with NVME Express 1.2a.Support PCI Express Base Specification Rev 3.0.

Model：

IO-PEX86120

Input Interface：

PCIe3.0 x 4

Output Interface：

Oculink(SFF-8612)

Motherboard Slot：

PCIe

Transmission Rate:

Auxiliary Accessories:

Oculink SFF-8611 to SFF-8639 Cable

Product Size:

80x45mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Oculink(SFF-8612) to PCIe convert

• Build in SFF-8612 connector, pin-out defined by PCIe.

• Compliant with NVME Express 1.2a.

• Support PCI Express Base Specification Rev 3.0

• Support SSD_Form_Factor_Version1_a

• Compliant with SFF-8612 Specification Version 3.5.

System Requirement

• Windows 7,8,8.1,10 or later

• UEFI 2.3.1 or later

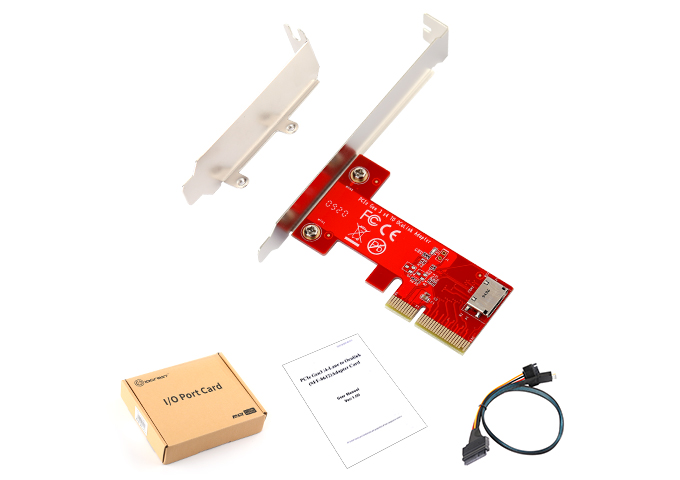

Package Content
• 1 x PCIe Gen3 /4-Lane to Oculink(SFF-8612) Adapter

• 1 x User Manual

• 1 x Oculink SFF-8611 to SFF-8639 Cable

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
