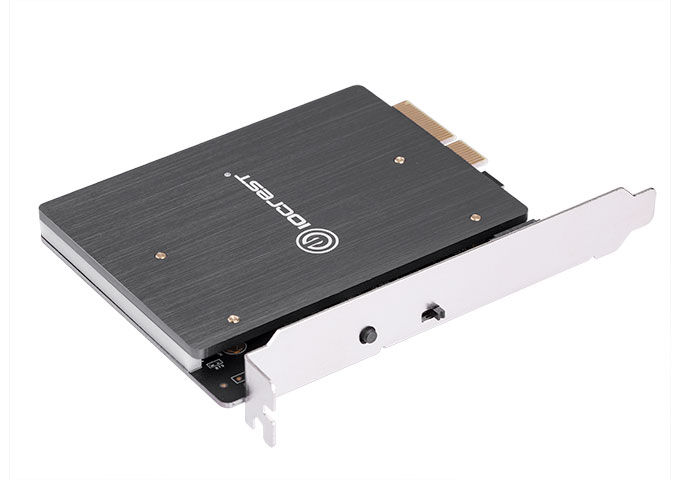

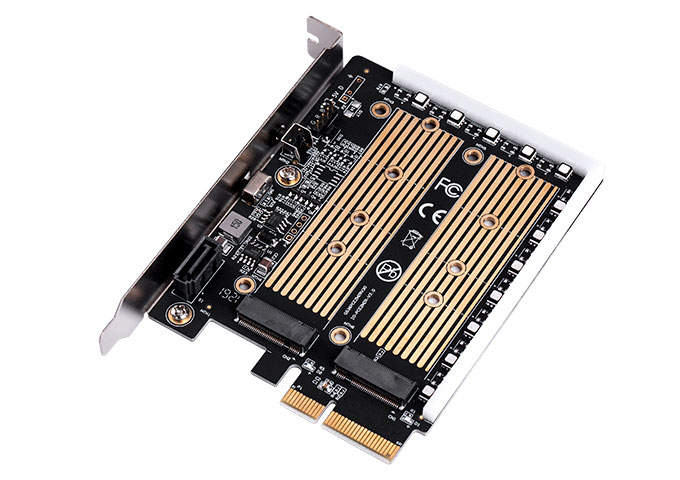

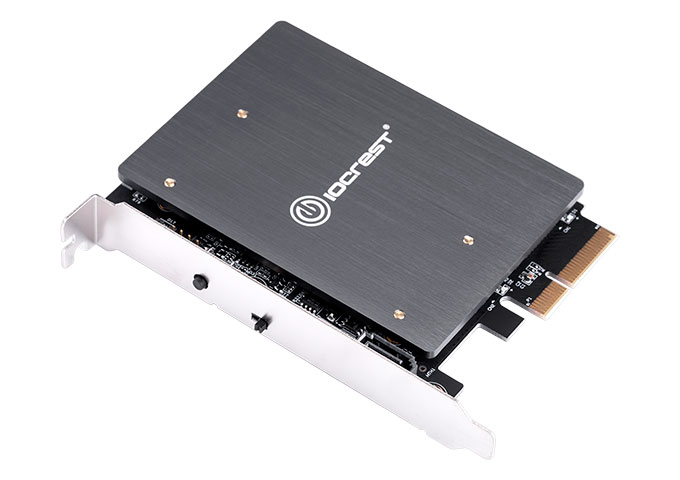

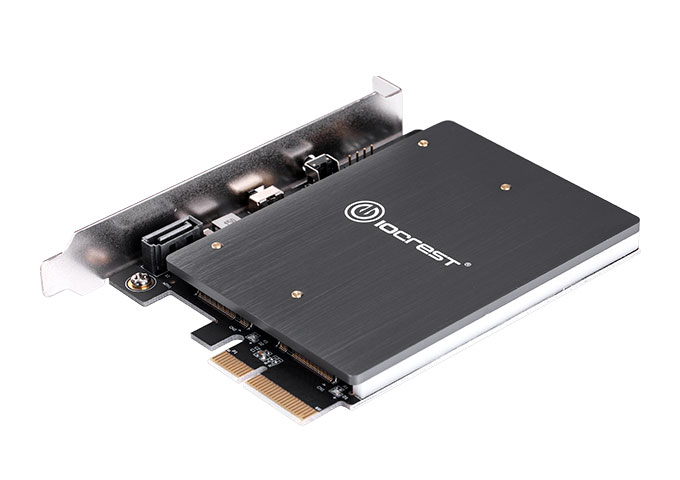

RGB PCIe to M.2 NVMe + SATA Expansion card, IO-PCENSR12

Converts M.2 SSD to work in a main board PCIe x4 slot.Easily fits in PCIe Gen3 x4,x8,x16 slots.Supports 2230, 2242, 2260 and 2280 size SSD.Designed for M.2 One PCIe “M Key”SSD and One SATA “B Key”SSD.

Model：

IO-PCENSR12

Input Interface：

PCIe

Output Interface：

M.2

Motherboard Slot：

PCIe

Transmission Rate:

Auxiliary Accessories:

12V RGB Cable,Screws,Screwdriver

Product Size:

82.7x110.2mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature

• Converts M.2 SSD to work in a main board PCIe x4 slot.

• Easily fits in PCIe Gen3 x4,x8,x16 slots.

• Supports 2230, 2242, 2260 and 2280 size SSD.

• Designed for M.2 One PCIe “M Key”SSD and One SATA “B Key”SSD.

• It has nine color control modes.

• Supports AURA SYNCRGB,MSI Mystic Light,Gigabyte RGB Fusion

Specifications

• PCI Express Base Specification Rev 3.0

• PCI Express Card Electro-Mechanical (CEM) Specification Rev 2.0

• NVM Express 1.3

Operating System Support

• Windows 7/8/8.1/10 64bit

• UEFI 2.3.1 or later

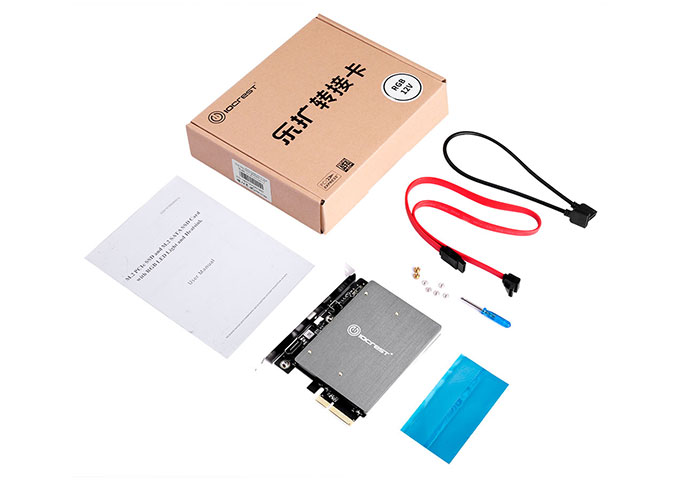

Package Contents

•1×PCIe to M.2（1SATA+1PCIe）Adapter

•1×SATA Cable

•1×12V RGB Cable

•4×Screws

•1×Screwdriver

•1×User Manual

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
