Features

• Supports up to two lane of PCI Express.

• Complies with PCI Express Base Specification Revision 3.1a.

• Supports PCIe link layer power saving mode.

• Supports 5 x M.2(SATA) port.

• Support 5 M.2 （SATA）B-key SSDs

• Complies with SATA Specification Revision 3.2.

• Supports AHCI mode and IDE programming interface.

• Supports Native Command Queue (NCQ).

• Supports SATA link power saving mode (partial and slumber)

• Supports SATA plug-in detection capable.

• Supports drive power control and staggered spin-up.

• Supports SATA Partial / Slumber power management state.

• PCIe x16 interface,PCIe GEN3 x2 bus bandwidth.

System Requirements

▪ Windows 7 (X86/X64)

▪ Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)

▪ Linux-base OS

▪ UEFI

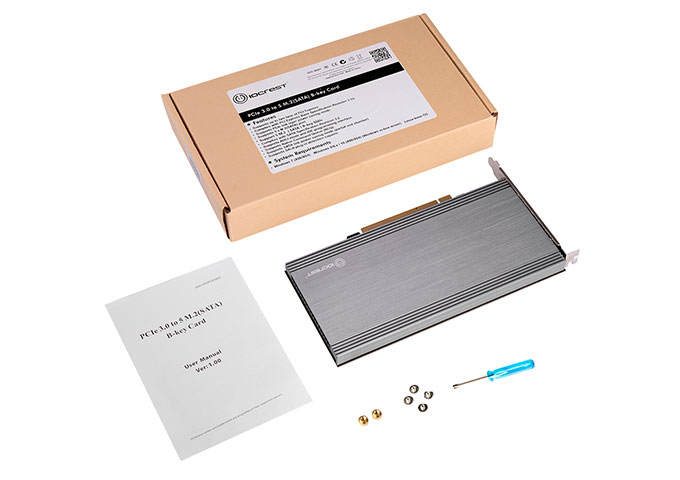

Package Contents

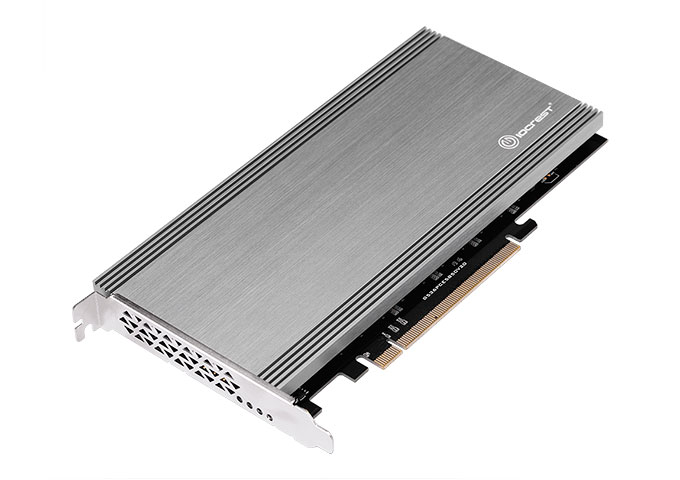

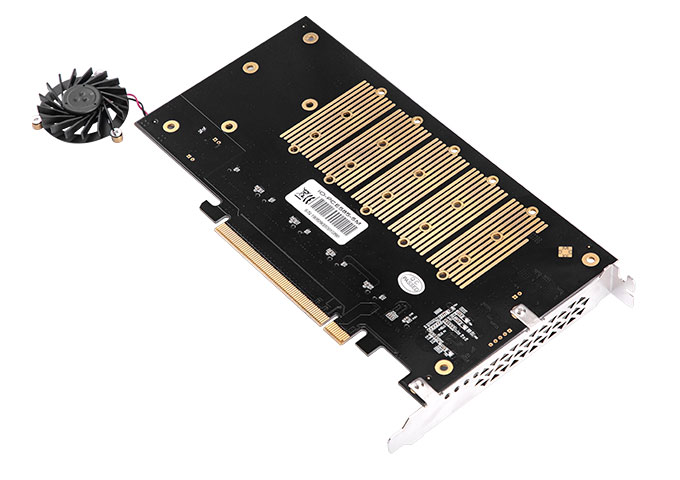

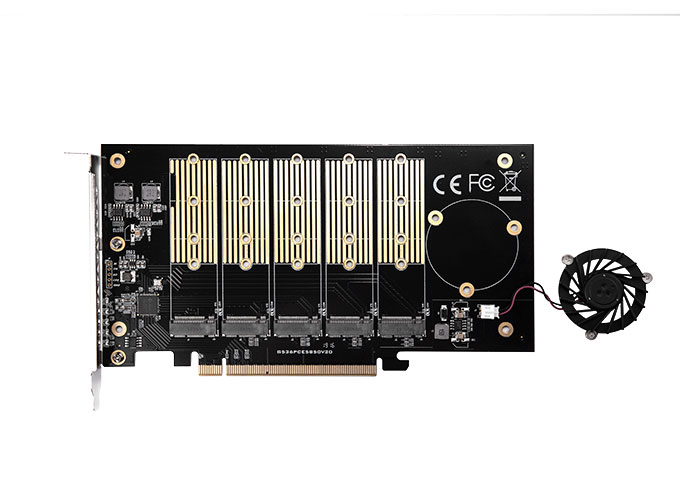

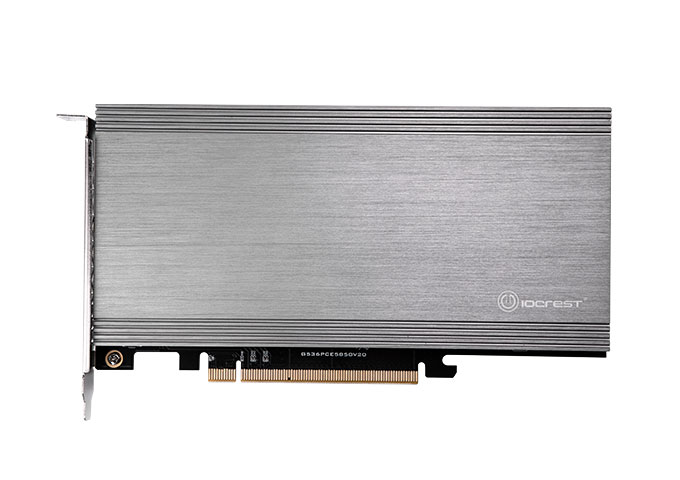

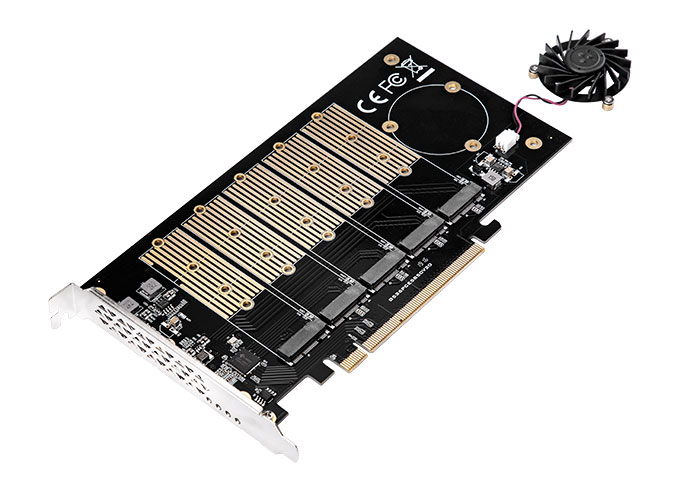

• 1 ×  PCIe X16 (Gen3x2) to 5 x M.2(SATA) Card

• 1 × User Manual
• 1 × Screw Driver
• 5 × Copper Column
• 5 × Silicone Heat Sink
• 10 × NGFF M.2 SSD Mounting Screws

Note: Contents may vary depending on country/market
