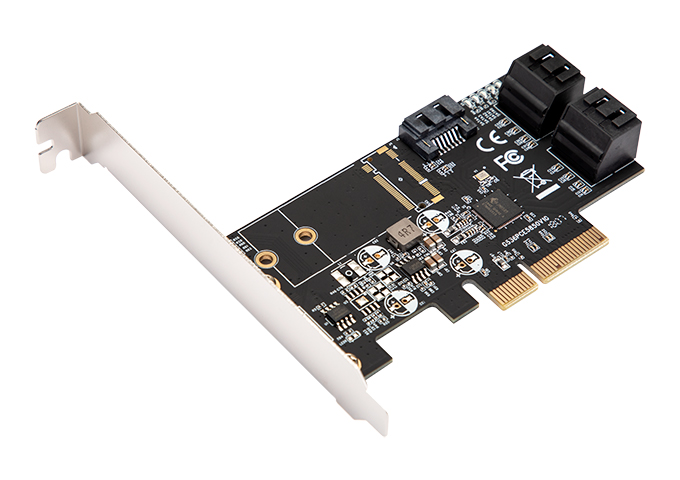

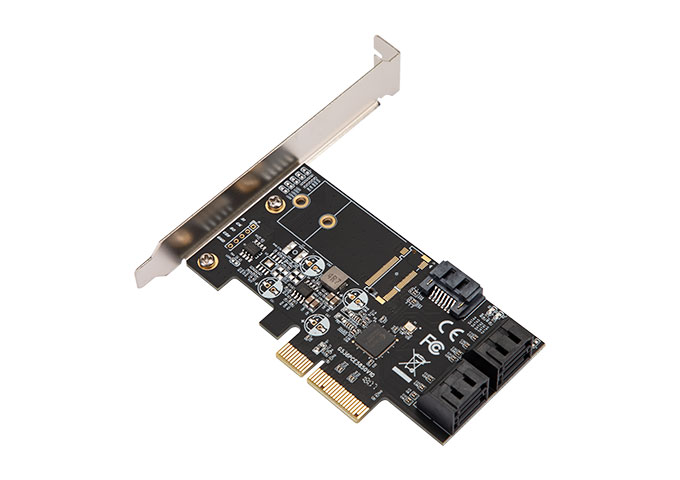

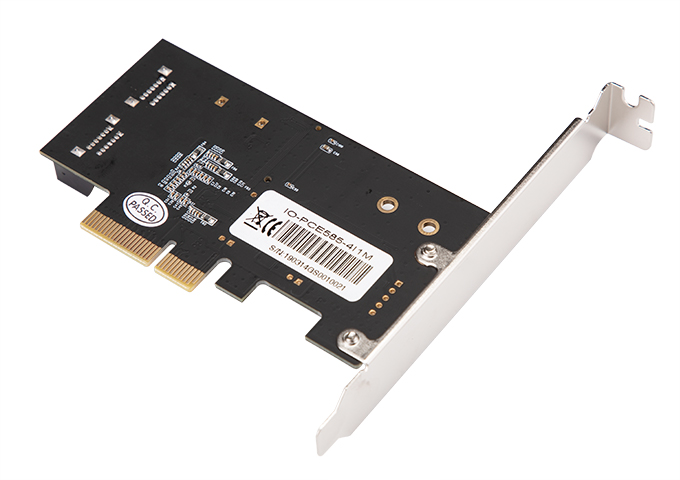

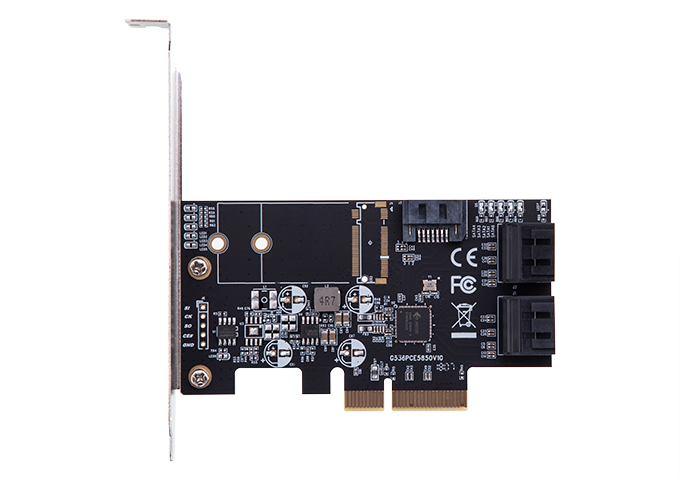

PCIe3.0 to 5 SATA 6Gb/s Card,IO-PCE585-5I

Supports up to two lane of PCI Express.Complies with PCI Express Base Specification Revision 3.1a.Supports PCIe link layer power saving mode.Supports 5 SATA port ,Supports command-based and FIS-based for Port Multiplier.

Model：

IO-PCE585-5I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low profile bracket,SATA Cable

Product Size:

102.8x58.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Supports up to two lane of PCI Express.
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports 5 SATA port
• Supports command-based and FIS-based for Port Multiplier.
• Complies with SATA Specification Revision 3.2.
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.

• Supports Port Multiplier

System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
• Linux-base OS

• UEFI

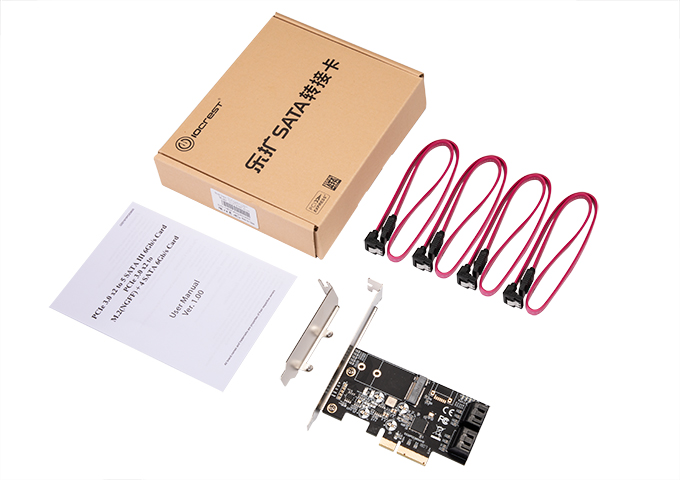

Package Contents
• 1 x PCIe 3.0 to 5 SATA 6Gb/s
• 1 x User Manual
• 3 x SATA Cable
• 1 x Low Profile Bracket
