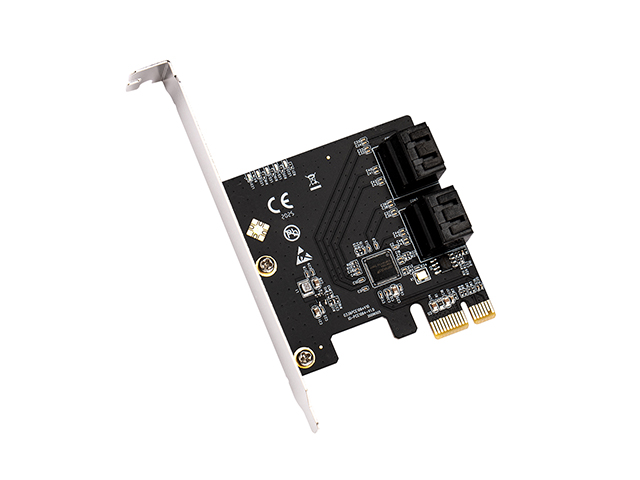

PCIe3.0 to 4 SATA6G Card,IO-PCE1064-4I

1- lane PCle connecting with root port,Complies with PCI Express Base Specification Revision 3.1a,Automatic detection of lane configuration on boot-up,Hot plug and Hot Swap

Model：

IO-PCE1064-4I

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low profile bracket,SATA Cable,Low Profile Bracket

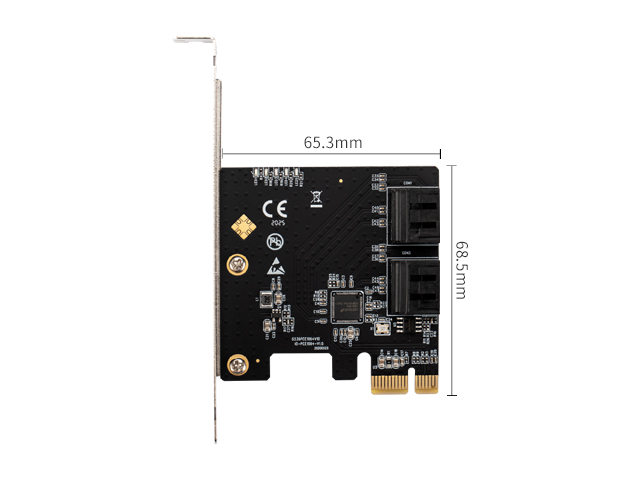

Product Size:

65.3x68.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• 1- lane PCle connecting with root port
• Complies with PCI Express Base Specification Revision 3.1a
• Automatic detection of lane configuration on boot-up
• Hot plug and Hot Swap

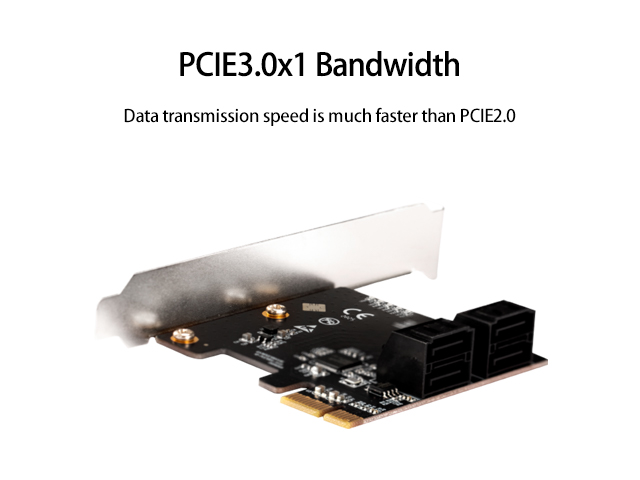

• Supporting transfer rate of 2. 5Gb(250MB/s), 5Gb(500MB/s) or 8Gb(1GB/s) per lane
• Complies with SATA Specification Revision 3.2.
• AHCI SPEC Rev.1.4.

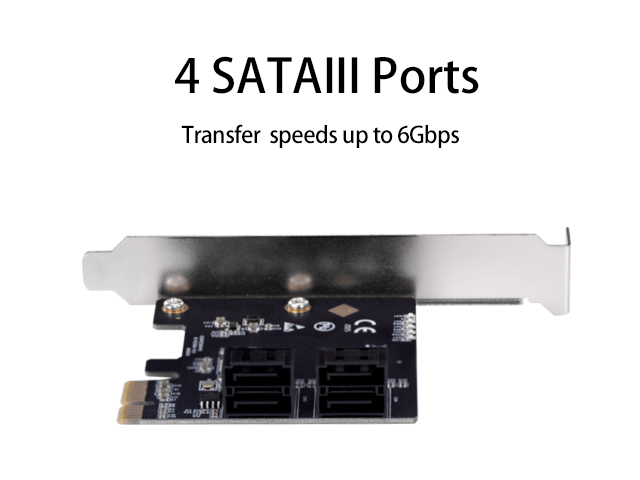

• Supports 4 ports Serial ATA
• Supports Native Command Queue (NCQ)
• Supported port multiplier command based switching
• Support Partial/Slumber power management
• Supports SATA plug-in detection capable
• Supports UEFI(Unified Extensible Firmware Interface)
• Supports SATA Partial / Slumber power management state
• Supports Port Multiplier

System Requirements
•PCI Express-enabled system with one available PCI Express slot
•Windows® 10/8.x/7 (32 / 64 bit)

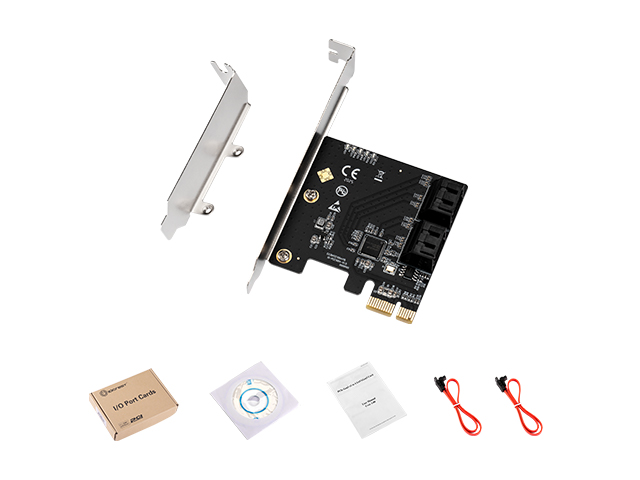

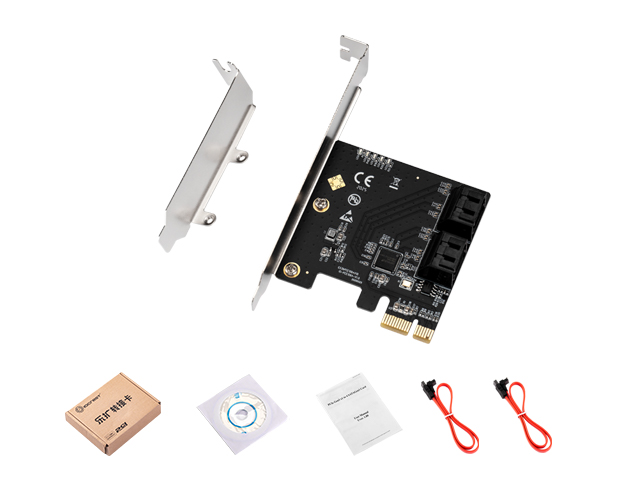

Package Contents
• 1 x PCIe Gen3 x1 to 4 SATA Gen3 Card
• 1 x User Manual
• 2 x SATA Cable
• 1 x Low Profile Bracket
