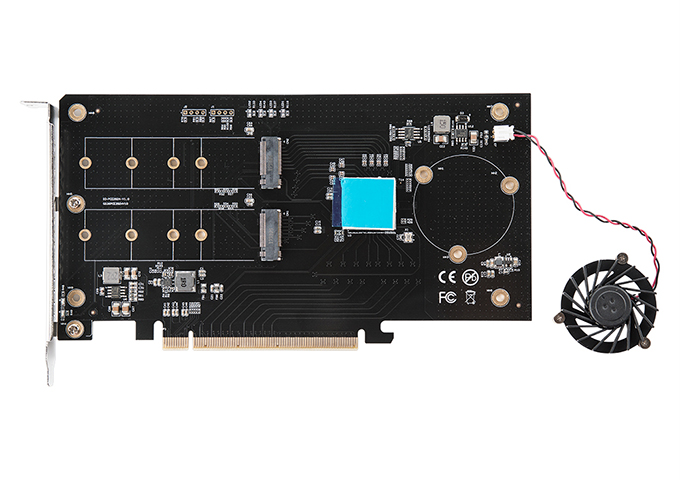

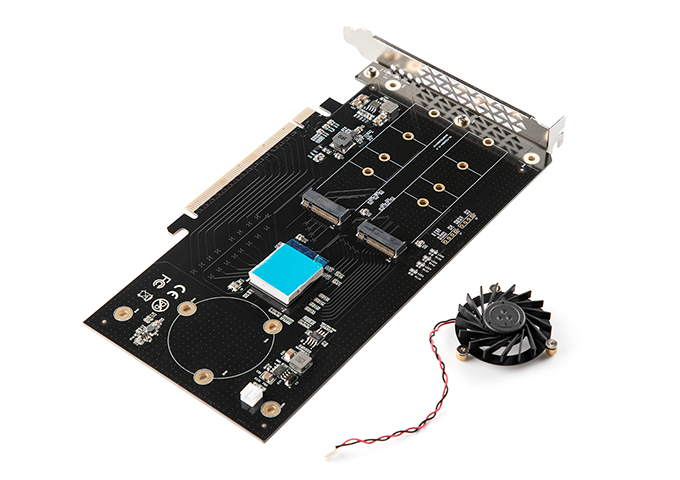

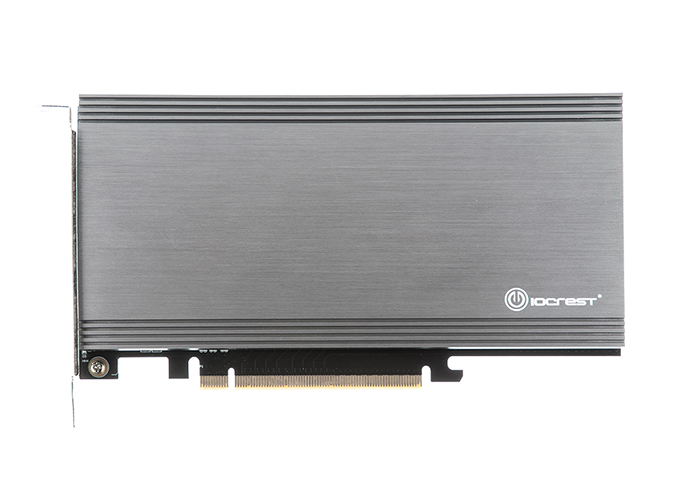

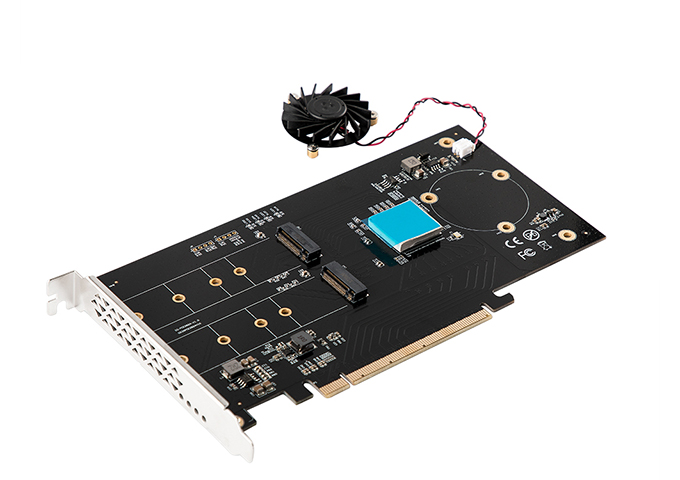

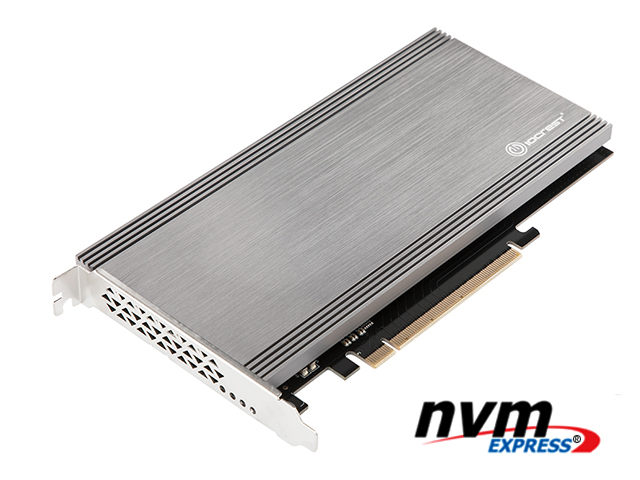

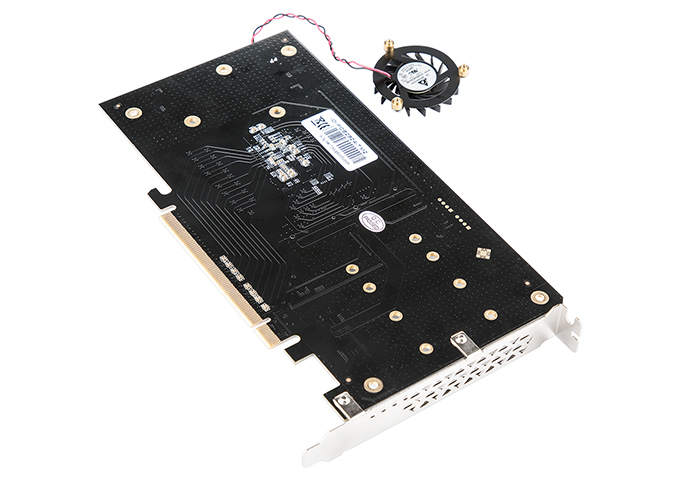

PCIe3.1X16 to 2XM.2 Adapter card,IO-PCE2824-TM2

Dedicated PCIe 3.1 x4 bus bandwidth,Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking,PCI Express 3.1 x16 Lane Host adapte,Support PCIe 3.1,3.0, PCIe 2.0 motherboard,2x PCIe 3.1 x4 to M.2 Ports.

Model：

IO-PCE2824-TM2

Input Interface：

PCIe

Output Interface：

M.2

Motherboard Slot：

PCIe

Transmission Rate:

Auxiliary Accessories:

Screw Drive ,mounting screws

Product Size:

203.7x110.8mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
•2x PCIe 3.1 x4 to M.2 Ports
•Dedicated PCIe 3.1 x4 bus bandwidth
•Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
•PCI Express 3.1 x16 Lane Host adapte
•Support PCIe 3.1,3.0, PCIe 2.0 motherboard
•Compliant with PCI Express M.2 specification 1.0
•Supports data transfer up to 2.5Gb/s,5Gb/s,8Gb/s
•Connects PCIE motherboard to NGFF M Key SSD
•Supports 2230, 2242, 2260, 2280 size NGFF SSD
•8 screw holes available to fix PCB board
•Easy installation & no driver required
•Independent, Stand Alone NVMe SSD Solution
•Smart PCIe Switching Built-In
•Robust, Compact & Efficient – Shield & Cool Your SSD’s
System Requirements
•Supports Windows 7,8,8.1 and 10
•Windows server 2K8,2K12,2K16
•Linux Kernel 3.3 or later

•Mac

Package Contents
•1 x PCIe x 16 to 2 x M.2(M-Key) card
•1 x User Manual
•2 x Screw Drive
•4 x NGFF M.2 SSD mounting screws
