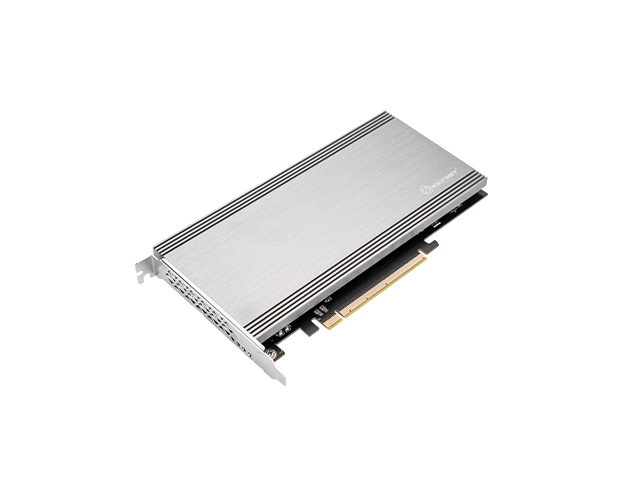

PCIe3.0X16 to 2 M.2(NVME) Hardware RAID Card,IO-PCE2241-2IR

2 x PCIe 3.0 x4 to M.2 Ports,Dedicated PCIe 3.1 x4 bus bandwidth,Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking,PCI Express 3.1 x16 Lane Host adapte

Model：

IO-PCE2241-2IR

Input Interface：

PCIe

Output Interface：

M.2

Motherboard Slot：

PCIe

Transmission Rate:

2.5Gb/s,5Gb/s,8Gb/s

Auxiliary Accessories:

Screw Drive ,M.2 SSD mounting screws

Product Size:

203.7x110.8mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

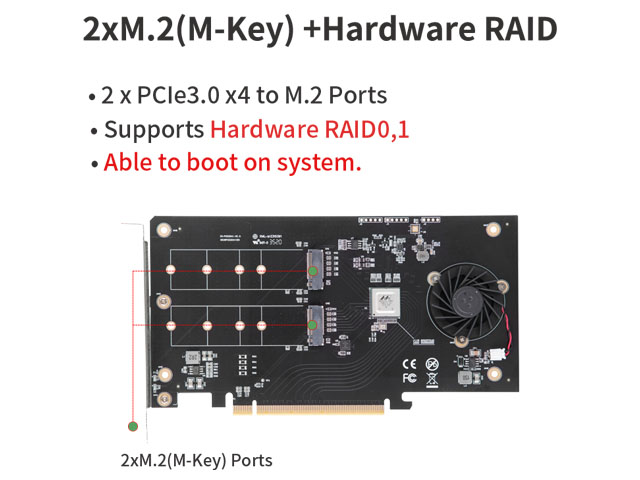

• 2 x PCIe 3.0 x4 to M.2 Ports

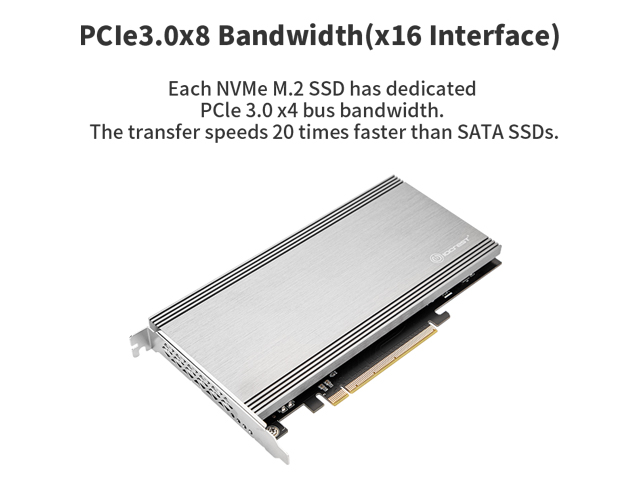

• Dedicated PCIe 3.1 x4 bus bandwidth
• Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
• PCI Express 3.1 x16 Lane Host adapte
• Support PCIe 3.1,3.0, PCIe 2.0 motherboard
• Compliant with PCI Express M.2 specification 1.0
• Supports data transfer up to 2.5Gb/s,5Gb/s,8Gb/s
• Connects PCIE motherboard to NGFF M Key SSD
• Supports 2230, 2242, 2260, 2280 size NGFF SSD
• Supports Hardware RAID 0、1
• 8 screw holes available to fix PCB board
• Easy installation & no driver required
• Independent, Stand Alone NVMe SSD Solution
• Smart PCIe Switching Built-In

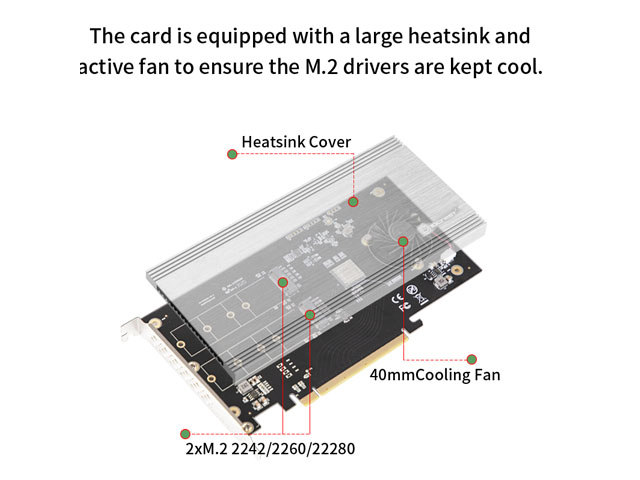

• Robust, Compact & Efficient – Shield & Cool Your SSD’s
System Requirements
• Windows OS
• Mac OS
• Linux 3.3 or later

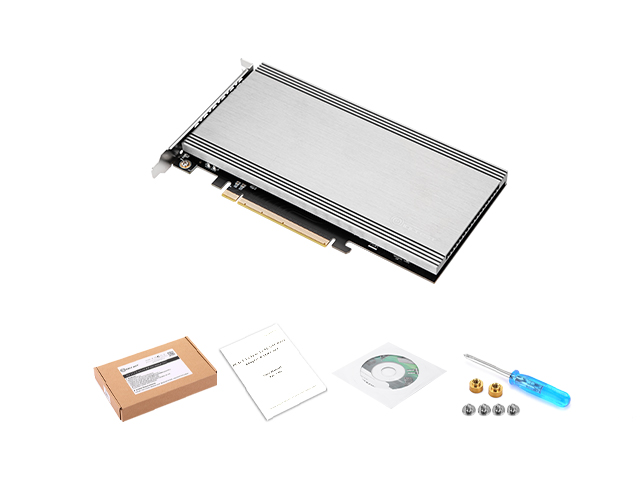

Package Contents
• 1 x PCIe x 16 to 2 x M.2(M-Key) card
• 1 x User Manual
• 2 x Screw Drive
• 5 x NGFF M.2 SSD mounting screws
