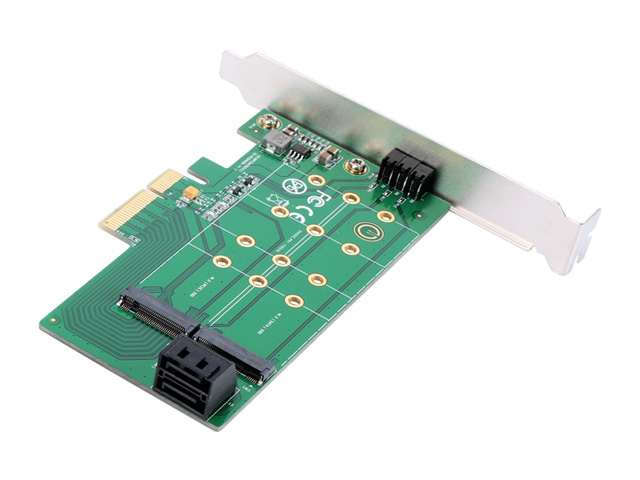

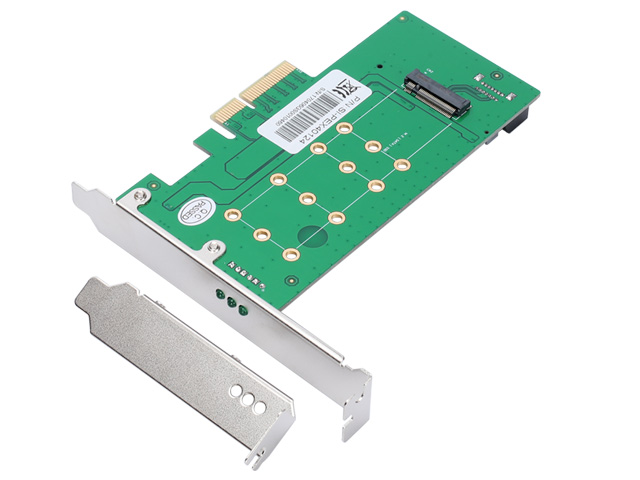

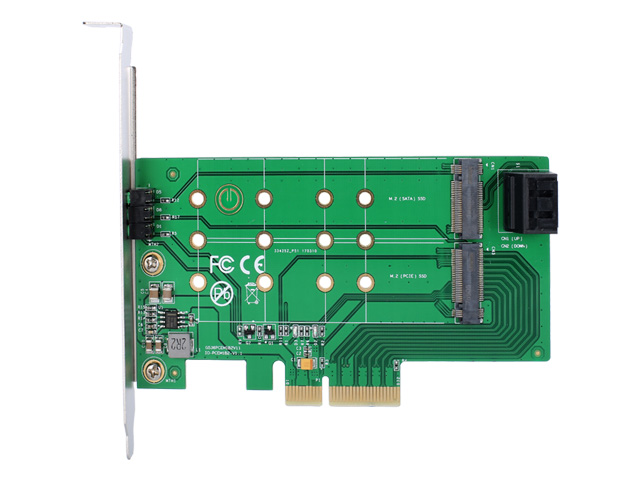

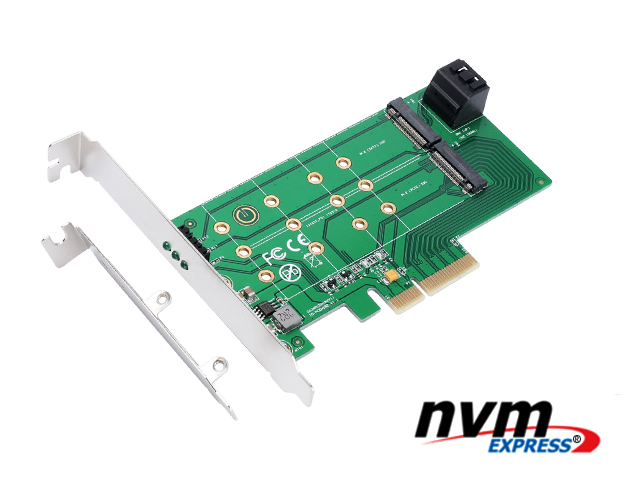

PCIe x 4 to NGFF(PCIe) SSD+SATA to 2 x NGFF(SATA)adapter card,IO-PCE4X-2B1M

Supports PCIe x4 or x8 or x16 slot,Compliant with PCI Express M.2 specification 1.0,Compliant with SATA III specification,Serial ATA Spec. Reversion 3.2,Supports data transfer up to 6.0Gb/s

Model：

IO-PCE4X-2B1M

Input Interface：

pci express x4

Output Interface：

M.2 and SATA

Motherboard Slot：

Transmission Rate:

Auxiliary Accessories:

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Supports PCIe x4 or x8 or x16 slot
• Compliant with PCI Express M.2 specification 1.0
• Compliant with SATA III specification
• Serial ATA Spec. Reversion 3.2
• Supports data transfer up to 6.0Gb/s
• Connects SATA motherboard to NGFF B Key SSD
• Connects PCIE motherboard to NGFF M Key SSD
• Supports SATA-based NGFF SSD
• Supports 2230, 2242, 2260, 2280 size NGFF SSD
• Two NGFF M.2 B Key socket and one NGFF M.2 M Key socket available
• 5 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card
• 5 screw holes available to fix PCB board
• Easy installation & no driver required

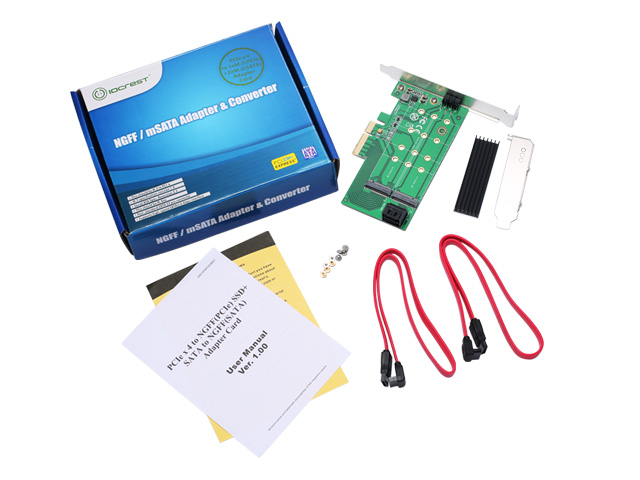

Package Contents
1 x PCIE x 4 to NGFF(PCIe) SSD+SATA to 2 x NGFF(SATA)adapter card
1 x User Manual
1 x Heat sink
2 x SATA Cable
3 x Screw Drive
6 x NGFF M.2 SSD mounting screws

System Requirements:
• Supports any OS, like Windows, Win CE and Linux etc
