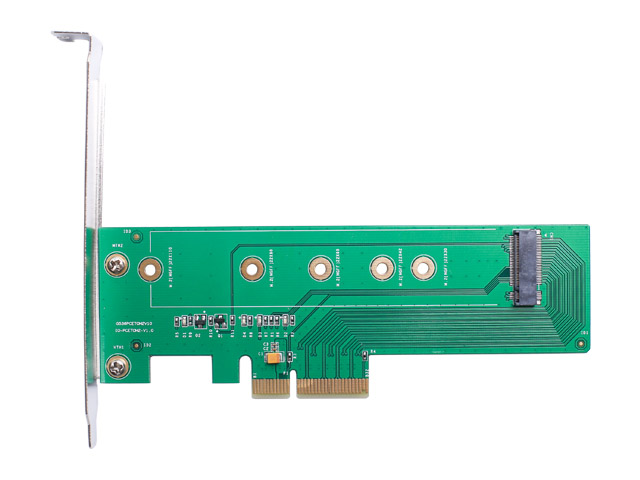

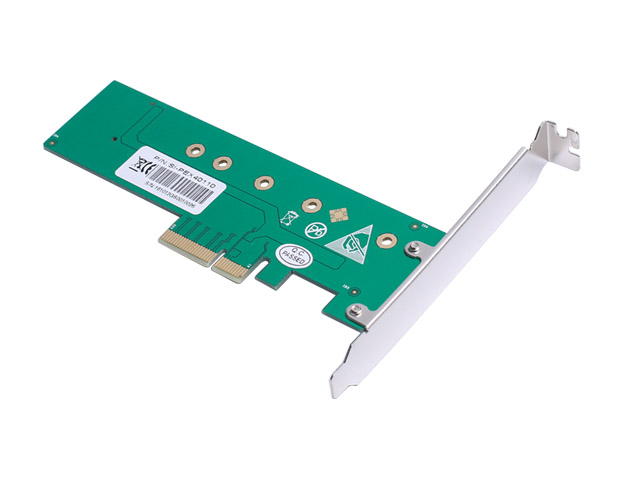

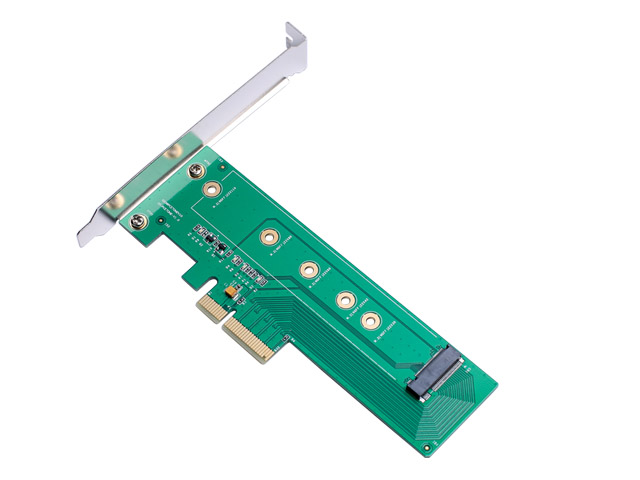

PCIex4 to M.2 Adapter,IO-PCE4X-M2

Convert M.2 NGFF PCI-e based SSD to work in main board PCI-e x4/8/16 bus slot,PCI Express x4 Lane Host adapter;Supports PCI-e Gen4/Gen3/Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD.

Model：

IO-PCE4X-M2

Input Interface：

PCIe

Output Interface：

M.2

Motherboard Slot：

PCIe x4/8/16

Transmission Rate:

Auxiliary Accessories:

Screws(M.2)

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Convert M.2 NGFF PCI-e based SSD to work in main board PCIe x4/8/16 bus slot
• PCI Express x4 Lane Host adapter;
• Supports PCI-e Gen4/Gen3/ Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD
• Supports PCI-e 1.0 ,PCI-e 2.0,PCI-e 3.0,PCI-e 4.0 motherboard
• Low Profile PCI-e Form Factor

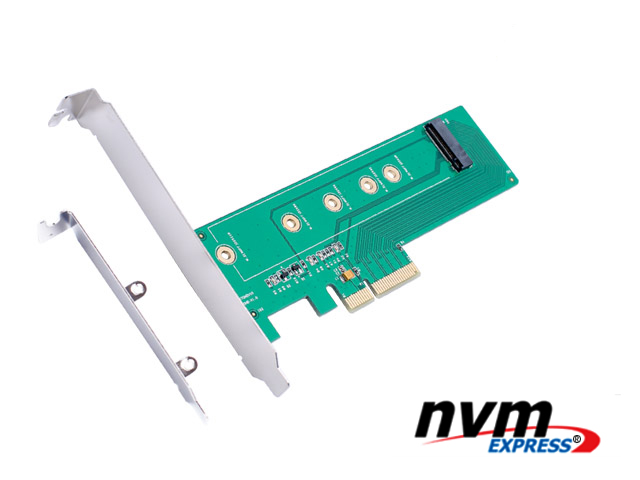

• Regular size PCI-e bracket on board and Low Profile bracket included
• Transparent to the operating system and no driver required
• Supports any OS like Windows, Mac and Linux
• Supports industrial operating temperature range: -40 - 85 ºC
Note: M.2 SATA based SSD CANNOT work with this PCI-e based Adapter
System Requirements
• Windows 2000/XP/2003/2008/Vista/7/8/8.1/10
• Linux, MAC OS

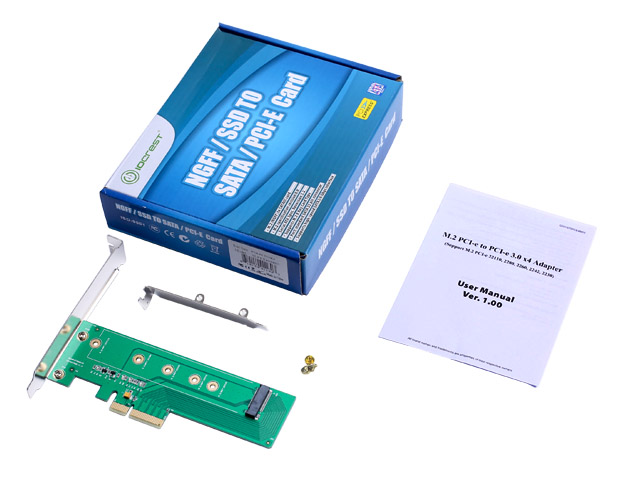

Package Contents
• 1 × M.2 PCIe TO PCIe x4 Adapter
• 1 × User Manual
• 2 × Screws(M.2)
Note: Contents may vary depending on country/market
