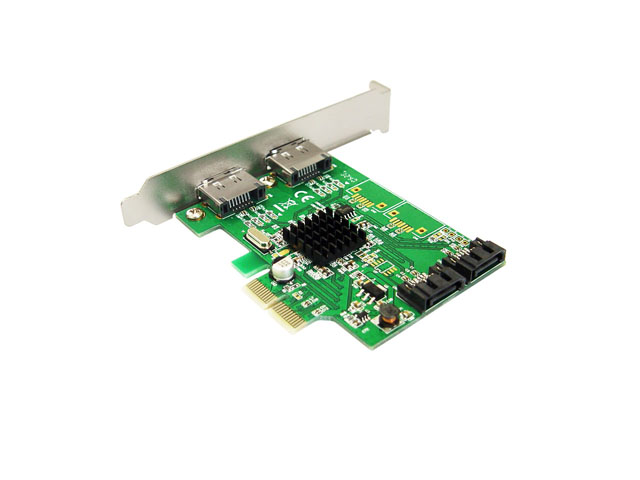

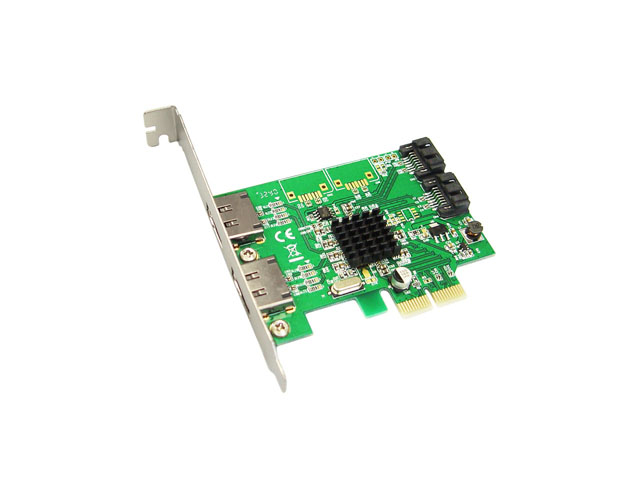

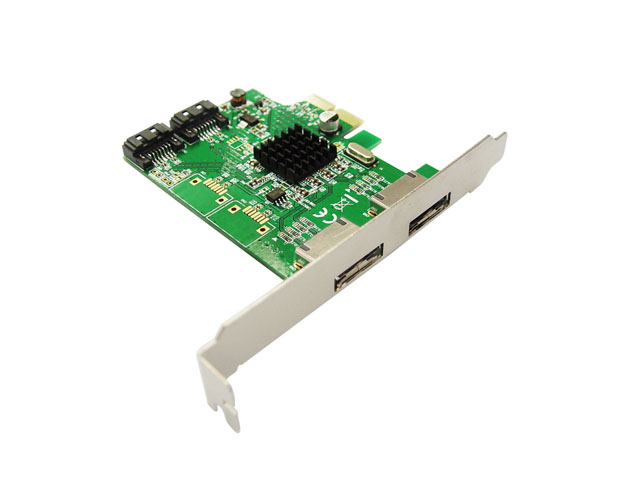

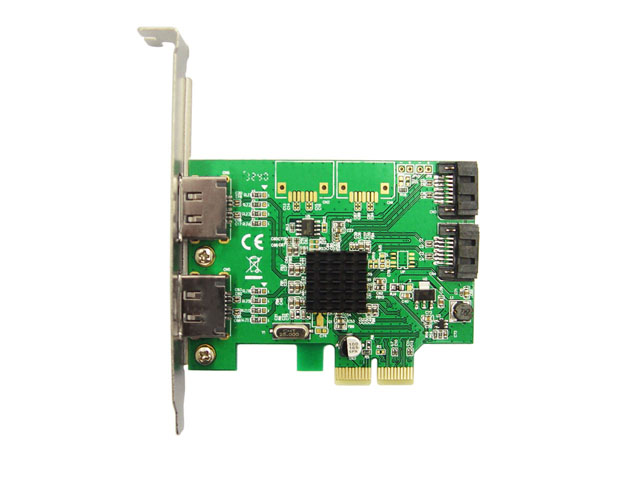

PCIe to 2 External SATA and 2 Internal SATA III 6G Raid Card,IO-PCE9230-2E2R

Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.x,Compliant with Serial ATA Specification 3.0,PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.Supports communication speeds of 6.0 Gbp

Model：

IO-PCE9230-2E2R

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low profile bracket,SATA Cable

Product Size:

88x69mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation
Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.x
Compliant with Serial ATA Specification 3.0
PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS based switching or command based switching.
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Support RAID function: RAID 0, RAID 1,RAID10,and HyperDuo.
Package Contents
1 x SATA III (6Gbps) 4-port PCI-Express Controller Card
1 x User Manual
2 x SATA Cable
1 x Driver CD
1 x Low Profile Bracket
System Requirements
Supports WindowsXP/Vista/7/8/Server 2008 R2 / 8，Linux 2.6.x and above

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
