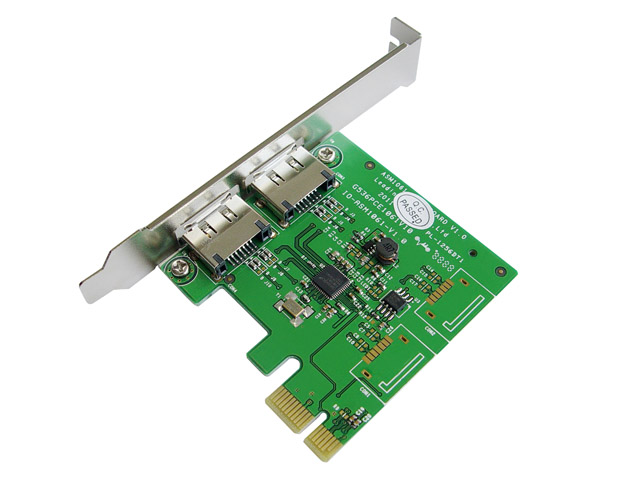

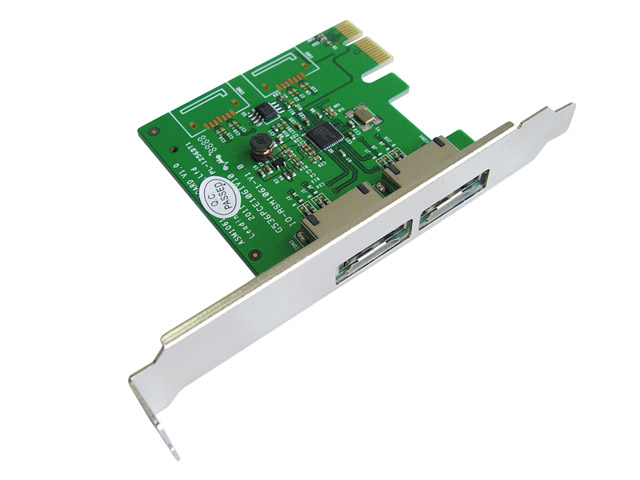

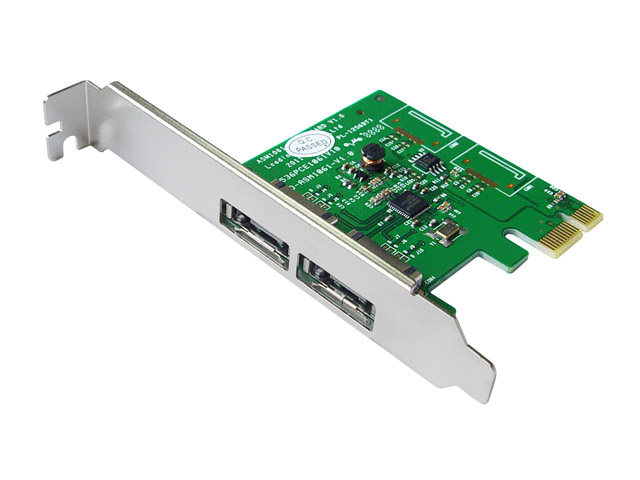

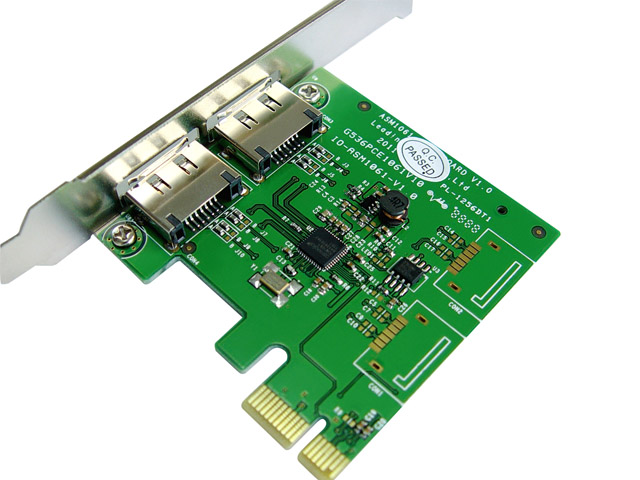

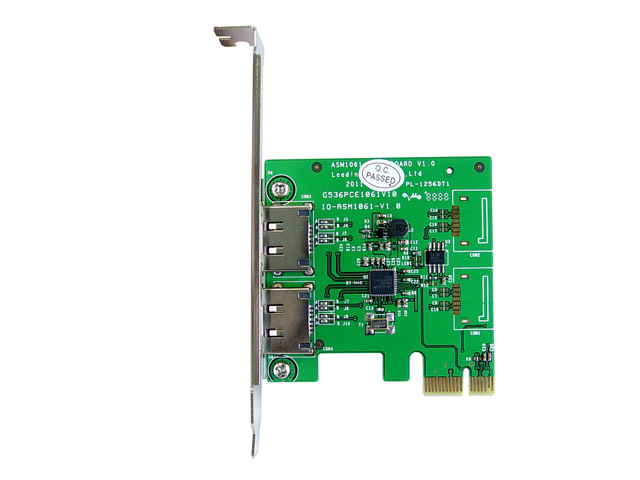

PCIe to 2 port External eSATA6Gbps Ports Controller Card,IO-PCE1061-2E

Compliant with PCI-Express Specification V2.0 and Backward Compatible with PCI-Express 1.x,Compliance Serial ATA AHCI Spec. Rev. 1.3, Serial ATA Rev. 3.0,Supports Hot Plug and Hot Swap.

Model：

IO-PCE1061-2E

Input Interface：

PCIe

Output Interface：

eSATA III

Motherboard Slot：

PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low Profile Bracket

Product Size:

L 1 x W 5 x H 7 inch

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation

ASM1061 Chipset (Asmedia 1061 SATA Host Controller)
Compliant with PCI-Express Specification V2.0 and Backward Compatible with PCI-Express 1.x
Compliance Serial ATA AHCI Spec. Rev. 1.3, Serial ATA Rev. 3.0
Supports Hot Plug and Hot Swap
Supports Communication Speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
Supports 2 Ports Serial ATA
Supports Native Command Queue (NCQ)
Supports Port Multiplier

Package detail

Package Info

Dimension: L 1 x W 5 x H 7 inch
Weight: 0.3 lb
UPC: 810154017775

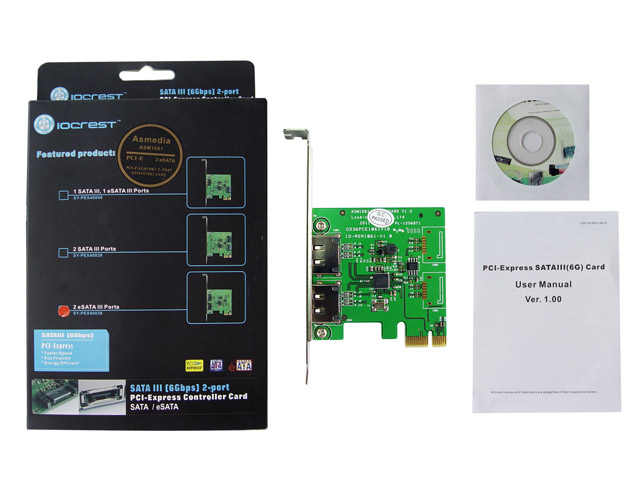

Package Includes

eSATA III (6Gbps) External 2-port PCI-E Card
User Manual
Driver CD

Software requirement

Windows 7 (32/64bit)
Vista
Server 2003
Windows XP
Windows 2000

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
