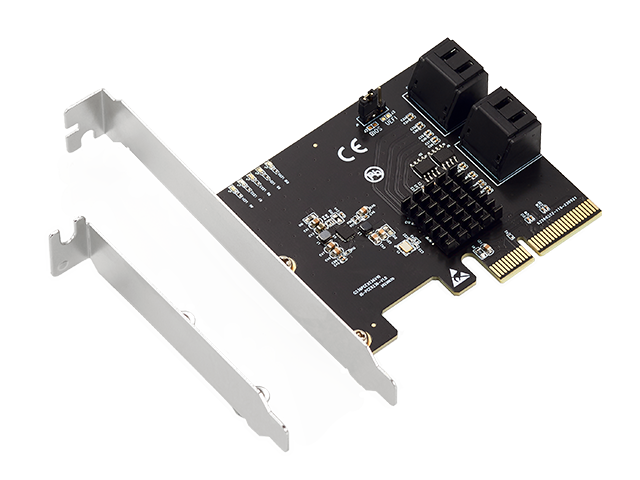

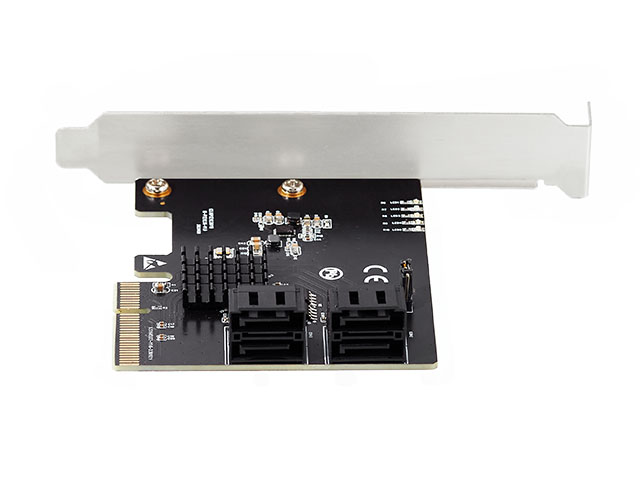

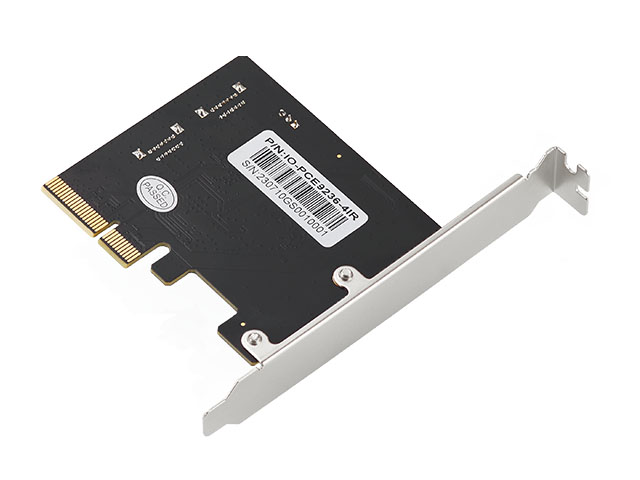

PCIe 2.0 to 4 Ports SATA6G RAID Card,IO-PCE9236-4IR

PCIe 2.0 endpoint device,Compliant with PCI-Experss Specification v2.0,Supports communication speed of 2.5 Gbps and 5 Gbps,Supports AHCI programming interface registers for the SATA controller.

Model：

IO-PCE9236-4IR

Input Interface：

PCIe

Output Interface：

SATA

Motherboard Slot：

PCIeX4/X8/X16

Transmission Rate:

6Gbps

Auxiliary Accessories:

Low profile bracket，SATA Cable

Product Size:

79.2x64mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• PCIe 2.0 endpoint device
• Compliant with PCI-Experss Specification v2.0
• Supports communication speed of 2.5 Gbps and 5 Gbps
• Supports BIOS and UEFI programming interface registers for the SATA controller
• Supports error reporting.recovery and correction
• Supports Message Signaled Interrupt(MSI)
• Compliant with Serial ATA Specification 3.1
• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps
• PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.
• Supports Native Command Queue (NCQ)
• Supports Port Multiplier FIS based switching or command based switching.
• Supports Staggered Spin-up
• Support hardware RAID function: RAID 0, RAID 1,RAID10.
• Note: Not Supported RAID on PM
System Requirements
• Windows/Vista/7/8/10;Server 2008 R2/8, Linux 2.6.x and above

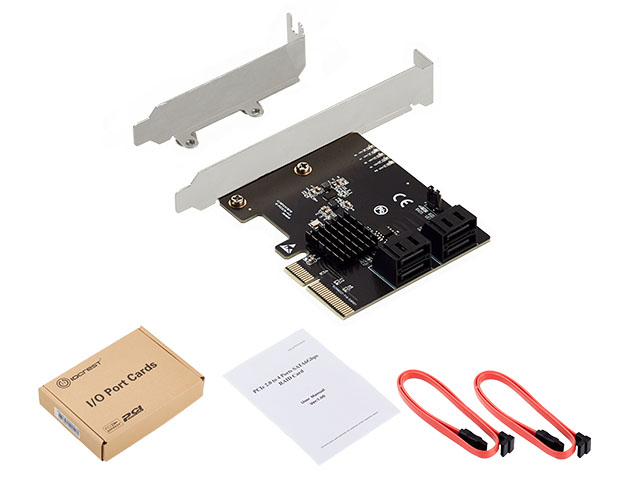

Package Contents
• 1 x PCIe 2.0 to 4 Port SATA6G RAID Card
• 1 x User Manual
• 2 x SATA Cable
• 1 x Low Profile Bracket
Note: Contents may vary depending on country and market.
