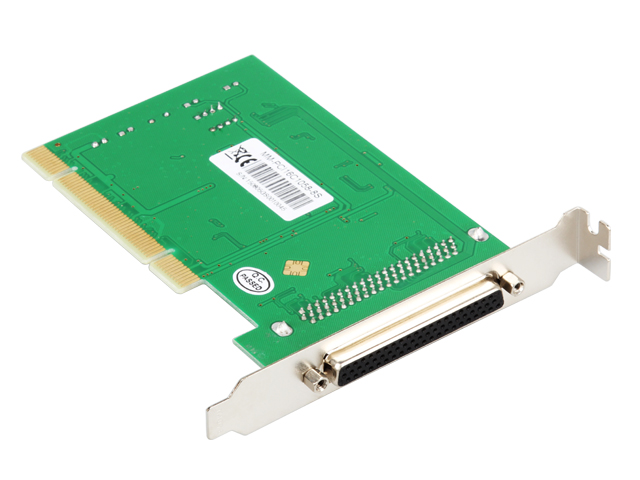

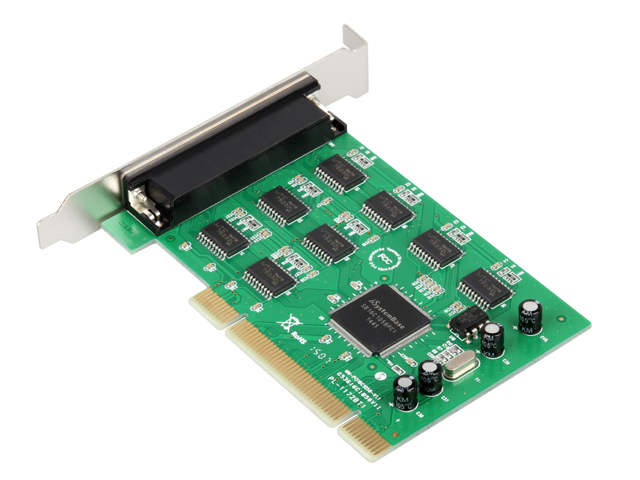

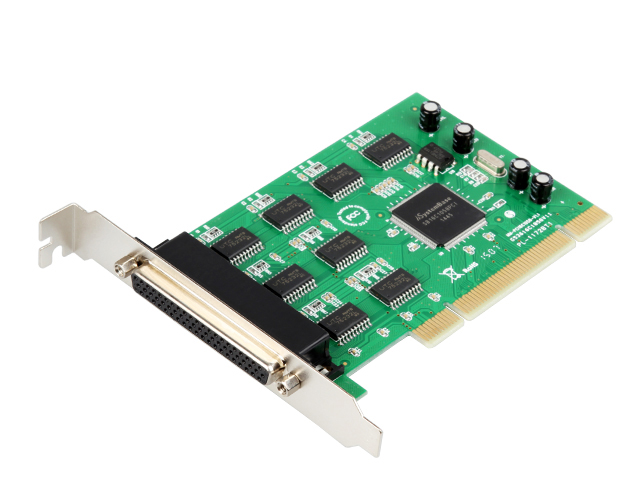

PCI to 8 Ports RS-232 Serial Controller Card,MM-PCI16C1058-8S

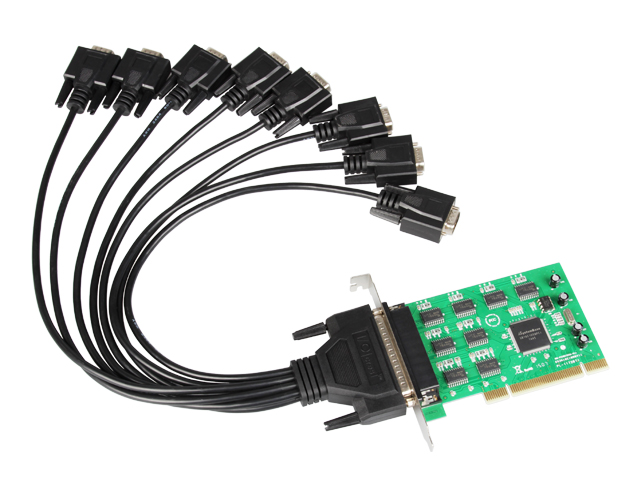

Extend out eight DB9 serial row lines in the computer with PCI slots

Model：

MM-PCI16C1058-8S

Input Interface：

PCI

Output Interface：

RS232

Motherboard Slot：

PCI

Transmission Rate:

926.1Kbps

Auxiliary Accessories:

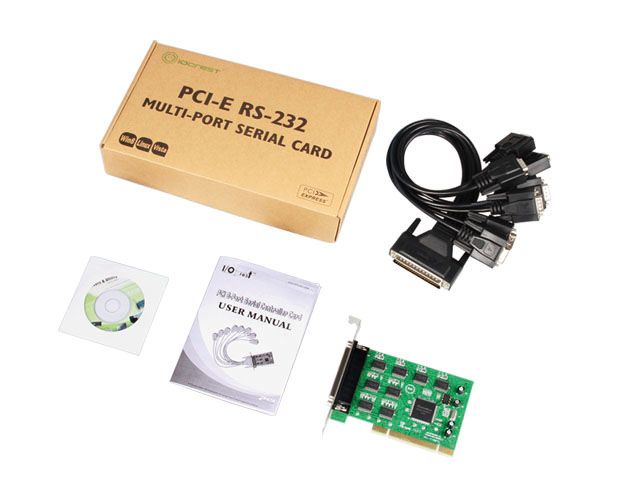

Fan-out cable,Driver CD

Product Size:

120X78.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

Compliant with PCI local specification revision2.3
Supports 8*UART serial port
Data transmission speed up to 926.1Kbps.Surge Protection and Optical isolation available as options
I/O Controller:Built-In eight improved 16C550 UART with 256-byte Deep FIFO
By using automatic data transfers and assign IRQ&I/O address
Supports IRQ share for PCI
No need switches and jumpers,all the settings will be done by software

System Requirements
Supports OS:DOS LINUX2.4 LINUX2.6 WIN98 WIN2000 WINXP32/64 WIN2003 VISTA WIN2008 WIN7
Avaliable PCI slot
