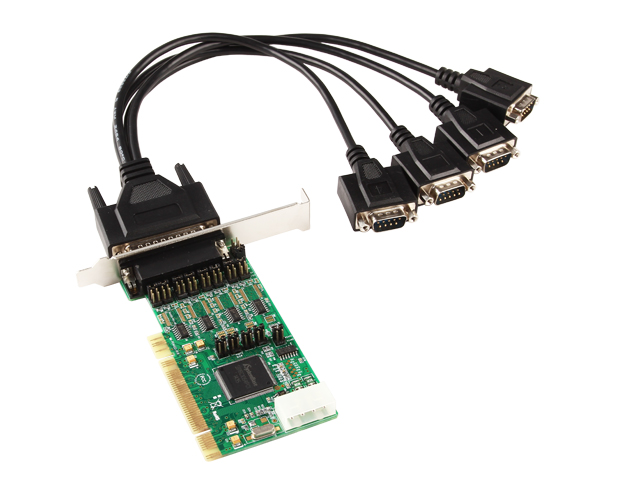

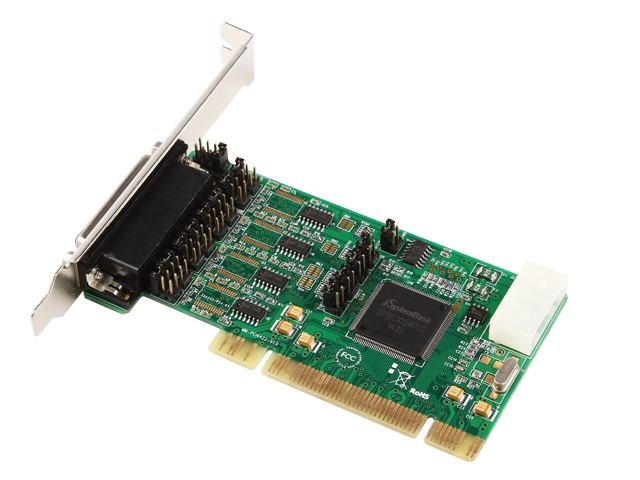

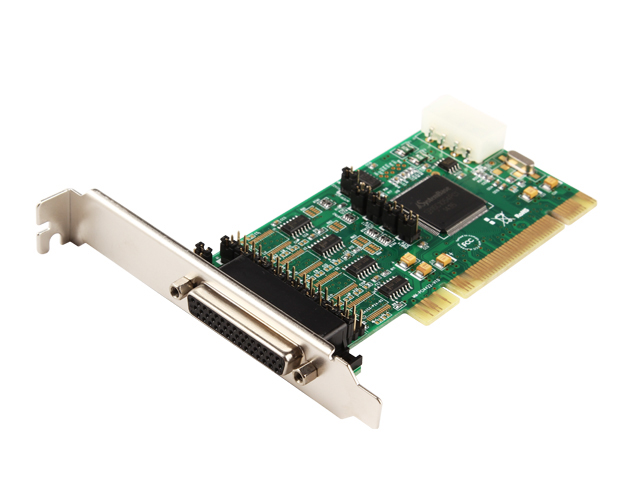

PCI to 4 port RS422/485 DB-9 Card,MM-PIO4422-4S

Automatic IRQ and I/O Address Selection (Does Not Support Legacy Address Re-mapping),Supports PCI IRQ Sharing - Saves Valuable Resources for Other Expansion Cards,Support 32-bit PCI Bus, PCI Specification Revision 2.3

Model：

MM-PIO4422-4S

Input Interface：

PCI

Output Interface：

RS422/485

Motherboard Slot：

PCI

Transmission Rate:

921.6Kbps

Auxiliary Accessories:

Fan-out cable,Driver CD

Product Size:

120x61mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation

Automatic IRQ and I/O Address Selection (Does Not Support Legacy Address Re-mapping)

Supports PCI IRQ Sharing - Saves Valuable Resources for Other Expansion Cards

Support 32-bit PCI Bus, PCI Specification Revision 2.3

Supports On-chip Hardware Flow Control Resistors Guarantee Data Integrity

Supports More than One Card in a System

Build-in Improved 16C550 Compatible UART with 16 byte Transmit-receive 256-byte Deep FIFO

Fast Data Rate up to 921.6 Kbps

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Signal:

2 Wire RS-485: Data+, Data-, GND
4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GNDOperating Temperature: 0 to 55C

Operating Humidity: 5 to 95% RH

Built-in 4-pin Power Connector Provides Extra Power When Connected to the System Power Supply (Recommended). Jumper Setting Options for 5V or 12V

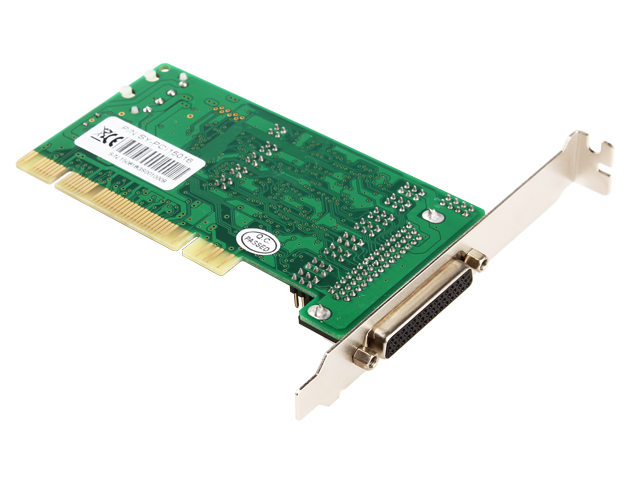

Female DB62 Connector on card for 4x DB9 Fan-out Cable

Package details

Package Info

Dimension: L 7 x W 5.5 x H 1.5 inch

Weight: 1 lb

UPC: 810154012855

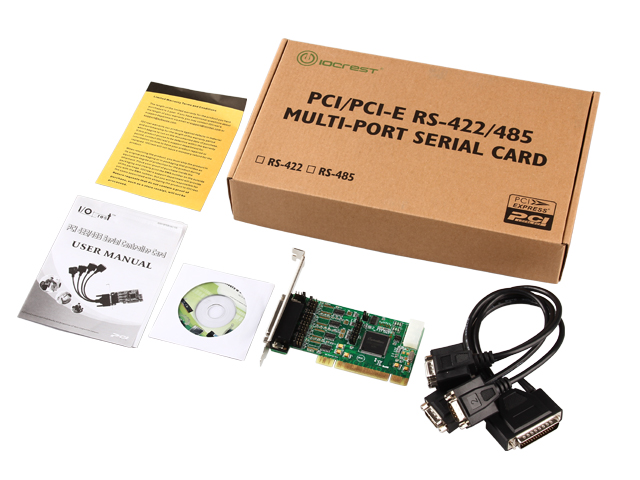

Package Includes

RS422/485 4-port PCI Serial Card

DB62 to 4x DB9 Fan-out Cable

Driver CD

User Manual

Software requirement

Windows 7,XP,2003,2000,Server 2003,Windows 95/98/ME,Windows NT

Vista

Linux 2.4, 2.6

DOS
