PCI to 4 Ports RS232 DB-9 Serial Controller Card,MM-PIO9865-4S_Shenzhen MMUI CO.,Ltd

微信二维码

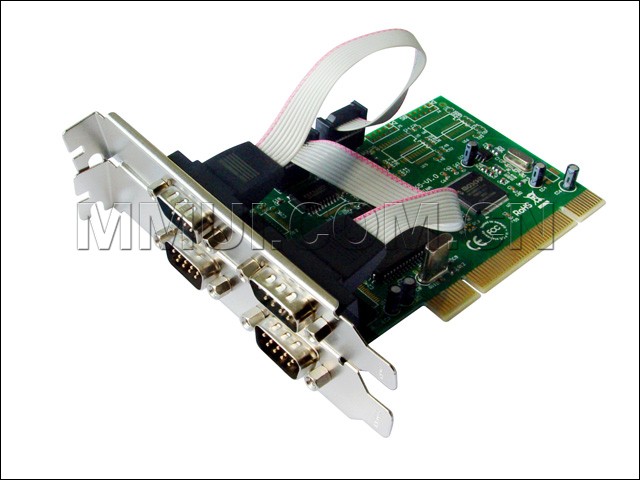

PCI to 4 Ports RS232 DB-9 Serial Controller Card,MM-PIO9865-4S

PCI Specification Revision 2.1 compliant,Transfer rate up to 1 Mbytes/sec,DB9 serial port connector x4,Build-in 16C550 Compatible UART with 16 Byte Transmit-receive FIFO,Plug & Play - Automatically selects IRQ and I/O

Model：

MM-PIO9865-4S

Input Interface：

PCI

Output Interface：

RS232

Motherboard Slot：

PCI

Transmission Rate:

921.6Kbps

Auxiliary Accessories:

Driver CD

Product Size:

120X73mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specification
PCI Specification Revision 2.1 compliant
Transfer rate up to 1 Mbytes/sec
DB9 serial port connector x4
Build-in 16C550 Compatible UART with 16 Byte Transmit-receive FIFO
Plug & Play - Automatically selects IRQ and I/O
address,support PCII/Q sharing
Able to Support 16C650 (32 byte FIFO), 16C750 (64 byte FIFO),
16C850 (128 byte FIFO) Compatible UART (Not all Version)

System Requirement
PC computer with one 32-bit PCI slot
MS Windows 98SE/Me/2000/XP/NT4.0, Linux, DOS
Chipset: Moschip MCS9865
