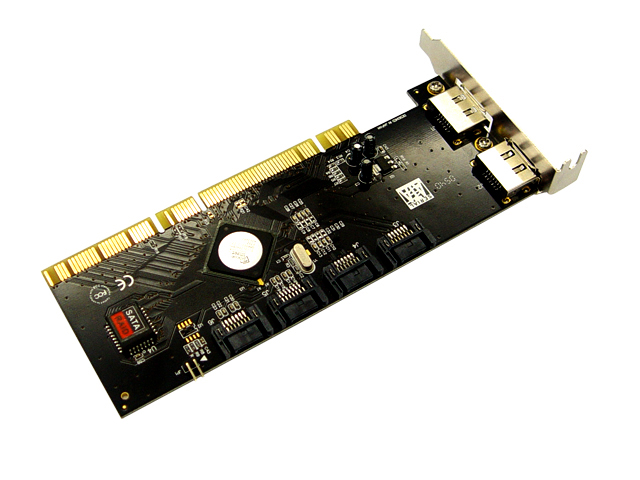

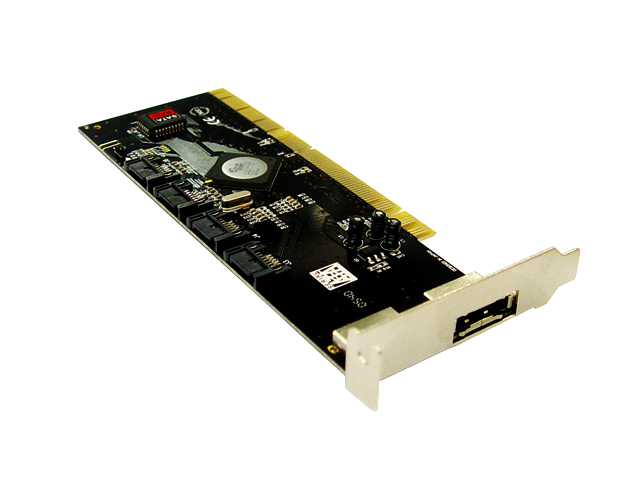

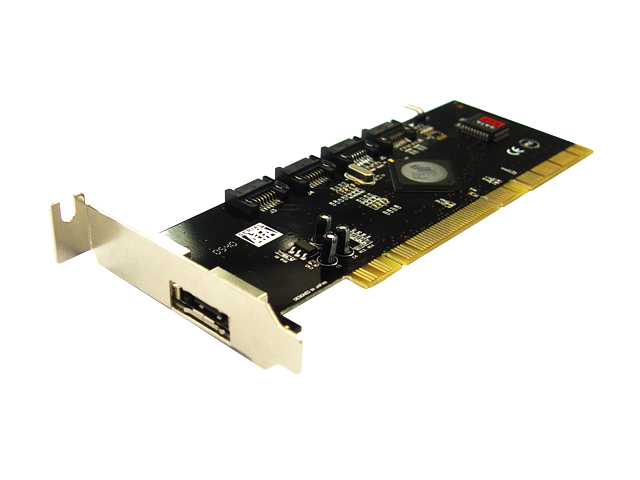

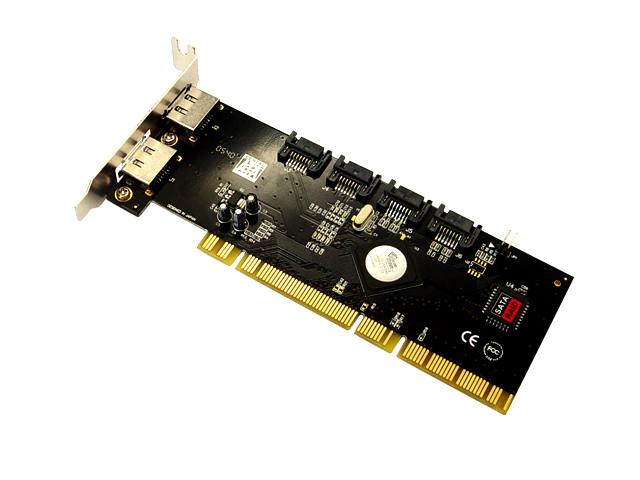

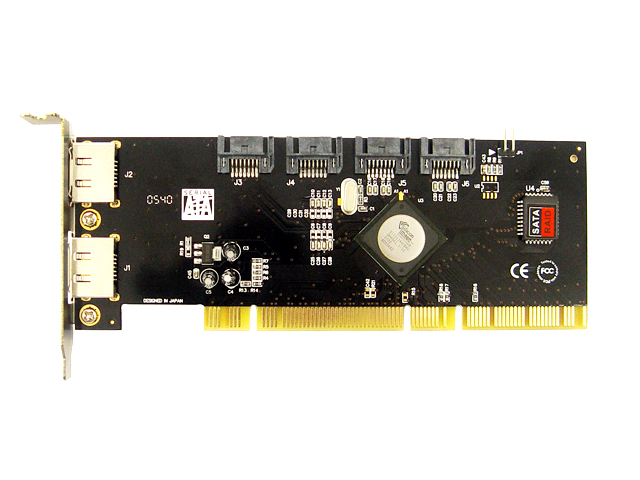

PCI-X SATA II+ESATA Raid Card(2-Ext,2-Int.Ports),MM-SA3124-2E2R

Supports RAID 0,RAID 1 mode and JBOD,2 internal SATA II ports and 2 external ESATA ports,transmision rate can up to 3Gb/s.

Model：

MM-SA3124-2E2R

Input Interface：

PCI-X

Output Interface：

SATA

Motherboard Slot：

PCI-X

Transmission Rate:

3Gbps

Auxiliary Accessories:

Product Size:

163.50x60.9mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

Supports RAID 0,RAID 1 mode and JBOD

2 internal SATA II ports and 2 external ESATA ports,transmision rate can up to 3Gb/s

Detailed specification

Silicon Image Sil3124 chipset
Supports PCI-X 64-bite bus,bus speed is 33MHz/66MHz,PCI standard version 2.3
Supports PCI-X bus main channel
Plug and play
The official driver supports: MS Windows 2000/Xp/2003/Vista 32bit/MS Windows Xp/Vista 64bit /SUSE /REDHAT/Mac OS X 10.4.9, 10.4.10, & 10.5.1 /Fedora /Application Software 32bit/64bit

SATA II
Compatible with SATA norm
Accord with Gen2i,Gen 2m SATA II standard version 1.0
Downward compatible with SATA 1.0 standard

Supports 4 independent SATA port devices,transmision rate up to 3Gb/s

Supports local cohort (NCQ technology), FIS based on switch port multiplier

Available port: 4 internal ports,2 external ports and 2 internal ports w/RAID or w/o RAID

Compatible with eSATA transmission

Raid Arry

Supports RAID 0,RAID 1 mode and JBOD

System requirement
At least have one of the availble 64-bit PCI-X port in computer

Supported operating system

Package Includes
1 x PCI-X SATA Raid card(2-Ext,2-Int.Ports)
1 x User manual

1 x Driver disk
