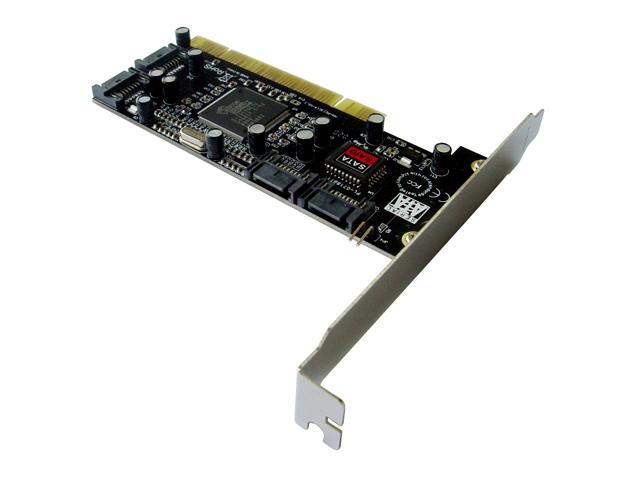

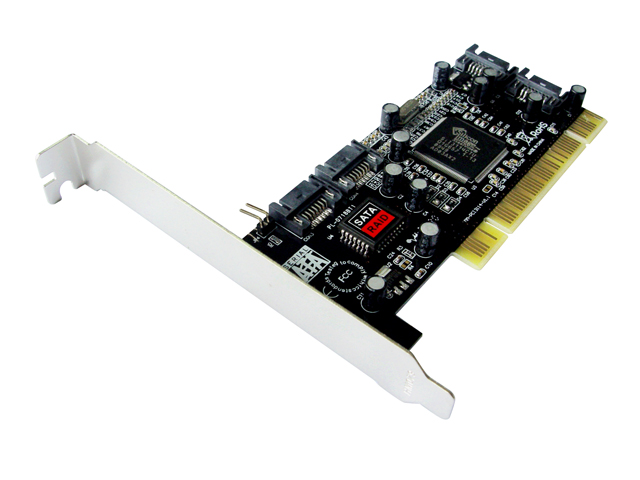

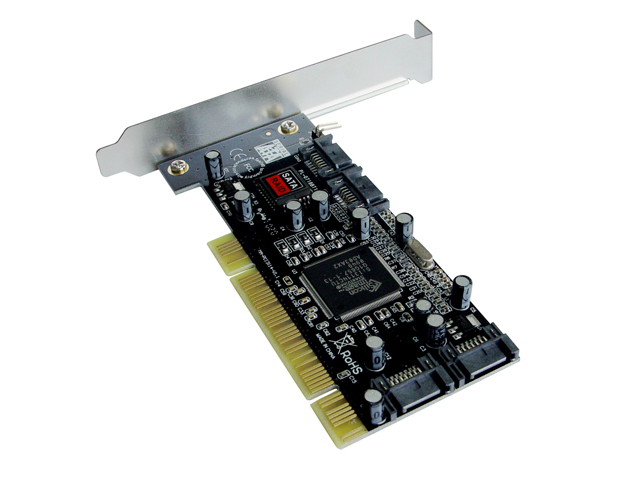

SATA 4x Internal port Controller RAID Card,MM-SA3114-4IR5

Four SATA interfaces,supports RAID 0,1,0+1，5 function,expansion card without array function.

Model：

MM-SA3114-4IR5

Input Interface：

PCI

Output Interface：

SATA

Motherboard Slot：

PCI

Transmission Rate:

6Gbps

Auxiliary Accessories:

SATA Cable,Driver CD

Product Size:

120.04x51.2mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Product features
Four SATA interfaces
MM-SA3114-4IR supports RAID 0,1,0+1，5 function
MM-SA3114-4I expansion card without array function
Application range
150MB/sec(S-ATA Rev1.0 theoretical value)
Descriptions
Supports four hard disks
Supports RAID mode,including RAID 0、1、0+1、5
Supports 137 GB capacity hard disk (48-bit LBA) or above
Peak speed transmission can reach 150 MB per second (1.5 Gbit)
System requirement
MS Windows 98SE/Me/2000/XP/NT 4.0

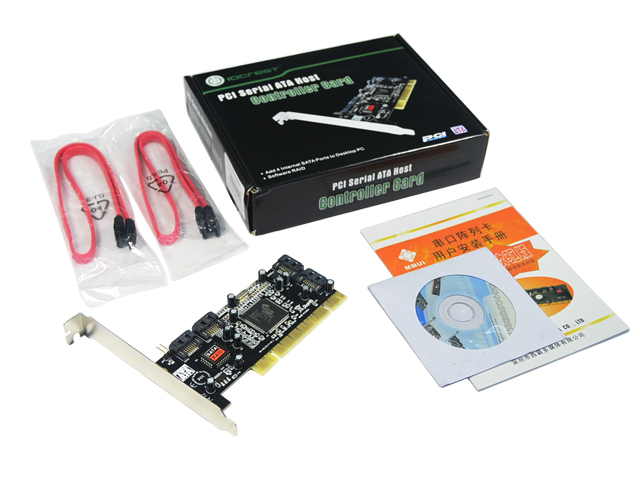

Package list
4 mouth array card
Driver Disk
Instruction Book
4 SATA lines (optional)

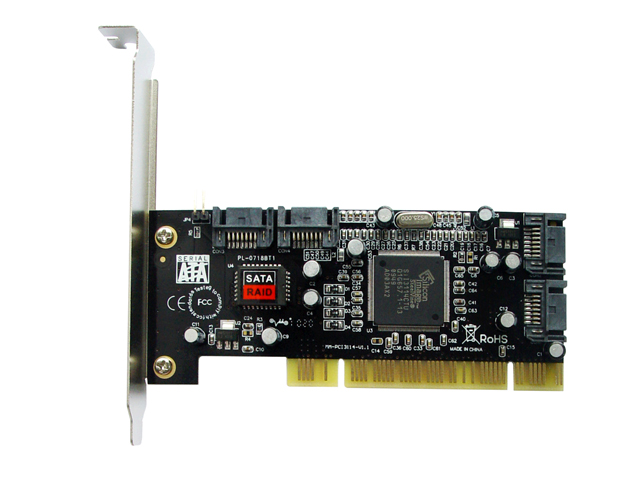

Chipset:SIlicom Image 3114
