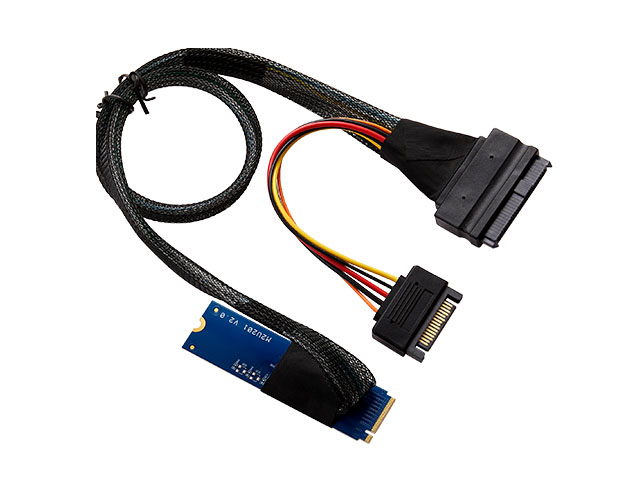

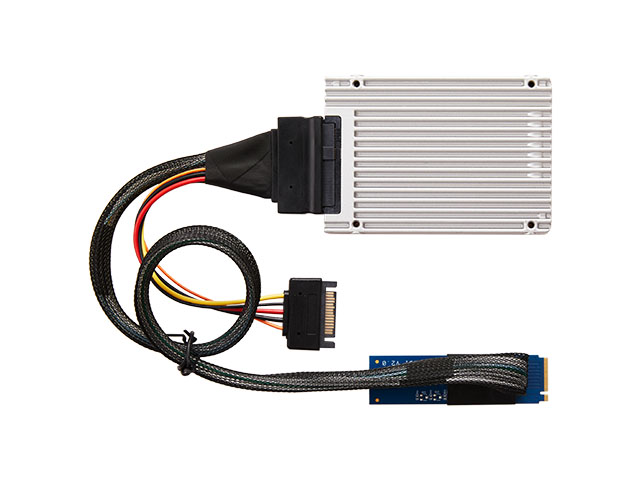

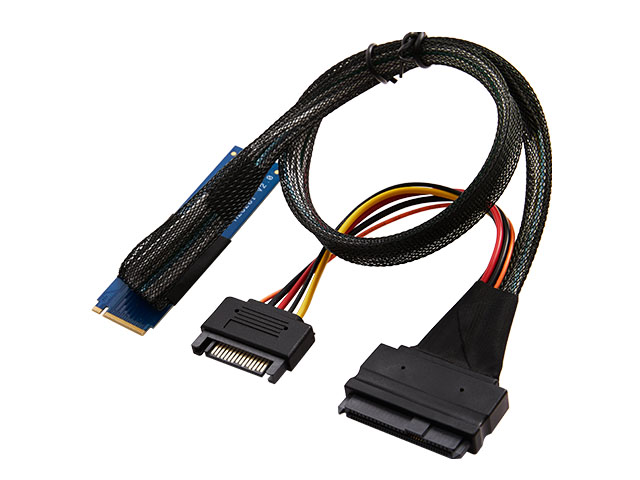

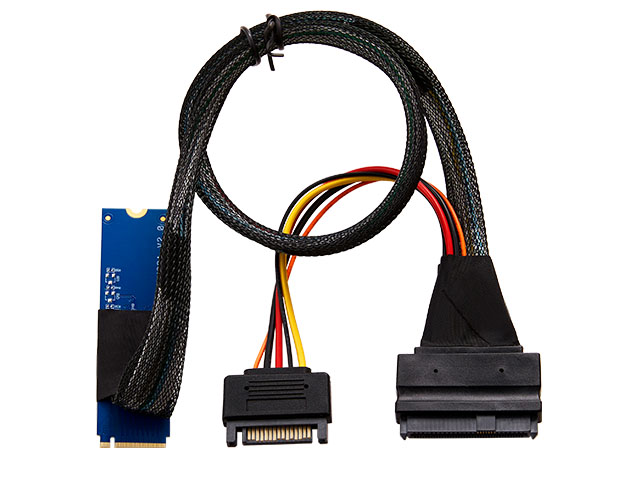

M.2 M-key to SFF-8639(U2/U3) Cable with 15 Pin Female SATA ,IO-M2TO8639L

4 lanes of PCI-e designated,Support for SAS 2.1 and SAS 3.0 standards,Support PCI Express 3.0,Data rate up to 32Gbps,64Gbps,Convert M2 PCIe SSD connection to SFF-8639 connection cable.

Model：

IO-M2TO8639L

Input Interface：

M.2(M Key)

Output Interface：

SFF-8639(U2/U3)

Motherboard Slot：

M.2(M Key)

Transmission Rate:

32/64Gbps

Auxiliary Accessories:

mounting screws

Product Size:

22x80mm,50cm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature

• 4 lanes of PCI-e designated

• Support for SAS 2.1 and SAS 3.0 standards

• Support PCI Express 3.0

• Data rate up to 16/32Gbps

• Convert M2 PCIe SSD connection to SFF-8639(U2/U3) connection cable

• No drivers required for this converter

• PCI Express Card Electromechanical Spec. Rev. 2.0

• PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0

• Compliant with SFF-8639 Specification Rev. 2.0

• SFF-8639(U2/U3) connector

• M2(PCIe Gen4) to SFF-8639(w/15pin sata power) Data Cable

• M2 Dimension: 2280

• RoHS compliant

* M2 PCIe SSD and M2 SATA SSD use the same type of connectors. The adapter is designed to work on only on M2 connectors that are designed for M2 PCIe SSD.

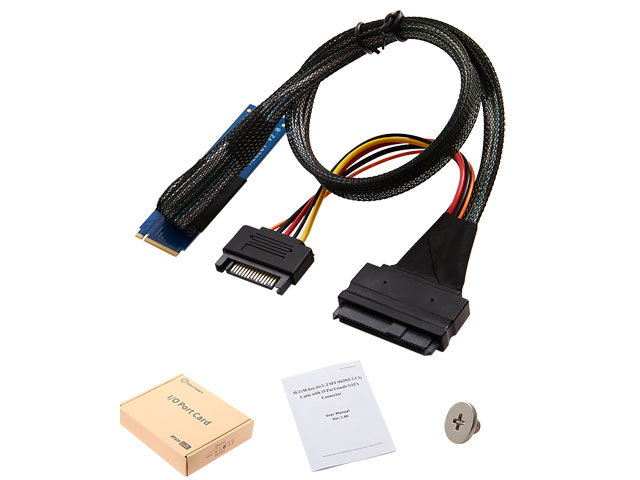

Package Contents

• 1 x M.2 M-key to U.2 SFF-8639 Cable with 15 Pin Female SATA Connector

• 1 x User Manual

• 1 x mounting screws

Note: Contents may vary depending on country/market

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
