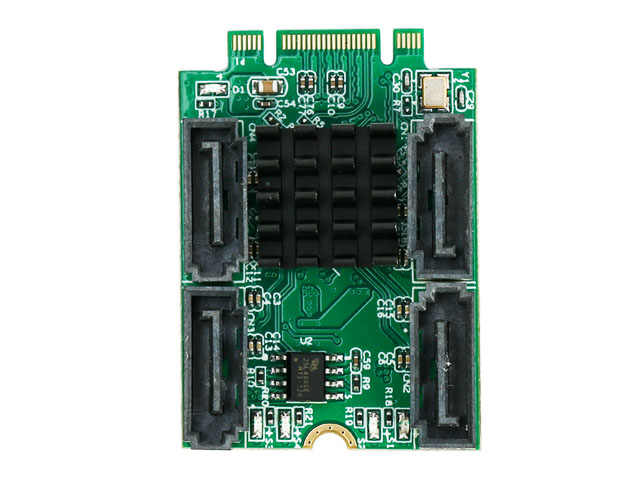

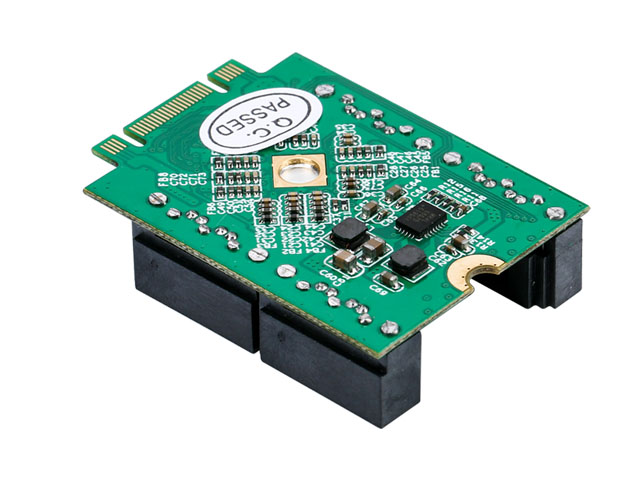

M.2 to 4 Port SATA6G Adapter ,IO-M2F9235-4I

2-Lane M.2 PCI-Express 2.0 interface (B + M Key).Support communication speed of 2.5Gbps and 5.0Gbps.Support IDE programming interface register for the SATA controller.Support AHCI programming interface register for the SATA controller.

Model：

IO-M2F9235-4I

Input Interface：

M.2

Output Interface：

SATA

Motherboard Slot：

M.2

Transmission Rate:

6Gbps

Auxiliary Accessories:

SATA Cable

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Product description：

Features

•2-Lane M.2 PCI-Express 2.0 interface (B + M Key).

•Support communication speed of 2.5Gbps and 5.0Gbps.

•Support IDE programming interface register for the SATA controller.

•Support AHCI programming interface register for the SATA controller.

•Support Message Signaled Interrupt(MSI).

•Compliant with Serial ATA Specification 3.0.

•Support communication speed of 6.0Gbps,3.0Gbps,1.5Gbps.

•Support programmable transmitter signal levels.

•Support Gen 1i,Gen 1x,Gen 2i,Gen 2m,Gen 2x,and Gen 3i.

•Support four SATA Ports.

•Supports Native Command Queuing (NCQ)

•FIS based Port Multiplier

Note: Not Supported RAID on PM

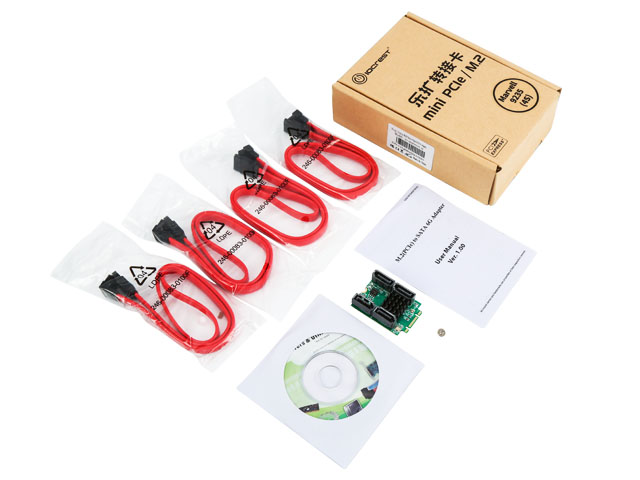

Package Contents

1 x M.2(PCIe) to SATA 6G adapter

1 x User Manual

1 x Driver CD

4 x SATA Cable

Note: Contents may vary depending on country and market.

System Requirements:

•Windows Server 2003,2008,2012,2016

•Windows XP, Vista, 7, 8,8.1,10

•Linux 2.6.x and above

•Mac OS 10.3 or later version

•Linux distributions contain Inbox drivers for AHCI devices.The drivers are installed automatically during the Linux OS installation.
