M.2 to 4 Port SATA 6G RAID Adapter(PCIe 2.0) ,IO-M2F9230-4IR

Feature
•2-Lane M.2 PCI-Express 2.0 interface (B + M Key).
•Support communication speed of 2.5Gbps and 5.0Gbps.
•Support IDE programming interface register for the SATA controller.
•Support AHCI programming interface register for the SATA controller.
•Support Message Signaled Interrupt(MSI).
•Compliant with Serial ATA Specification 3.0.
•Support communication speed of 6.0Gbps,3.0Gbps,1.5Gbps.
•Support programmable transmitter signal levels.
•Support Gen 1i,Gen 1x,Gen 2i,Gen 2m,Gen 2x,and Gen 3i.
•Support four SATA Ports.
•Supports Native Command Queuing (NCQ)
•Supports Hardware RAID 0, 1, 10 and HyperDuo
•HyperDuo mode supports Safe mode (Mirrored Protection) and Capacity mode(Cost-Optimized)
•FIS based Port Multiplier
Note: Not Supported RAID on PM
System Requirements
•Windows Server 2003,2008,2012,2016
•Windows XP, Vista, 7, 8,8.1,10
•Linux 2.6.x and above
•Mac OS 10.3 or later version

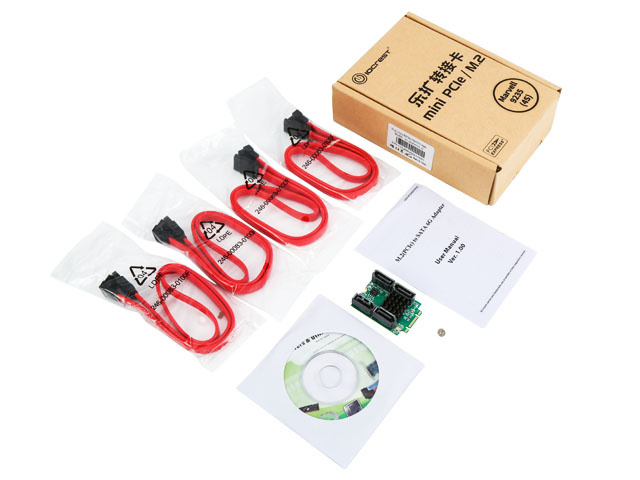

Package Content
1 x M.2(PCIe) to SATA 6G adapter
1 x User Manual
1 x Driver CD
4 x SATA Cable
Note: Contents may vary depending on country and market.

Related Downloads

Driver Download
