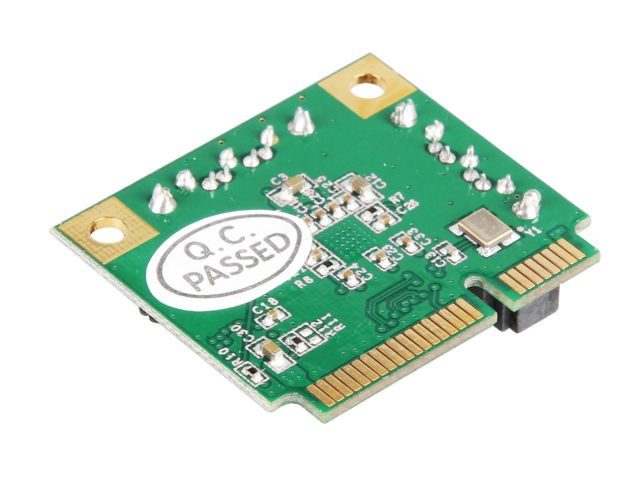

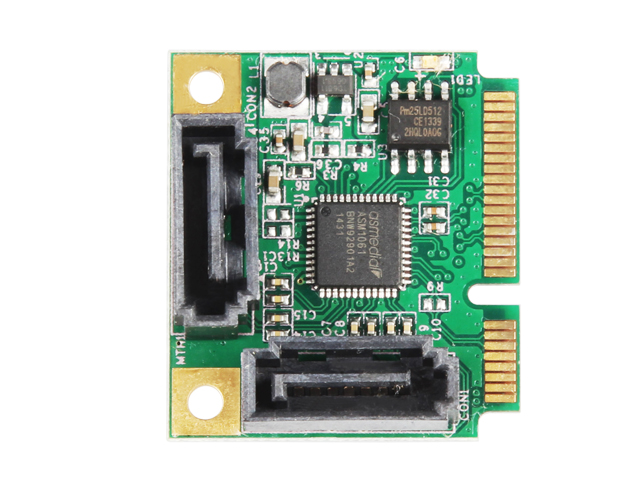

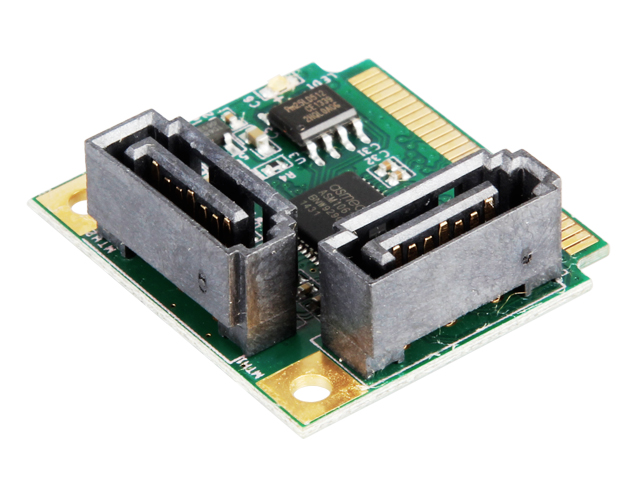

Mini PCI-E SATA 3.0 Controller Card ,IO-MPCE1061-2I

A native PCI-Express single chip design,Supports two SATA 3.0 6Gbps ports.Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps,Compatible with PCI-E Mini Card Electromechanical specification revision 1.2

Model：

IO-MPCE1061-2I

Input Interface：

Mini PCIe

Output Interface：

SATA

Motherboard Slot：

Mini PCIe

Transmission Rate:

6Gbps

Auxiliary Accessories:

SATA Cable

Product Size:

22X30mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
A native PCI-Express single chip design
Supports two SATA 3.0 6Gbps ports
Specification
General
Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0a
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Serial ATA (SATA) Interface
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
Supports SATA 3.0 transfer rate up to 6Gbps
Backward compatible with SATA-II (3Gbps) and SATA-I (1.5Gbps) specification
Supports Gen1m and Gen2m SATA PHY
Supports Native Command Queue (NCQ) and Port Multiplier
Supports Hot Plugging on SATA port
System Requirement
Computer system with one Mini PCI-Express slot available
Windows? 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

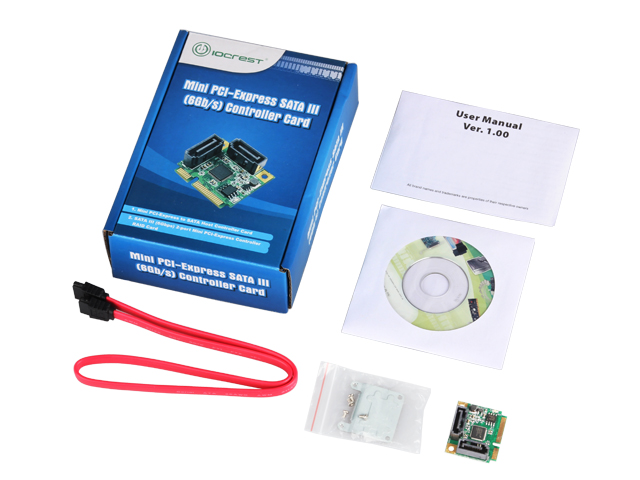

Package Content
Mini PCI-Express to SATA Host Controller Card x 1
User Manual x 1
Software Driver CD x 1
SATA Cable x 1
Half size to full size bracketx 1
