M.2 (M-key) to Oculink SFF-8612 Adapter Card,IO-ADA86122_Shenzhen MMUI CO.,Ltd

微信二维码

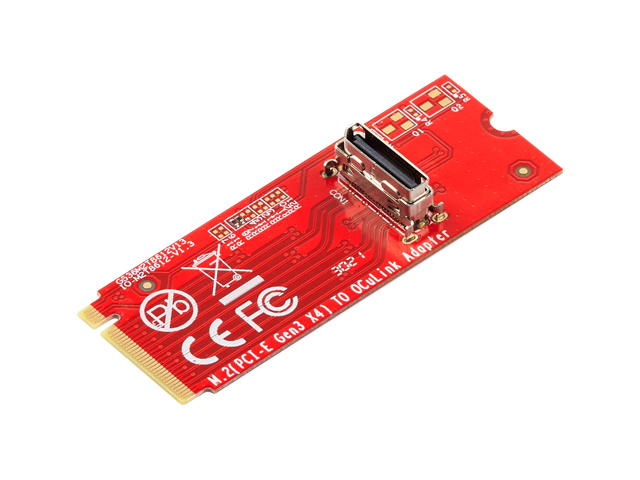

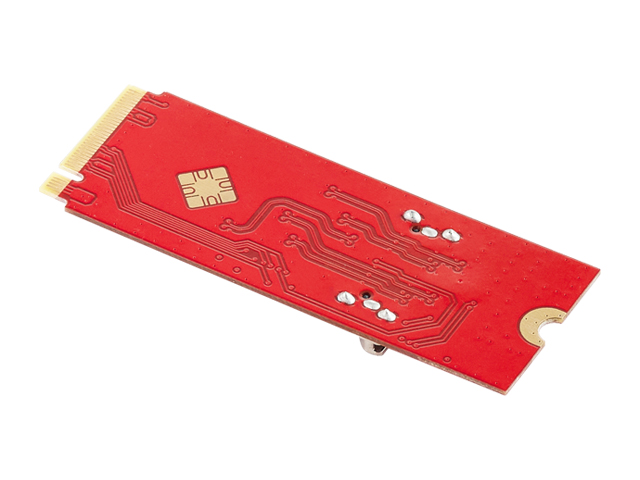

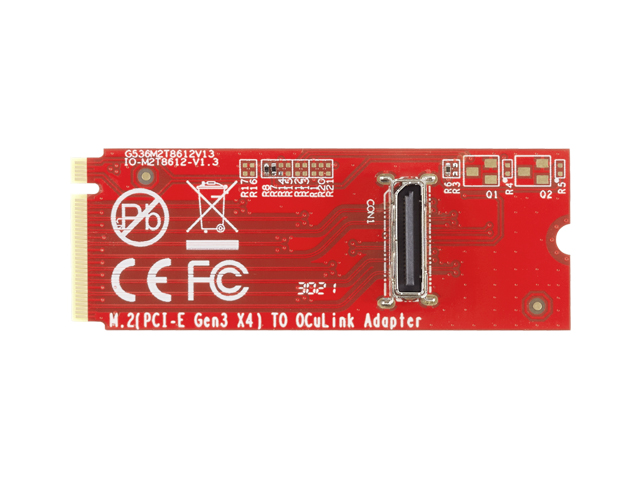

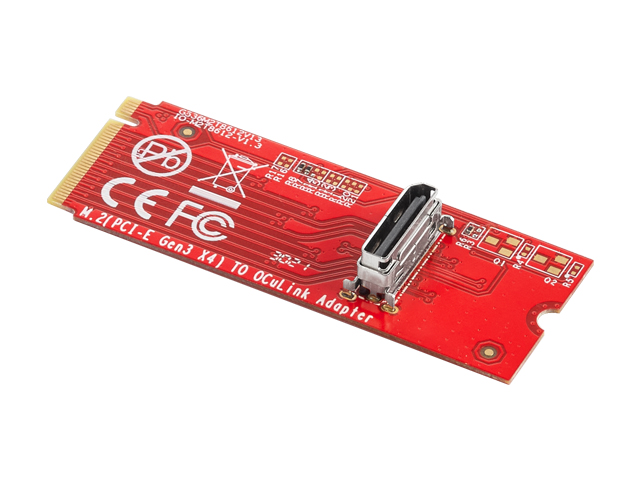

M.2 (M-key) to Oculink SFF-8612 Adapter Card,IO-ADA86122

Oculink(SFF-8612) to PCIe convert,Build in SFF-8612 connector, pin-out defined by PCIe.Compliant with NVME Express 1.2a.Support PCI Express Base Specification Rev 3.0

Model：

Input Interface：

M.2

Output Interface：

Oculink(SFF-8612)

Motherboard Slot：

M.2

Transmission Rate:

24Gb/s

Auxiliary Accessories:

Oculink SFF-8611 to SFF-8639 Cable

Product Size:

22x60 mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Oculink(SFF-8612) to PCIe convert

• Build in SFF-8612 connector, pin-out defined by PCIe.

•Compliant with NVME Express 1.2a.

•Support PCI Express Base Specification Rev 3.0

•Support SSD_Form_Factor_Version1_a

•Compliant with SFF-8612 Specification Version 3.5.

System Requirement

• Windows 7,8,8.1,10 or later

• UEFI 2.3.1 or later

Package Content
• 1 x M.2 M-key to Oculink(SFF-8612) Adapter Card
• 1 x User Manual

• 1 x Oculink SFF-8611 to SFF-8639 Cable
