Lekuo Mini PCIe to 2-Port SATA 6G Controller Card

Model

IO-MPE40150

Interface

Mini PCI Express Rev. 1.2, PCIe Base Spec 3.1a

Bus Type

PCI Express, 1 lane

SATA Ports

2 x SATA III (6.0 Gbps, backward compatible with 3.0 Gbps / 1.5 Gbps)

Transfer Rate

6.0 Gbps / 3.0 Gbps / 1.5 Gbps

Port Multiplier

Supported (command-based and FIS-based)

Modes

Supports AHCI mode and IDE programming interface

Features

Native Command Queuing (NCQ), SATA link power saving, hot-plug detection, staggered spin-up

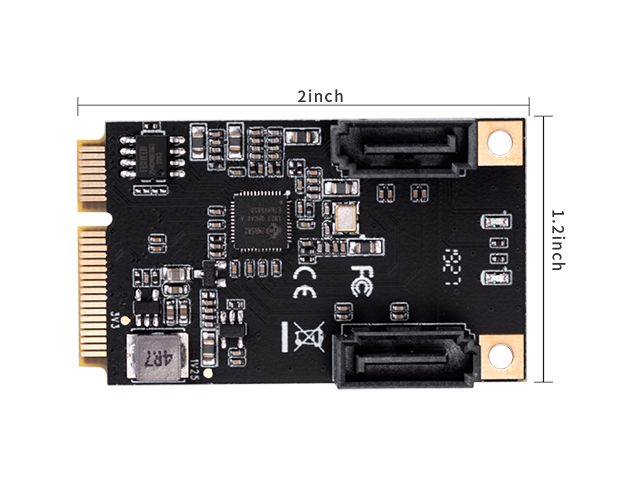

Dimensions

50 × 30 mm

OS Compatibility

Windows 7/8/10 (x86/x64), Linux-based OS

Accessories

1 × Mini PCIe to 2-Port SATA Card, 1 × User Manual, 1 × SATA Cable

Features
• Mini PCI Express, Rev. 1.2
• Supports one lane of PCI Express.
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports 2 SATA port.
• Complies with SATA Specification Revision 3.2.
• Supports command-based and FIS-based for Port Multiplier.
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.

System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
• Linux-base OS

• UEFI

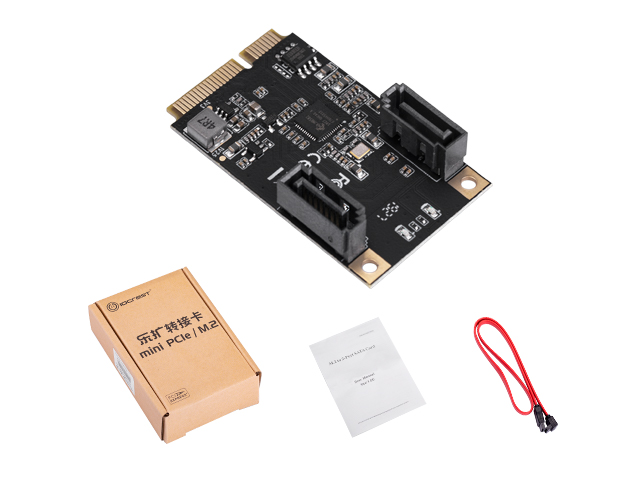

Package Contents
• 1 × Mini PCIe to 2-Port SATA Card
• 1 × User Manual
• 1 × SATA Cable
• 1 × Driver CD
Note: Contents may vary depending on country/market
