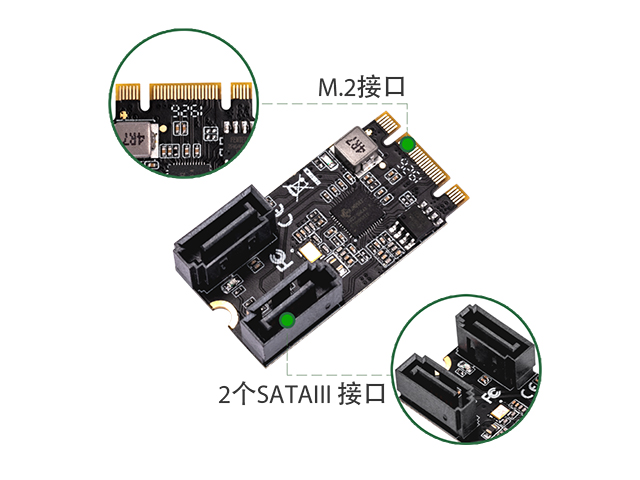

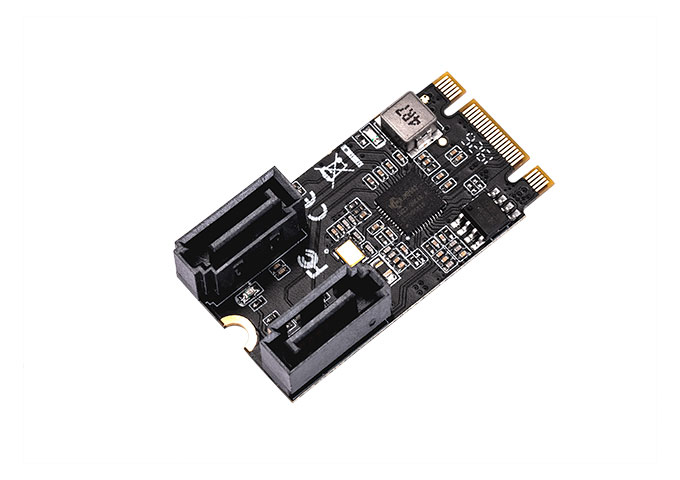

M.2 to 2 Port SATA6G Card,IO-ADA40149

Supports one lane of PCI Express.Complies with PCI Express Base Specification Revision 3.1a.Supports PCIe link layer power saving mode.Supports 2 SATA port.

Model：

IO-ADA40149

Input Interface：

M.2 B+M Key

Output Interface：

SATA

Motherboard Slot：

M.2 B+M Key

Transmission Rate:

6Gbps

Auxiliary Accessories:

SATA Cable

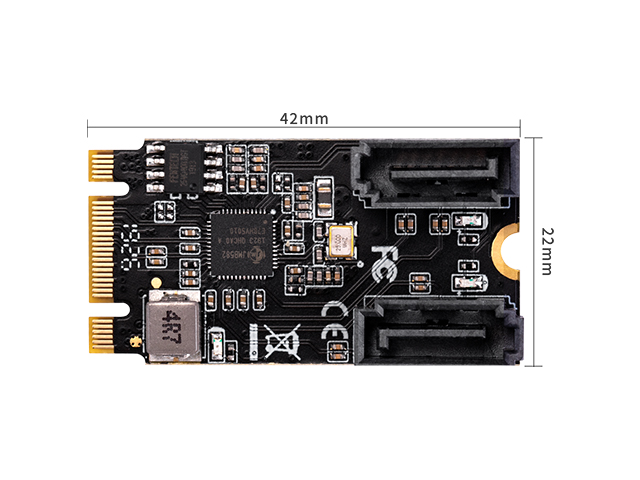

Product Size:

42x22mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Supports one lane of PCI Express.
• Complies with PCI Express Base Specification Revision 3.1a.
• Supports PCIe link layer power saving mode.
• Supports 2 SATA port.
• M.2 B+M Key interface.
• Complies with SATA Specification Revision 3.2.
• Supports command-based and FIS-based for Port Multiplier.
• Supports AHCI mode and IDE programming interface.
• Supports Native Command Queue (NCQ).
• Supports SATA link power saving mode (partial and slumber)
• Supports SATA plug-in detection capable.
• Supports drive power control and staggered spin-up.
• Supports SATA Partial / Slumber power management state.
System Requirements
• Windows 7 (X86/X64)
• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)
• Linux-base OS

• UEFI

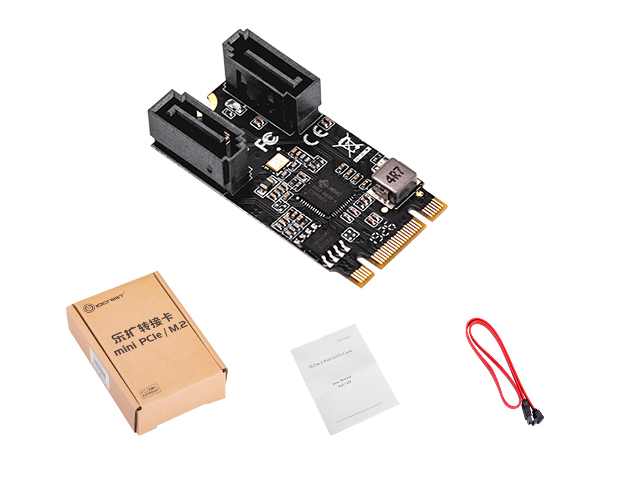

Package Contents
• 1 × M.2 to 2-Port SATA Card
• 1 × User Manual
• 1 × SATA Cable

Note: Contents may vary depending on country/market
